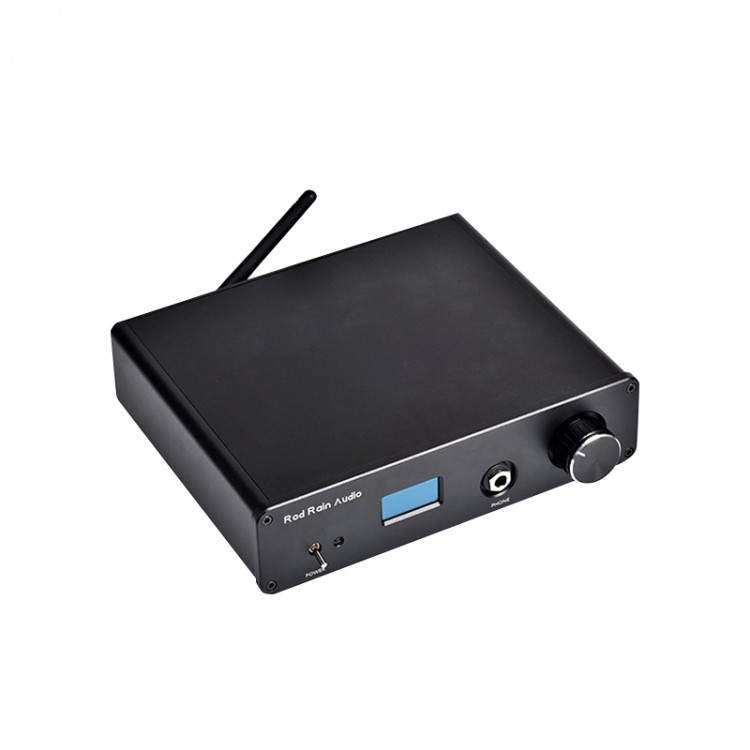

DA10 700MWx2 Headphone Amplifier BT5.1 Bluetooth DAC ES9038Q2M for LDAC without USB Audio Interface
Features:
- Decoding via two parallel ES9038Q2M
- Built-in custom gold-plated crystal oscillator
- All aluminum casing and exquisite appearance for batter sound quality; professional welding process ensures quality
- Product size: 25 x 17 x 5.5cm/9.8 x 6.7 x 2.2" (LxWxH)
- Powerful filter array: Japanese special filter capacitor array for high-speed large-capacitor audio, featuring low-resistance and high-speed
- Dynamic balance output: 400V 2.2uf super capacitor provides balanced power, high dynamic range, the lowest frequency played, and stable high frequency sound performance
- Audiophile op amp group: Japanese 2068DD op amp group (dual op amp); pluggable op amp is convenient for users to upgrade
- Optical and coaxial inputs are supported. With digital isolation and dual relay output protection. PCM 44.1KHZ~192KHZ/16~24BIT
- QCC5125 BT5.1 module
- Linear power supply achieves pure energy and clean sound; makes the sound more natural and transparent
- Support for aptX HD, aptX Adaptive, and LDAC
- Symmetrical circuit: Each channel has an ES9038Q2M decoding chip, which is output in parallel. With greater resolution and channel separation, its performance far exceeds that of most machines on the market. Its sound field, density, clarity and transparency have been doubled
- Built-in linear transformer
- Balanced, RCA outputs and 6120A amp outputs
Key Parameters:
- Brand: Rod Rain Audio
- Power: ≤10W
- Decoder chip: ES9038Q2Mx2
- Bluetooth chip: QCC5125
- Front-end op amp: 2068DD*2pcs
- Back-end op amp: 2068DD*1
- Headphone amp chip: 1620A
- Input frequency: 44.1K, ~192K, 16-32BIT automatically identify DSD 64~ 512
- Bluetooth indicators: for APTX Adaptive, APT X HD, LDAC, 24bit 96khz
- Single-ended rated output: 2.5Vrms
- Balanced rated output: 5.6Vrms
- Frequency response: 5-20KHz±0.1db
- Total Harmonic Distortion: -114dB
- Dynamic range: 130dB
- Amp power: 700mW*2 at 32Ω; 156mW*2 at 300Ω
- Dimensions: 25 x 17 x 5.5cm/9.8 x 6.7 x 2.2" (LxWxH)
- Weight: about 1.3KG/LB
Package Included:
- 1 x DAC Headphone Amp
- 1 x Antenna
- 1 x Remote Control
- 1 x Power Cord
