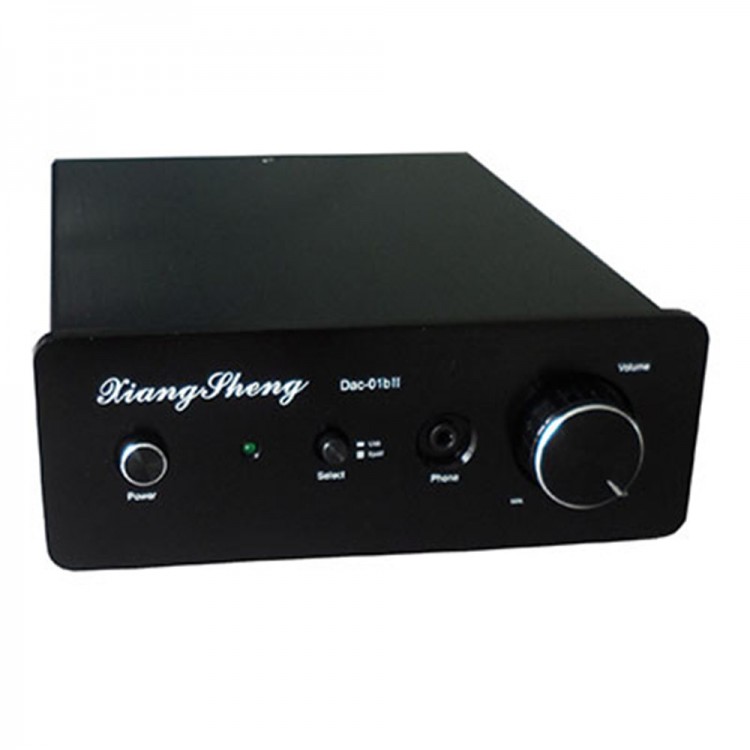

DAC-01BII HIFI Audio Decoder Headphone Amplifier Coaxial Optical Fiber USB Asynchronous XMOS
Features:
- Digital and analog winding independently,rectifier and filter voltage, with heat sink
- Built-in transformer
- Adopt chip LM4863 or XPT4863
- Can adjust tune slightly
- Adopt chip AKM4113 receiver, AKM4490 decoder
- Adopt active crystal oscillator
- USB chip as sub card for upgrading, sub card is 7022
Specification:
- Model: DAC-01BII Decoder + Headphone Amplifier
- Frequency response: 20Hz-30KHz
- Support 16bit, 20bit
- Support sampling rate:44.1kHz/48kHz/88.2kHz/96kHz/176.4K/192K
- Output level: >2000mV
- Dynamic range: 117db
- Input resistance: Analog 100KOhm,digital 75Ohm
- Headphone output resistance: 32-600Ohm
- Circuit output impedance: 600 ohm
- Input voltage: 110V 220V/50Hz
- With OPA2604AU,SOP to DIP pin (can be upgraded)
- Color: Silver/black (delivered randomly,or leave us a message about the color you want.)
Package List:
- 1 x DAC-01BII HIFI Audio Decoder Headphone Amplifier
