DAC-05A MK II QCC5125 Bluetooth DAC Hifi USB DAC Balanced Tube DAC Dual PCM1794A with Silver Panel

DAC-05A MK II QCC5125 Bluetooth DAC Hifi USB DAC Balanced Tube DAC Dual PCM1794A with Silver Panel

Description:
1. Two high-quality transformers made in China are adopted. They use imported Z11 iron core and wound around with oxygen-free copper wire, with isolation shielding layer. They have high power, compared with internal small transformers using a plastic case.
2. Using the latest XU208 chip! The speed of USB interface for Xmos-Xu208 is twice the speed of U8.
3. Its USB port also supports mobile phones for Android with OTG function (some mobile phones are not supported). When used with a camera kit, it also supports for Apple mobile phones and Apple Mac system driver-free.
4. Tube output uses Russian 6H3n vacuum tubes.

Features:
- Balanced decoder with genuine driver for XMOS, dual PCM1794A decoding chip, 4pcs active crystal oscillators, 7pcs dual op amps, and dual transformer
- USB driver: XU208 genuine driver
- Digital receiver decoding chip: AK4113 dual-core PCM1794A
- Can be connected to the USB port of a computer: PCM 24bit 192K
- Support OTG for mobile phones: PCM 24bit 192K
- Coaxial, optical and BNC: 24Bit 192K
- Op amps and vacuum tube: 4pcs LME49720NA, 3pcs OPA2604AU and Russian 6H3n vacuum tubes
- Bluetooth module: BT5.1 QCC5125
- Support SPDIF output: 24Bit 192K
- Transformers: two
- Screen: None
- Support for LDAC and APTX-HD, enabling lossless transmission

Specifications:
- Product size: 330 x 220 x 70mm/13 x 8.7 x 2.8" (WxDxH) (excluding the sizes of knob, foot and connector)
- Frequency response: 20Hz-35KHz
- SNR: normal port output: 110dB
- Harmonic distortion: normal port output: <0.001%
- Supports digital streaming below 24bit
- Sampling frequency: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz and 192KHz
- Output level: balanced output 9V and unbalanced output 2V
- Dynamic range: balanced output greater than 120dB and unbalanced output greater than 110dB
- Input impedance: digital interface/75 ohms
- Line output impedance: 600 ohms
- Input voltage: 110V or 220V/50Hz
- Net weight: 2.5Kg/5.5Lb

Compatibility:
1. The USB input of the decoder can be connected to your computer USB output and the OTG output of some mobile phones.
2. The coaxial and optical input ports of the DAC can be connected to the coaxial and optical output ports of DVD, CD player, digital player, set-top box and TV.
3. Mobile phones and computers with Bluetooth can be connected through the Bluetooth of the decoder.

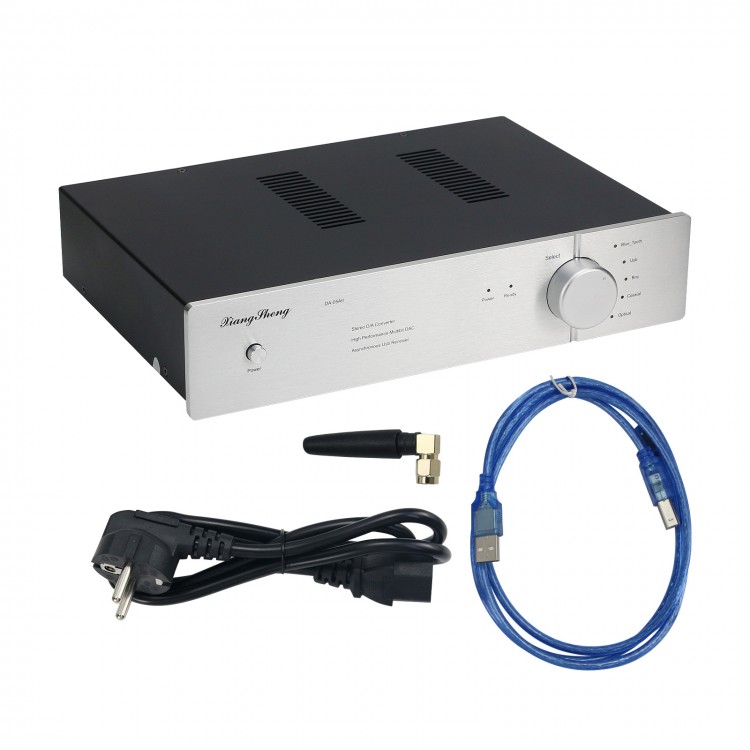

Package Included:
- 1 x DAC
- 1 x Bluetooth Antenna

Note:
- The default voltage is 220V. If you need a 110V DAC, please leave a note while purchasing.
- Pictures are for demonstration purposes only. Due to the inventory and procurement of components, the components pictured may be replaced with the ones of the same quality. Therefore, the actual shape, color and brand of components we use may be different from the ones pictured. Please make sure that you don't mind before purchasing. Thank you!
