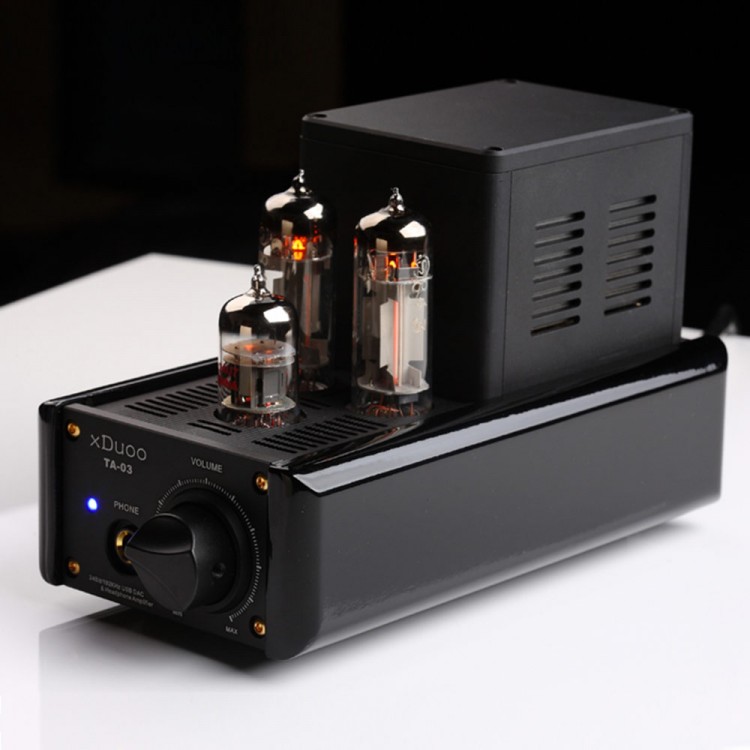

DAC + 12AU7 Tube Headphone Amplifier XDUOO TA-03 24Bit 192KHz WM8740 USB
Description
TA-03 is a small high fidelity desktop tube amplifier with USB DAC functions. USB accepts up to 24Bit/192KHz high resolution audio signal. It adopts 12AU7 tube for pre-amp, 6C19 tubes each channel for post-amp, also adopts capacitive coupling output to dispense the limit of output transformer and make the frequency response of the amplifier more close to the limit of the tube amplifier. While the power supply adopts the high-quality E type transformer with low noise and low leakage flux specially for transistor amplifiers. With the integrated design of power supply, switch, and socket, the machine is very safe and convenient to use when plug in and turn on the power.
Parameter:
- Power Supply: ~220V/~110V
- Output Power: 500mW(600/300Ω load)
- 300mW(150Ωload)
- Compliant OS: Win XP,Vista,Win7,Win8 (must install driver)
- MAC OS X (do not need to install drivers)
- Supported sampling: USB input: Maximum 192kHz/24bit
- Frequency Range: Audio In:10Hz~100KHz(±0.5dB)
- USB In: 20Hz~20KHz(±0.5dB)
- Gain: +13dB
- THD+N: 0.09% (1KHz)
- S/N: 110dB
- Suitable Earphone Impedance: 60Ω-600Ω
- Size: 215*130*100mm
- Weight: 2.50Kg
Features
- Using cherry wood for its lateral plate makes it look very upscale.
- Adopting ELNA,NICHICON,RUBYCON and other famous capacitors.
- With 1 way Single-Ended RCA input, it can be used as independent headphone amplifier
- Adopts high-performance D/A chip: WM8740*2, can supports up to 192KHz/24Bit I2S signal
- It adopts 12AU7 tube for pre- amp, 6C19 tubes each channel for post- amp, making sounds soft and attractive.
- Adopting the high-quality E type transformer with low noise and low leakage flux specially for transistor amplifiers.
- Adopting capacitive coupling output to dispense the limit of output transformer and make the frequency response of the amplifier more close to the amplifier limit of the tubes.
- Adopts XMOS chip for USB signal input, PC jitter-free USB Audio with Asynchronous Transfer Mode, provides I2S interface for decoding, can support up to 192KHz/24Bit USB signal, support WASAPI,ASIO,KS Kernel Stream Mode
Package List:
- 1 x DAC + 12AU7 Tube Headphone Amplifier
