| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $35.09 | $34.38 | $33.30 | $31.87 | Contact US |

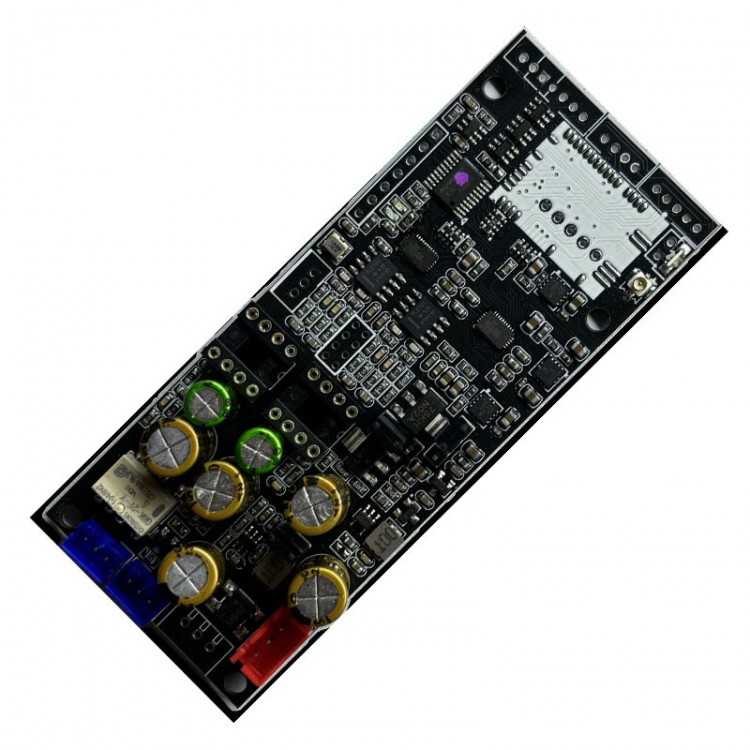

DAC Board Audio Decoder Board (without Bluetooth) w/ Dual Parallel ES9038Q2M for WAV FLAC APE MP3
Features:
- The upgraded version makes it more useful for you to DIY
- Power supply design adopts a jumper cap for DC-DC5V and linear power supplies. And it adopts a design which is compatible with 7805 voltage regulator IC
- Positive and negative voltage design is available, and a jumper cap is used for internal boost and external power supply. It is flexible to use
- DC and AC share one input socket
- The internal power supply adopts original low-noise LDO for TI
- Optical fiber, coaxial and IIS inputs (an expansion board should be added for USB drive function)
- Compatible with volume switch and input channels can be switched
- With a sound card socket (PCM 24bit 96K)
- With dual parallel ES9038Q2M. One for left channel, and one for right channel
- Supports USB drive playback function, WAV, FLAC, APE and MP3, and 24BIT 48K sampling
Package Included:
- 1 x Set of DAC board
Packaging Details:
- Weight: 0.25KG
Note:
- This version comes without a Bluetooth chip. And the pictures below are for demonstration purposes only. Thank you for your understanding!
