DAC Decoder HIFI ES9038Q2M *2 USB DAC XMOS XU208 DSD512 32Bit/ 768Khz OPA1612 USB/OPT/COAX Input Black

DAC Decoder HIFI ES9038Q2M *2 USB DAC XMOS XU208 DSD512 32Bit/ 768Khz OPA1612 USB/OPT/COAX Input Black

Description:

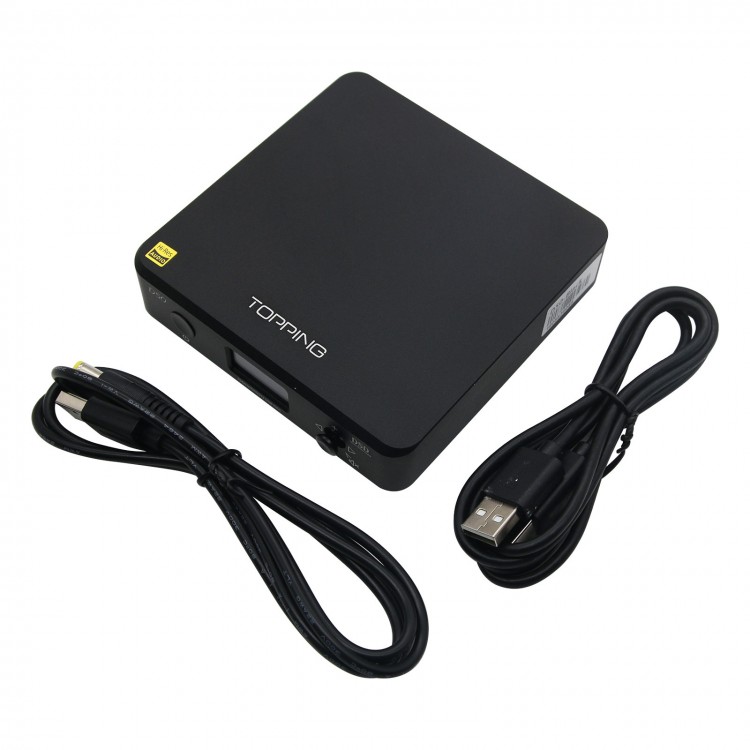

This D50 is a high performance desktop DAC with USB, coaxial，optical input and Line Out output. Besides, D50 is equipped with a OLED screen to show the detail information of the playing.

D50 use XMOS (XU208) + 2 x ES9038Q2M +3 x OPA1612 for DAC, in addition, D50 use customized drivers (Win 7 or above) from Thesycon, all these factors makes D50 support 32bit/768kHz and DSD512 (Native) and all inputs can achieve DSD source input (coaxial and optical support PCM24bit/192kHz and DSD64) and Auto on/off. Of course, D50 has Hi-Res Audio.

Features:
- Customized Thesycon driver + XMOS XU208 + 2 x ES9038Q2M + 3 x OPA1612
- Support Highest DSD512 and PCM32bit/768kHz
- DSD source input and Auto on/off for all inputs
- Compatible with IOS, Android, Windows (7 or above), MAC
- Aluminum unit body

Device Attributes:
- Measured: 11.9cm x 11cm x 2.6cm
- Weight: 480g (Unit only)
- Color: Black
- Power: DC5V/1A
- Input: USB/OPT/COAX
- Output: AUX
- Display: OLED

Parameters:
- THD+N @A-weighting: <0.0004% @ 1kHz
                                            <0.0005% @ 20Hz-20kHz
- SNR @A-weighting: 122dB @ 1kHz
- Frequency Response: 20Hz-20kHz (±0.1dB)
- Output Level: 2Vrms@0dBFS
- Noise @A-weighting: <2uVrms
- Channel Crosstalk: -116dB @1kHz
- Channel Balance: 0.09dB

Specifications:
- USB IN: 44.1kHz-768kHz/16Bit-32Bit
                  DSD64-DSD512 (Native)
                  DSD64-DSD256 (Dop)
- OPT/COAX IN : 44.1kHz-192kHz/16Bit-24Bit, DSD64（Dop）

Package Included:
- 1 x D50
- 1 x USB Cable
- 1 x DC Cable
- 1 x User Manual
- 1 x Warranty Card
