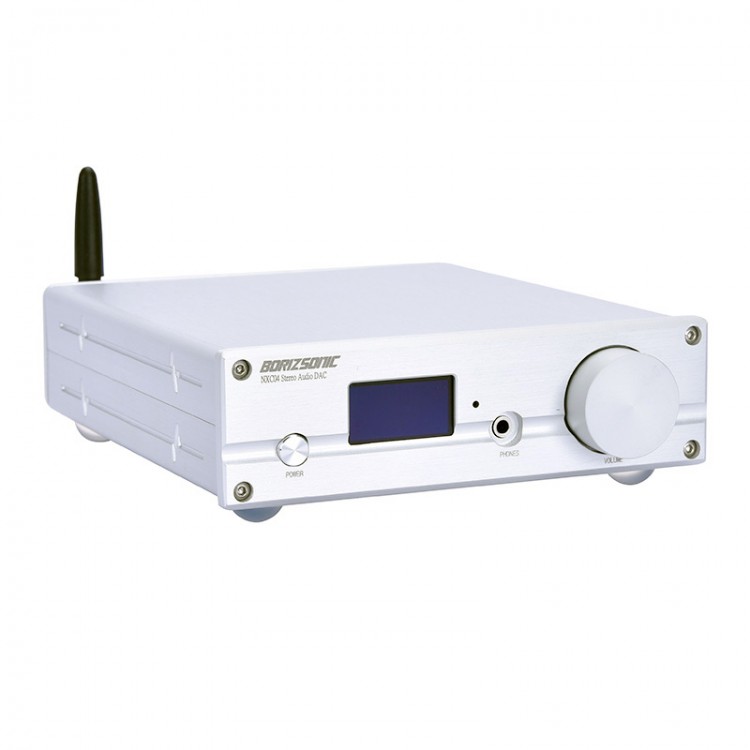

DAC Headphone Amplifier Audio DAC SU8 AK4493EQ Bluetooth 5.0 DSD NXC04 Silver

Availability: In stock, usually dispatched in 1 business day

  • Price:$150.29
  • Price in reward points: 1503 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $147.28 $144.28 $139.77 $133.76 Contact US
Quantity:

DAC Headphone Amplifier Audio DAC SU8 AK4493EQ Bluetooth 5.0 DSD NXC04 Silver

Features:

- OLED display screen
- Compatibility: Supporting Bluetooth, USB, coaxial, and fiber-optical inputs, it is compatible with the majority of digital electronic products on sales. It can work with your projector, TV, computers, and mobile phones.
- Bluetooth 5.0: Advanced CSR8675 Bluetooth 5.0 chip supports APTX and APTX-HD.
- Purer Sound: With OSRD technology, our AK4493EQ chip can cut down excessive noise for better and clearer sound. Compared with equalizer, it can provide us with various experiences without distortion.
- XMOS XU208 USB Module: The highest solution is up to DSD256.
- ARM Microcontroller: ARM 32-bit core is Cortex-M3 with operating frequency up to 72MHz. Featuring a low power consumption, analog to digital converter - double sampling and hold function - temperature sensor
- XILINX Digital Chip: With XILINX switching, digital shaping technology is added to improve the jitter of the clock signal, and the details are better, and the switching of the pop can be eliminated.
- AKM Digital Receiver Chip: coaxial and fiber inputs are for more natural sounds.
- DA101C Digital Isolation Module: Eliminate noise and protect the device from being damaged by high voltages.

Download DAC Drive and Setting Instructions here:

https://pan.baidu.com/share/init?surl=EBHkJR44y8Gr-en_s-KI8A
Code: 40rg

Specifications:
- Color: Silver
- Model: NXC04
- Output Interface: 2.0 stereo RCA output / 3.5mm headphone output
- USB Input: PCM: 44.1KHz-384KHz/16-32Bit    DSD64-DSD256/DOP/Native
- Coaxial/Fiber: PCM: 44.1KHz-192KHz/16-24Bit  DSD64/DOP
- Bluetooth Input: Bluetooth 5.0, support Apt-x/Apt-X-HD
- THD+N: <0.0005%1KHz    <0.0006%@20-20KHz
- Receive audio: USB/SD, BLUE, COAX, OPT
- SNR: >124dB@1KHz
- Frequency Response: 20-20KHz/+-0.35dB
- Headphone Amplifier Power: 700W*2@32Ω, 156mW*2@300Ω
- Dimensions: 150 x 44 x 169mm
- Weight: about 1.5kg

Package Included:
- 1 x Finished Decoder
- 1 x Power Adapter
- 1 x USB Cable
- 1 x Remote Control

Note: Battery for the remote control is not included.
