DAC-Q6 HiFi DSD Decoder Bluetooth 5.0 DAC Lossless Headphone Amplifier DAC USB Coaxial Optic Fiber

DAC-Q6 HiFi DSD Decoder Bluetooth 5.0 DAC Lossless Headphone Amplifier DAC USB Coaxial Optic Fiber

Advantages:
- Bluetooth DSD decoder and headphone amp in one machine
- For Bluetooth 5.0 APTX HD, PCM384, DSD256
- Bluetooth 5.0 CSR8675
- For APT-X HD decoding
- For XMOS XU208
- Support DSD256 hard decoding
- PCM32Bit 384KHz
- ESS9018K2M decoding chip
- Customized driver for German Thesycon
- 2*OPA2134 op amp
- 2x1000mW TPA6120A2
- Optic fiber input 32Bit/192KHz
- PC-USB 32Bit/384KHz
- Coaxial input 32Bit/384KHz

Description:
DAC-Q6 is a multi-functional decoding amp integrated machine suitable for PC system/portable system/small audio system/headphone system. It adopts German customized driver for Thesycon and ESS9018K2M chip, supports 32bit/384kHz and DSD256 master-level audio source playing, and has next-generation decoding capabilities.

Features:
- Support high format. With DSD256 and PCM384k high-definition playing capabilities, it can meet the playing requirements of various high-definition mastering formats and reproduce real music scene.
- Bluetooth 5.0 HD transmission for APTX HD. DAC-Q6 is equipped with a CSR8675 Bluetooth chip and supports for audio encoding such as ACC/SBC/apt X/aptX HD, so that high-quality audio can also be transmitted via Bluetooth. We connect digital signal output by CSR867 to ESS9018K2M to decode to get better sound quality.
- DSD256 PCM32Bit 384kHz. The addition for XMOS XU208 gives DAC-Q 6 ultra-high decoding capability of DSD256 and PCM 32Bit 384kHz on USB. We have also customized the driver (for Win 7 and above) from the German company for Thesycon to make your computer and DAC-Q 6 work better.
- ESS9018K2M decoder chip. DAC-Q6 uses ESS9018K2M chip, supports up to 32Bit and DSD256 DOP64 master-level audio playing, and has powerful decoding capabilities.
- OPA2134 dual operational amplifier chip. OPA2134PA has low distortion, low noise, high precision and high performance. DAC-Q6 uses 2pcs OPA2134 operational amplifiers with an operational amplifier base design, which provides professional users with more playability. It can achieve low noise and low distortion, and maximize dynamic range.
- TPA6120A2 headphone amplifier chip. TPA6120A2 is a high-fidelity audio power amplifier based on current feedback architecture. It has excellent performance and its distortion far exceeds that of many op amps that only process small signals. Can drive 16Ω-600Ω headphones. Two Japanese relays have been added to the output to protect your expensive headphones.
- Multiple inputs, including Bluetooth, optic fiber, coaxial and USB inputs.
- Independent headphone amp designed for headphone users. Its output power is up to 1000mW.

Applications:
- As a Bluetooth Headphone Amplifier: Connect your mobile phone, tablet PC, notebook to DAC-Q6 via Bluetooth, you can listen to high-quality music with headphones.
- As a Preamp: DAC-Q 6 can be used as a pre-amplifier, connected to a power amplifier or tube amplifier or active speakers.

Specifications:
- Product model: DAC-Q6
- Chipset: For XMOS XU208+CSR8675+ESS9018K2M+TPA6120+OPA2134* 2
- Working voltage: DC12V (voltage cannot exceed 12V)
- RCA output level: 2.3V
- Frequency response range: 20Hz-40kHz (±0.5dB)
- Signal to noise ratio: ≥112dB
- Distortion: 0.001%
- Bluetooth version: BT5.0 (CSR8675 chip)
- Bluetooth support: For ACC, SBC, aptX, aptX LL, aptX HD
- Headphone matching impedance: 16-600Ω
- Maximum output power of earphone: 1000mW 32Ω load
- PC-USB supports the highest sampling rate: PCM 384kHz/32Bit DSD256 DoP64
- Coaxial supports the highest sampling rate: PCM 384kHz/32Bit
- Optical fiber supports the highest sampling rate: 192kHz/24Bit
- PC-USB support operating system: For Win7/Win10/mac/Linux

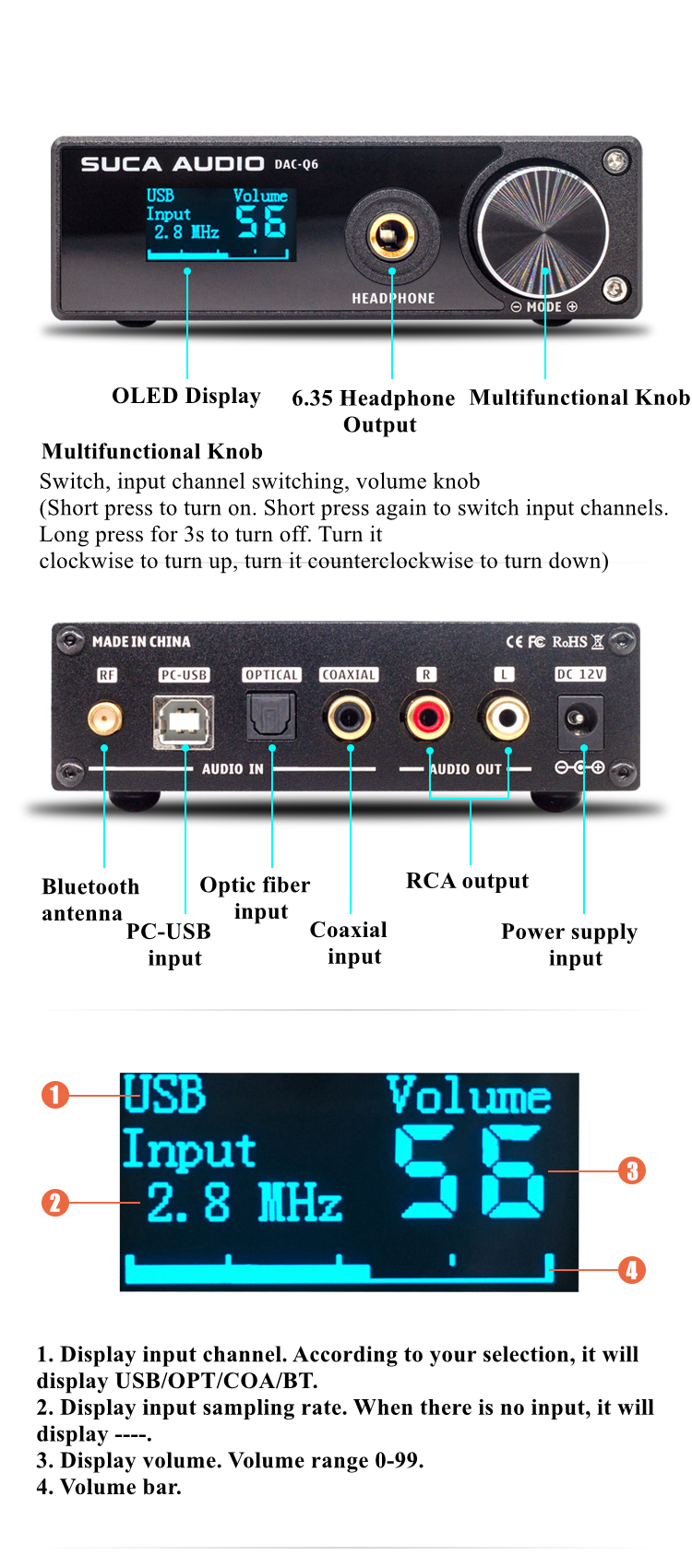

- Audio input interface: Bluetooth/PC-USB/optical/coaxial
- Audio output interface: gold-plated RCA/6.35mm headphone jack

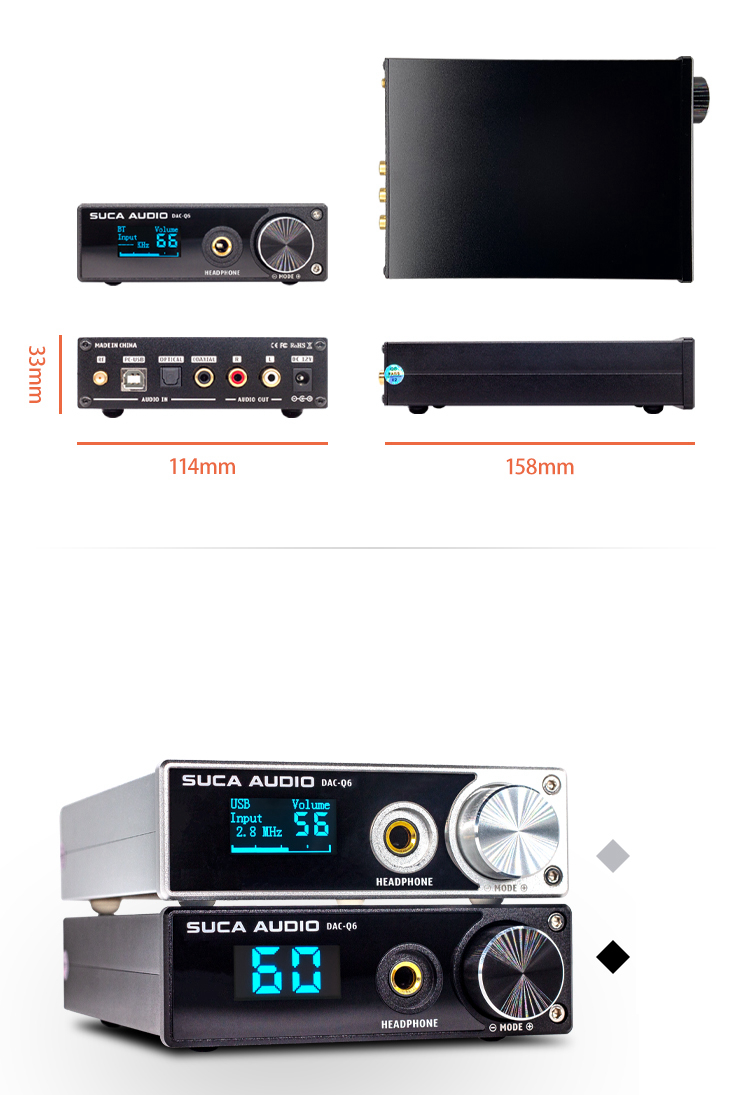

- Product size: 158 x 114 x 33 mm (Not including the sizes of protruding parts)

Package Included:
- 1 x Set of DAC-Q6 Decoder

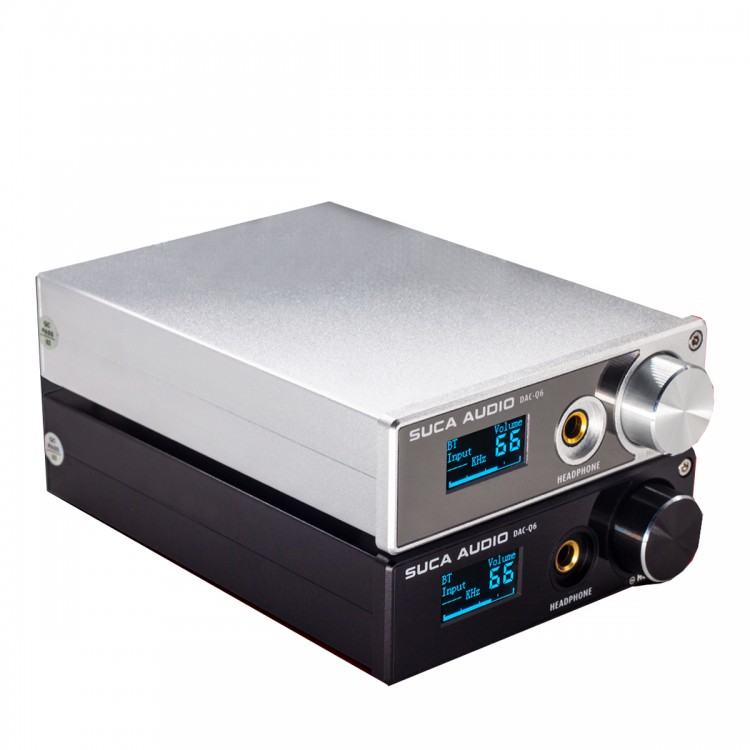

Note: Optional Colors: Silver, Black. Please choose the color you want when purchasing. Thank you!
