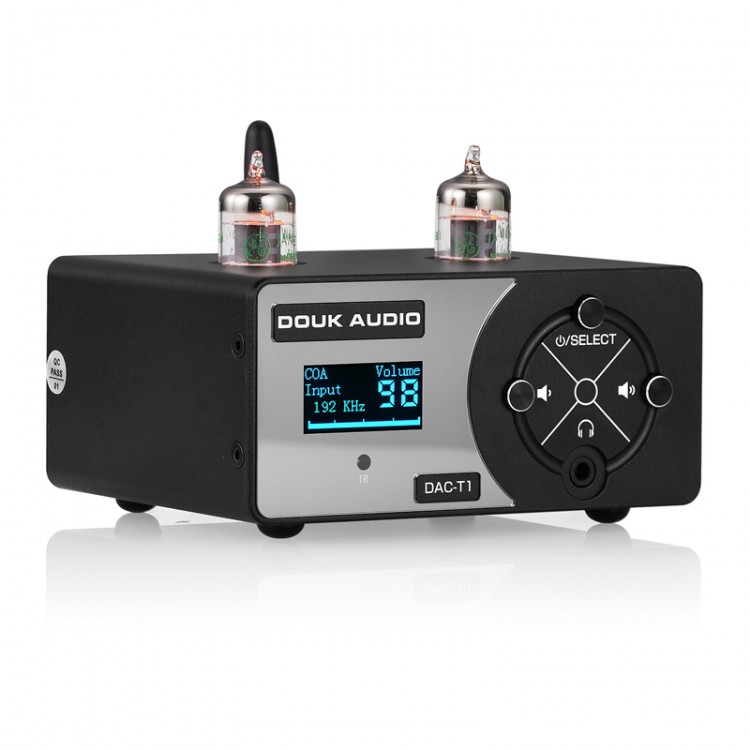

DAC-T1 Bluetooth 5.0 DAC USB DAC Headphone Amplifier Digital Decoder Using Imported Vacuum Tubes

DAC-T1 Bluetooth 5.0 DAC USB DAC Headphone Amplifier Digital Decoder Using Imported Vacuum Tubes

Attention:
1. Its 3.5mm headphone jack output is preferred, and stereo RCA output will be automatically disconnected when your headphone is inserted.
2. PC-USB input requires a special driver to achieve 24Bit/192KHz transmission, please contact us when you receive the DAC-T1. It also supports OTG, but system for Android needs an OTG cable; system for IOS needs camera kit, please prepare by yourself. Thank you!

Features:
- Used as desktop DAC and headphone amplifier
- Bluetooth 5.0 lossless decoding
- Audiophile vacuum tubes used; made from aluminum alloy
- With powerful functions and beautiful appearance, it is very suitable for audiophiles who pursue HiFi sound quality in a limited space. The DAC with retro tubes and OLED display, bringing you huge dynamic and sweet sound and wonderful listening enjoyment
- Multi-function input: Supports Bluetooth, PC-USB, coaxial, optical and RCA inputs. Compatible with most audio sources such as mobile phones, tablets, desktop computers, TVs, digital players, etc.
- Stereo RCA and 3.5mm headphone output ports can be connected to power amplifier, active speakers and headphones, allowing you to enjoy HIFI music
- Imported JAN5654 tubes have a retro and warm tone. Vacuum tubes enhance the richness of music, creating a soft, delicate, and dynamic sound. Pluggable tubes can be replaced by 6*1N, 6AK5, EF95, etc. so as to help you enjoy different styles of tube sounds
- Remote control; support treble and bass control, which is convenient for you to adjust your favorite sound style. In addition to a large LED display indicating working status, a full-featured remote control for all settings
- High-end materials and unique construction ensure better performance. QCC3031 Bluetooth chip supports for ACC/SBC/APTX/APTX-HD to achieve long-distance and non-delayed lossless signal; ESS9018K2M independent decoding chip brings delicate and soft sound, with lower distortion and higher resolution; CM6642USB chip with dedicated driver supports 24Bit/192Khz transmission to improve sound quality; classic 47 amp structure allows greater output power to drive 300Ω headphones

Specifications:
- Model: DAC-T1
- Chip architecture: QCC3031 (Bluetooth chip) + CM6642 (USB chip) + ESS9018K2M (DAC chip) + 47 classic amp architecture
- Audio input: Bluetooth, PC-USB, Coaxial, Optical and Stereo RCA
- Audio output: Stereo RCA / 3.5mm headphone jack
- Bluetooth version: 5.0 (support for APTX and APTX-HD)
- Sampling rate supported: PC-USB: 24bit/192KHz; Coaxial/Optical: 24bit/192KHz
- PC-USB operation system supported: for Win7/Win8/Win10/MAC/Linux
- Matched headphone impedance: 16-300Ω
- Input sensitivity: 2V
- Output level: Tube ON: 2.2V (RCA) / 140mW (headphone); Tube OFF: 2.5V (RCA) / 180mW (headphone)
- Frequency response: ±0.2dB (RCA) / ±1dB (headphone)
- THD: 0.08% (RCA) / 0.05% (headphone)
- SNR: 108dB (RCA) / 106dB (headphone)
- Working voltage: DC 12V
- Dimensions (W*D*H): 115 x 98 x 54mm/4.5 x 3.9 x 2.1"

Package Included:
- 1 x DAC
- 2 x Tubes
- 1 x USB Cable
- 1 x Optical Cable
- 1 x Remote Control
- 1 x DC 12V Power Adapter
- 1 x Bluetooth Antenna

Note:
- Battery of the remote control is not included.
