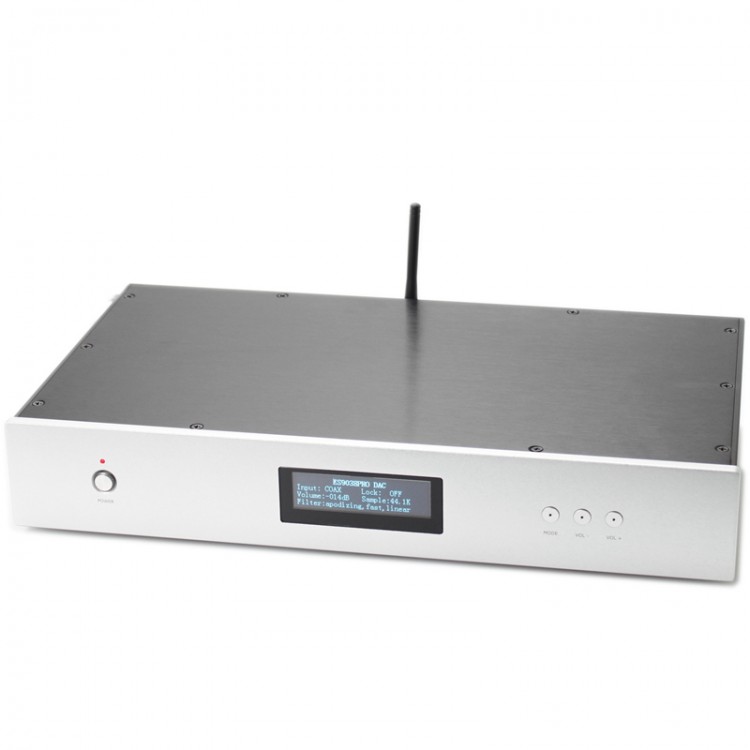

DAC10 Bluetooth 5.0 DAC USB Dual ES9038PRO DAC Chips Decoder For Optical Fiber Coaxial USB Assembled
Description:
ES9038PRO is a DAC chip with the highest parameters in the world. ES9038PRO is a DAC chip with the highest indicators in the industry, with a signal-to-noise ratio of up to 140dB, total harmonic distortion plus noise -122dB, and it is a 32-Bit, 8-channel DAC. In terms of parameters, ES9038PRO is enough to rival peers on the market in seconds.
Features:
- Premium original components used to guarantee quality and service life
- Electrolytic capacitor signal main circuit adopts a famous Taiwanese brand, and the main filter capacitor adopts audio-specific capacitor capacity (6800*6) UF*35V, and adopts a full-wave bridge rectifier circuit to ensure strong continuous power support.
- Five-ring metal resistors, and main circuit uses five-ring metal film resistors with an accuracy of ±1% to ensure a good signal-to-noise ratio of the whole machine.
- PCB adopts 1.6mm thick RF4 board, 2.0 oz copper thickness, and full gold plating process to ensure good passing performance of large and small currents. First-class PCB.
- Using pure copper (brass) plated with 24K gold, plug-in RCA seat
- Display adopts the latest technology OLED 3.12-inch HD display
- Equipped with balanced output terminals and unbalanced output RCA
- Optical fiber, coaxial, USB (PCM format) supports 192K 24BIT, USB supports up to 384K
- Dimensions: 430 x 240 x 70mm/16.9 x 9.4 x 2.8"
Package Included:
- 1 x Set of DAC
Note:
- It is assembled.
