Specification:

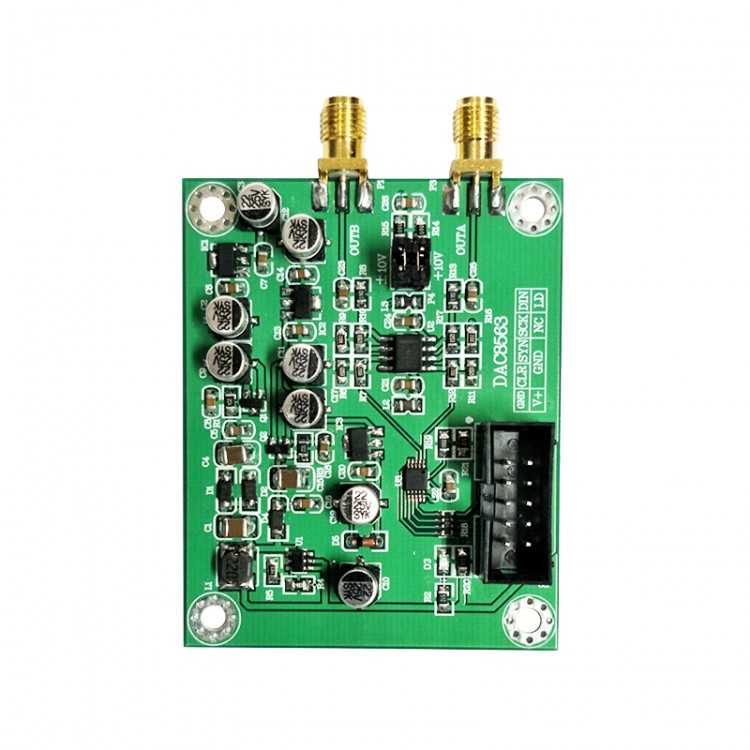

- Name: DAC8563 Digital to Analog Conversion Module
- Size: 62mm x 50mm
- Power Supply Range: 5V-12V
- Output Voltage Range: -10V~+10V or 0-10V (adjustable)
- Number of Channels: 2 channels (achieved by 1pcs DAC8563)
- Resolution: 16 bits
- Output Voltage Ripple: <6.5mV
- Output Resistance: default amplifier output resistance is 51R
- Use QPA1602 rail-to-rail op amp
- MCU Interface: High-speed SPI (50M), support for 3.3V and 5V microcontrollers
- Output Voltage Settling Time: 10μS
