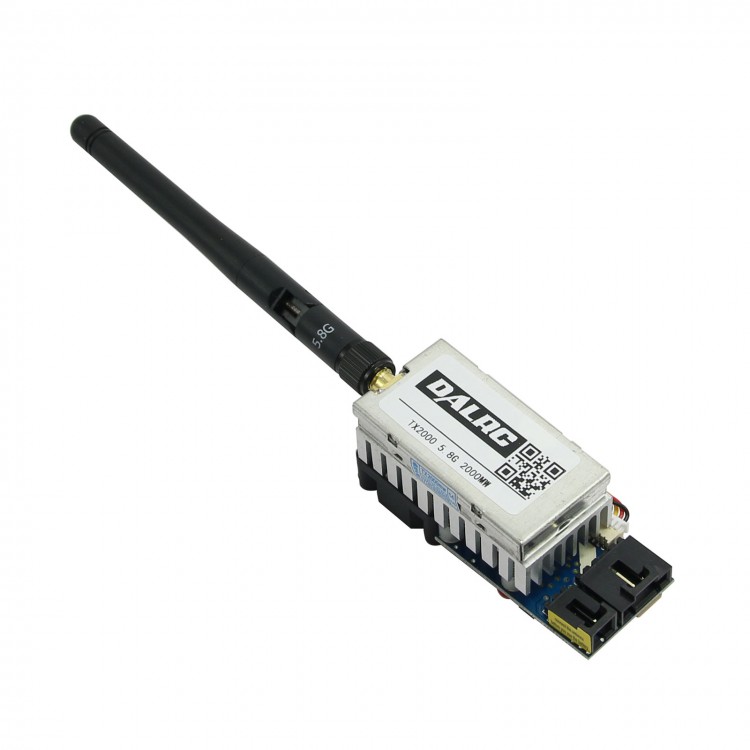

DAL 5.8G TX2000/MW/2W Transmitter Telemetery Support AAT Long Distance FPV Photography

DAL 5.8G TX2000/MW/2W Transmitter Telemetery Support AAT Long Distance FPV Photography

Note: please fasten the antenna before powered on, otherwise, the power module group will be burnt down

Description:
- Transmitting module adopts wide dynamic 7-15V power supply (support 2-4S lipo battery), but considering camera, you have to use 3S battery or 12V stabilization module to provide power
- With MIC microphone, small size an dportable.
- With MIC sound transmission, please adjust potentiometer near MIC if you want to change the volume, with audio input ufnction, perfectly support AAT

Parameters:
- This device provides 8 kinds of transmitting frequency band to set, and the 8 transmitter can work at the same time without inteference

TX RX features:
- 5.8GHz video/ audio simultaneous receiving (compatible with PAL and NTSC)
- DC 8-12V  (or .3S lipo battery)
- 8 working channel, DIP switch choosing setting
- High reliability, stability
- Using digital phaselocked loop circuit,
- Low noise filter leaking out, satisfying CE,FCC demands
- Providing two seperated channel of video/ audio terminal port
- Impact structure, small size, large transmitting power(2000mW)
- Integrated micro size heat radiator, small heat radiation, high working efficiency
- Adopting integrated circuit of large scale, high reliability
- Built in frqeuncy phaselocked loop, low filter radiation, high reliability, stability
- Working current: 800mA (12v)
- Diemnsion:  55*26*17mm
- Weight: 68.5g

Working frequency:
- CH1:5705 CH2:5685
 - CH3:5665 CH4:5645
- CH5:5885 CH6:5905
- CH7:5925 CH8:5945

Package includes:
- 2W transmitter x 1
