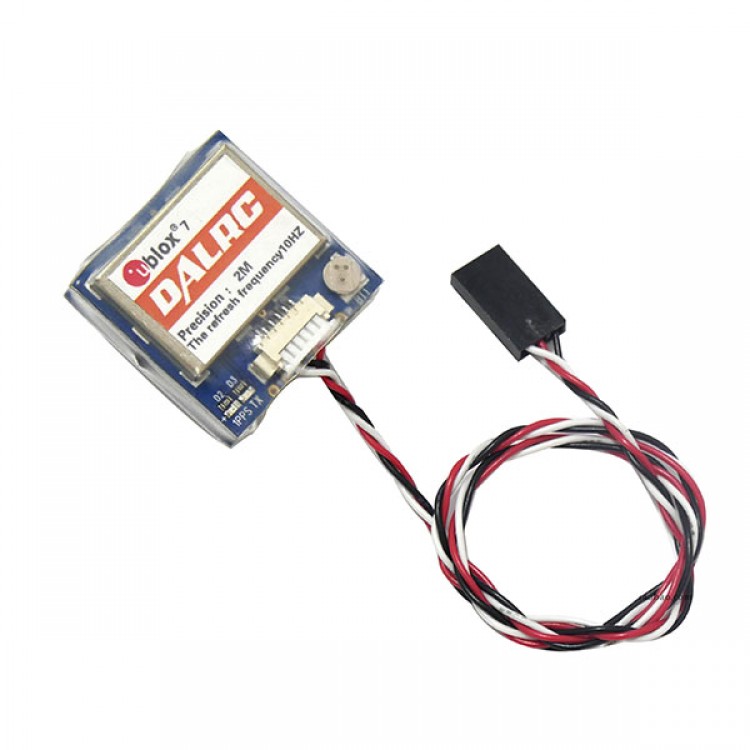

DAL Customized UBLOX 7N GPS 10Hz Refresh Rate / 2M High Precision / Flight Control Universal
Description:
- DAL custom models of high-quality GPS, using the latest UBLOX 7N chip , stable performance, high precision !
Default shipping : TTL level output , 38400,10HZ output , standard NMEA-0183 protocol output.
- This module uses the built-in active 28db gain two enlarged active antenna , high signal accuracy.
- baud rate , 4800,9600,19200,38400,115200 .
- Output Optional Protocol : NMEA-0183 or UBX.
- level optional , TTL, USB or RS232.
- Output frequency selectable , 1HZ - 10HZ output.
- servo cable for easy connection and distribution 3PIN fixed-wing flight control , OSD , etc. ( TX signal white , red positive , black negative )
- Taiwan's AU antenna using too active 28db high gain ceramic antenna , high gain, positioning fast , weak signal easily locate the following , note the antenna surface to be up at the sky .
Parameters:
- Internal chip: UBLOX7
- Positioning precisioni: 2M
- Consumption: 50mA
- Cold start sensitivity: -162dbm
- Cold start positioning time: 29S
- Second pulse precision: 60ns
- Channel: 56channel
- Max output frequency: 10HZ
- Internal crystal oscillator: TCXO
- Internal amplifer: internal first class amplifying
- Storage unit: 16M FLASH
- Testing software: u-center 8.10
