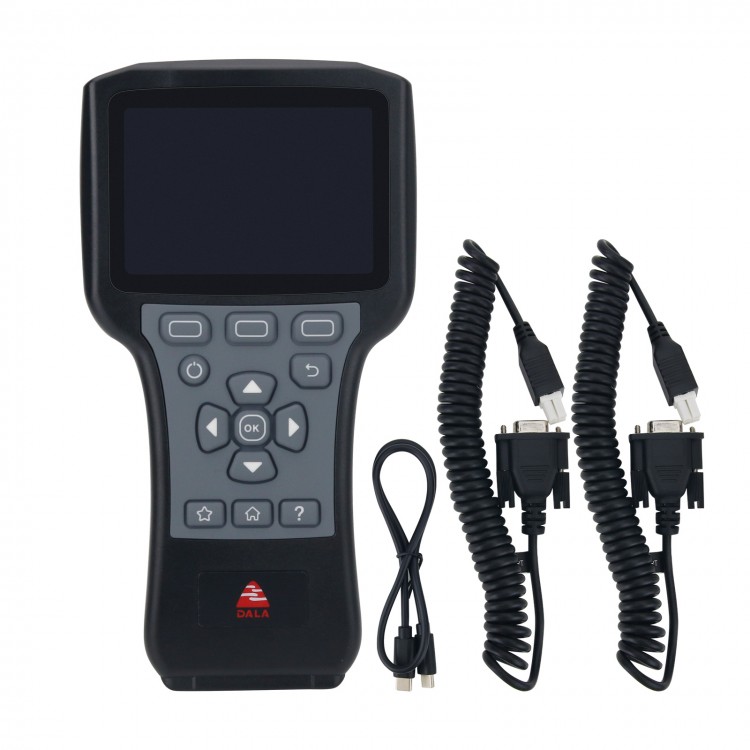

DALA DS13C Handheld Programmer with 3.5 Inch IPS Color LCD for Curtis Dala Motor Controllers
Overview:
DS13C is a handheld programmer for Dala and Curtis motor controllers.
The programmer provides powerful and portable programming and troubleshooting for DALA controllers by connecting in one of two ways, specific to the device: Either through a Controller Area Network (CAN), or directly via the device's serial port. Cables specific to the connection are supplied with the DS13C. Using DS13C can read/write controller parameters, monitor data, diagnostic faults and upgrade firmware.
Parameter settings can be conveniently cloned from one master DS13C to multiple slave DS13C via USB connection.
Features:
- DALA DS13C handheld programmer English version
- To modify controller input parameter type
- To modify the function parameters of controller output pins
- To modify motor parameters
- Data monitoring and fault diagnosis
- Program copying and function compatibility
Applications:
Applied to all places where original controllers for Curtis are used, including:
- R&D department: set and debug vehicle parameters
- Production department: Programming the new controller program
- After-sales maintenance department: copy old controller programs and diagnose the fault
- Agent: Parameter debugging, fault diagnosis and program copying
Specifications:
- Model NO.: DALA DS13C
- Item Name: Handheld Programmer
- Display: 3.5 inch IPS color LCD
- Input Voltage: 9~55V
- Power: 1W
- Communication: UART / CAN
- Updating: Via USB Flash
- Internal Memory: 16MB
- Working temperature: -20 to 50℃
- Storage temperature: -40 to 85℃
- Weight: 0.23kg/0.5lb
Package Included:
- 1 x Dala DS13C Programmer
- 1 x Carrying Bag
- 1 x Programming Cable
- 1 x User Manual
Packaging Details:
- Volume weight: 1.5kg
