DALRC BS25A BLHELI_S ESC Electronic Speed Controller 2-4s Support Oneshot MultiShot for FPV Multicopter
Description:
With the newest BLHELI_S 16.X programmer,EFM8BB2 processor,3in1 half-bridge driver chip,support OneShot125/42 MultiShot and USB programmer upgrading.
Specifications:

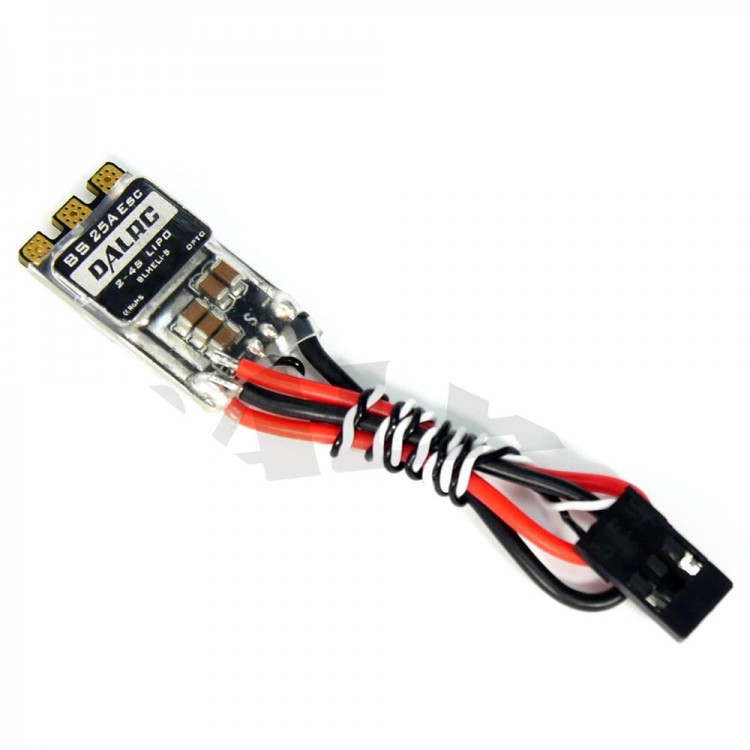

- DALRC BS25A BLHELI_S ESC Electronic Speed Controller
- Input power:2-4S LiPo/2-4S HV LiPo
- BEC Output: None
- Nominal operating current: 25A (maximum current: 40A 10 seconds)
- Size: 26 * 14.5
- Weight: 5.8g, excluding motor line 4g
- Firmware: BLHELI_S 16.X
- Support Damped mode, Oneshot125 / 42, MultiShot
- Processor: SILABS EFM8BB2 48MHZ
- MOS pipe: ALL N FET, Toshiba COMPANY
- Recommended with motor(not included): 1306/2204/2205/2206/2208/2306/2406 1500-2800KV
Package included:
- 1x DALRC BS25A BLHELI_S ESC
