Dam1941-12 Balanced DAC Board Audio Decoder Board Discrete R-2R with USB Interface for XMOS Soekris
Description:
Newly released dam1941 (balanced) has outstanding technical performance, and its signal-to-noise ratio and dynamic range have reached 130dB. It is unprecedented for discrete R2R to achieve this level.

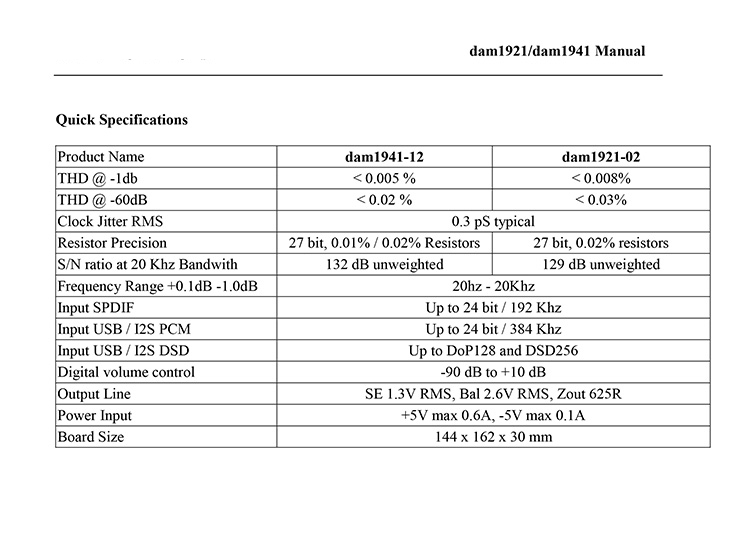

Specifications:
- Brand: For Soekris
- Model: dam1941
- Dimensions: 144 x 162 x 30mm/5.7 x 6.4 x 1.2"
- Main control: FPGA
- Output: dam1941 single-ended/balanced each group, working at the same time
- Input: USB (interface for XMOS), AES, S/PDIF RCA, S/PDIF BNC, Toslink, and I2S
- Dam1941-12: (0.01%/0.02% resistors, fully mounted balanced version)
Package Included:
- 1 x DAC Board

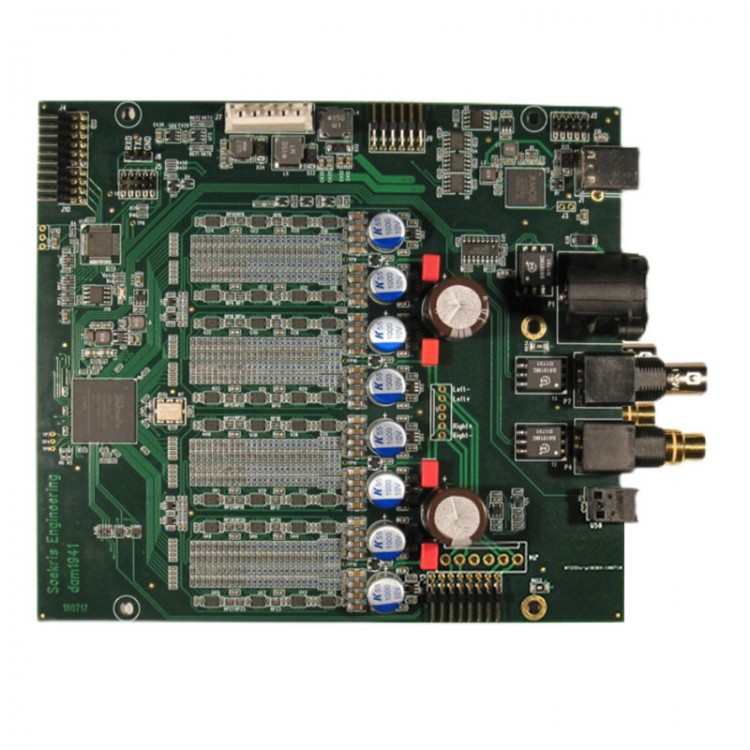

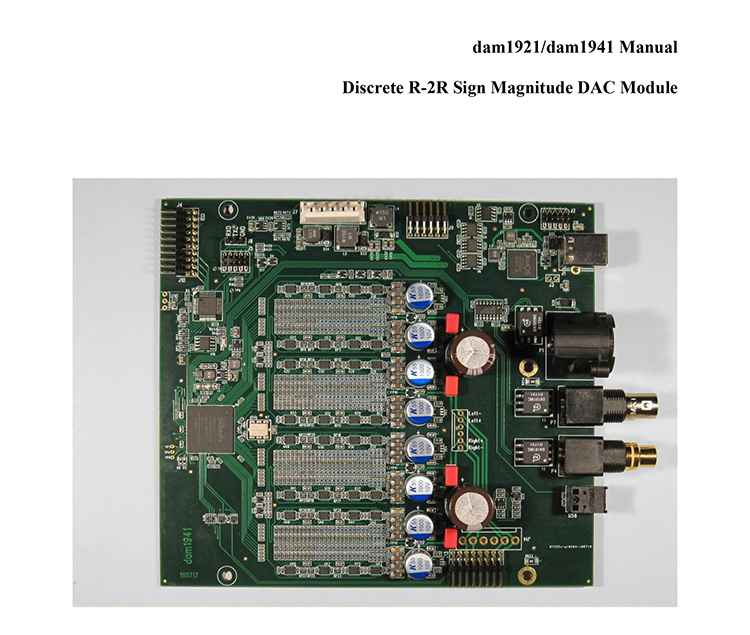

The dam1921/dam1941 discrete R-2R DAC for Soekris is a highly integrated OEM module with absolute highest sound quality, designed to be used in a DAC using the OEMs own power supplies and output buffers. Input is USB, I2S and Coax/Toslink SPDIF, with reclocking FIFO. Clocking is with ultra low jitter digital programmable oscillator. The board has support for different levels of user interfaces, from just a basic DAC to a DAC/Head Amp with full volume controls. Outputs are directly from the R-2R Sign Magnitude resistor networks, the dam1941 have four resistor networks for full balanced outputs, the dam1921 have just two of them mounted, for single ended outputs. The board is manufactured in Denmark using high reliability advanced surface mount technology.
We also offer a set of bare PCBs as example implementation of a Power Supply Board, an Output buffer Board and an User Interface/Display Board, they can be used for testing and as baseline for you own designs.
