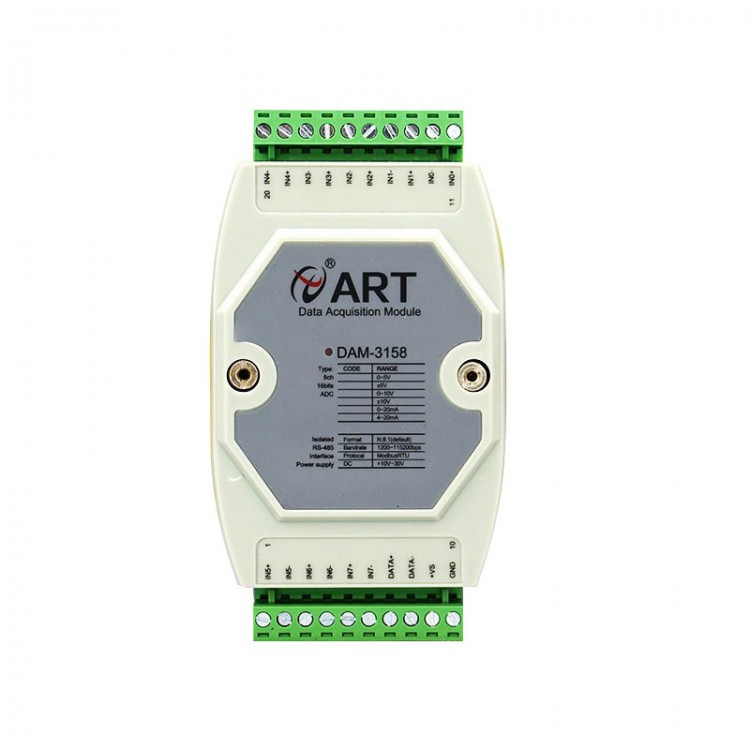

DAM3158 8-Channel 16Bit Analog Acquisition Module for KingView/ForceControl/INSPEC/MCGS Configuration
Description:
- The DAM3158A/3158 series is an 8-channel analog input with RS485 communication interface and standard Modbus RTU protocol. Easy to connect: Configuration software for KingView, Power Control, Easy Control, MCGS, etc. can also be used with touch screens for MCGS/WEINVIEW, as well as wireless DTUs.
- The difference between DAM3158/3158A is that the two models have different ranges. 3158 has a wider range, and ordinary users can use 3158A.
Features:
- Wide temperature use: High quality chips are used and rigorously tested to ensure stable operation of each product in a wide temperature environment.
- Using high-quality components from major brands, such as the communication isolation power supply for MORNSUN with an isolation voltage 2500V. Internally using TVS protection, with lightning and surge protection functions.
- 4-layer circuit board. Good anti-interference performance and stable performance.
- Plug and unplug wiring terminals for convenient on-site wiring.
- Module reset button: When the user forgets to set parameters, the reset button can be used to restore the factory settings.
- Running indicator light: When powered on normally and there is no data transmission, the indicator light remains on; When data is sent, the indicator light flashes; When the reset button is short circuited and powered on, the indicator light quickly flashes 3 times.
Specification:
- Communication interface: RS485
- Baud rate: 1200 - 115200bps
- Input channel: 8-channel differential analog input
- Input type: voltage input, current input
- Voltage range: +/-150mV, +/-500mV, +/-1V, +/-5V, 0-5V, 1-5V, 0-10V, +/-10V
- Current range: +/-20mA, 0-20mA, 4-20mA, 0-22mA
- Isolated voltage: 1500V
- Resolution: 16bit
- Acquisition precision: better than 0.001 (the voltage can be accurate to 1mV)
- Sampling rate: 10Hz main channel (each channel = 10Hz/enable channel number, it can be closed without using)
- Input impedance:
Voltage range: 10Mohm
Current range: 125ohm
- Watchdog: built-in watchdog, anti-lockup
- Power supply voltage: +10V ~ 30VDC
- Power protection: power reverse protection
- Power consumption: rated value 1.5W at 24VDC
- Operating temperature: -10℃ ~ +70℃
Package Included:
- 1 x Acquisition Module
