Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $27.67 | $27.10 | $26.25 | $25.12 | Contact US |

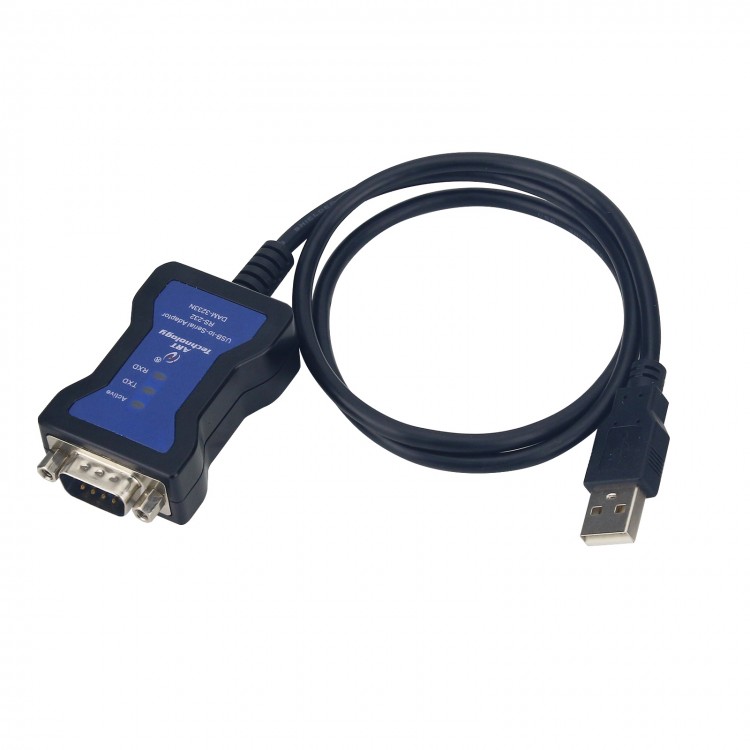

DAM3233N-0.7m USB to RS232 Adapter Cable 1-Channel USB-RS232 Converter Compatible with USB1.1/USB2.0
Features:
- Multi system compatibility: compatible with Windows series, Mac OS, Linux and other systems.
- Three types of data indicator lights: easy to see working status, providing convenience for programming and debugging.
Specification:
- USB: 1 channel, compatible with USB1.1/USB2.0 standards
- Serial port: 1 RS232 interface, compatible with EIA/TIA 232 standards
- Serial interface: DB9 pin connector (male)
- Transmission rate: Data transmission rate below 1Mbps
- Communication protocol: Supports automatic handshake protocol
- Support: Supports remote wake-up and power management
- Application: Single chip USB port to serial port communication
- Transmission distance: up to 5 meters
- Signal indication: 3 indicator lights, power light, sending light, and receiving light
- Power supply: USB power supply, 5V±5%
- Power consumption: rated value 0.1W at 5VDC
- Operating temperature: -40℃ ~ +85℃
- Storage temperature: -40℃ ~ +85℃
Package Included:
- 1 x USB to RS232 Converter
