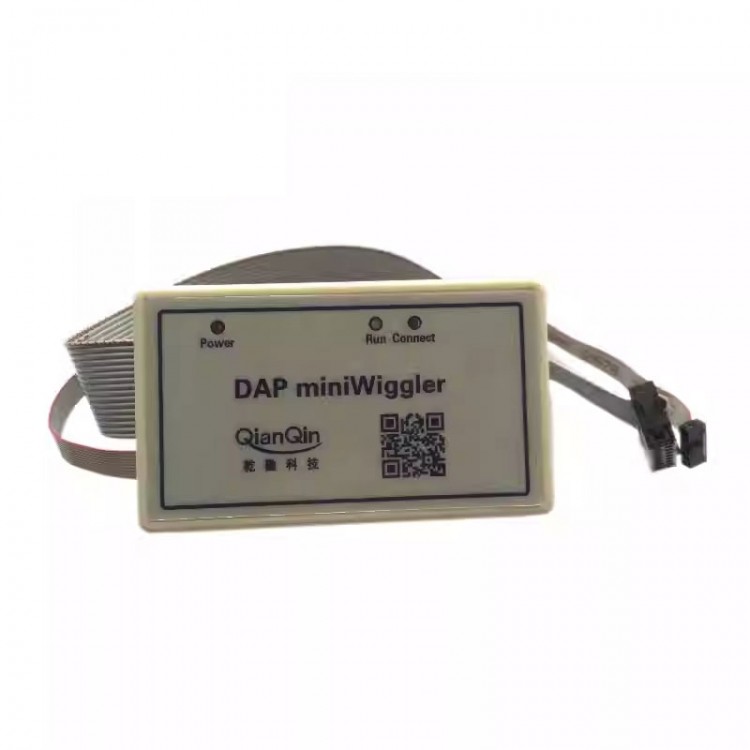

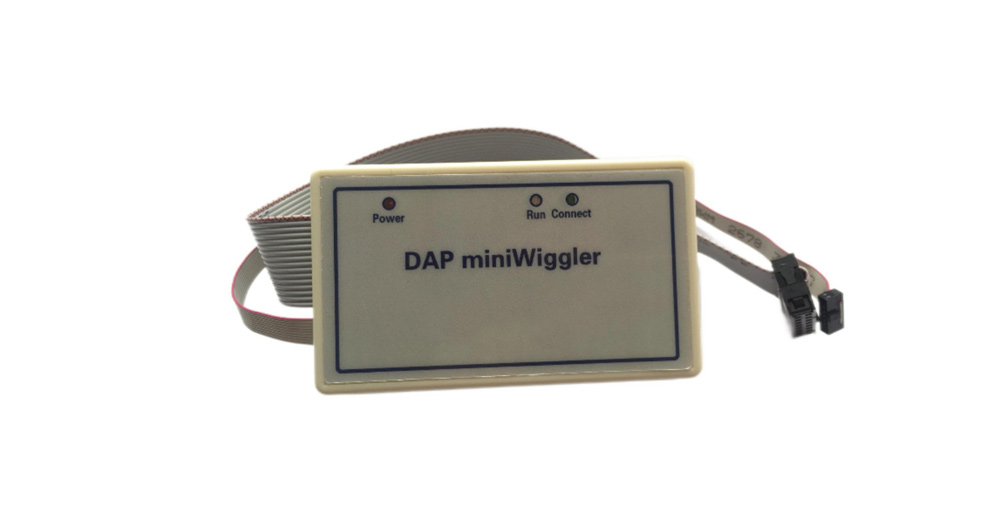

DAP MiniWiggler USB Emulator Debugger for Infineon 8-bit/16-bit/32-bit Single-chip Microcomputers
Description:
DAP miniWiggler emulator is a high performance and cost-efficient debugging tool. The emulator supports the download and debugging of 8-bit/16-bit/32-bit single-chip microcomputers (Aurix/TriCore/XC2000/XE166/XC166/XC800/XMC1000/XMC4000) for Infineon. It is a USB interface emulator. On the host side, it has an USB interface, which is available on every computer. On the device side, it is connected to the target system simulation or download program via a JTAG or DAP interface. Currently, DAP miniWiggler is the mainstream development tool for Infineon microcontrollers.
Furthermore, the emulator supports a variety of mainstream software development environments such as Tasking Compiler, HigTec, Keil uVision and HiTOP HITEX.
Features:
- USB2.0 (full speed) high-speed communication interface
- Compatible with JTAG/IEEE 1149.1
- Baud rate up to 6MBit/s (programmable) for JTAG interface
- Supports for Win10, Win7, Win2000, XP and VISTA
- Supports USB hot-plugging
- Supports JTAG hot-plugging
- Supports DAP hot-plugging
- 3 status indicator lights: red light as power supply indicator and blue light for running
- Supports for Infineon Aurix/TriCore/XC2000/XE166/XC166/XC800/XMC1000/XMC4000 series microcontrollers
Package Included:
- 1 x DAP MiniWiggler emulator
- 1 x USB communication cable (type-c)

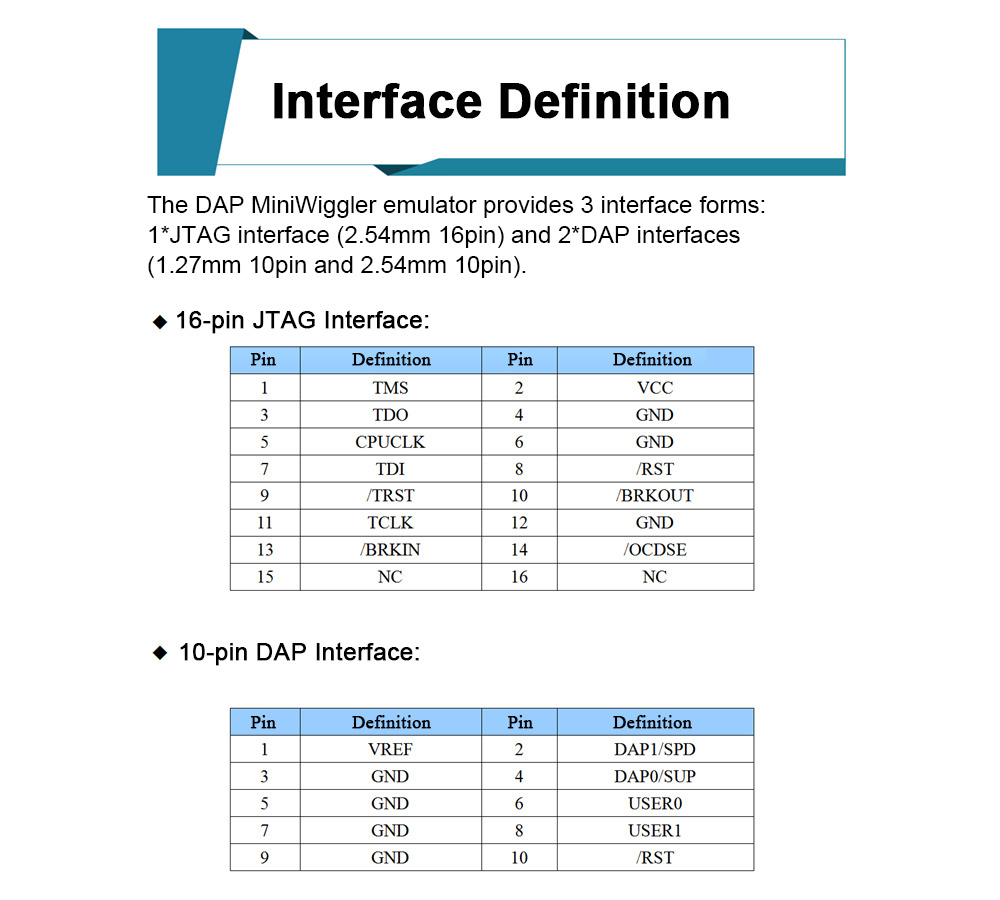

- 1 x 16-pin JTAG connection cable (2.54mm pitch)
- 1 x 10-pin DAP connection cable (1.27mm pitch)
Packaging Details:
- Weight: 0.3kg
