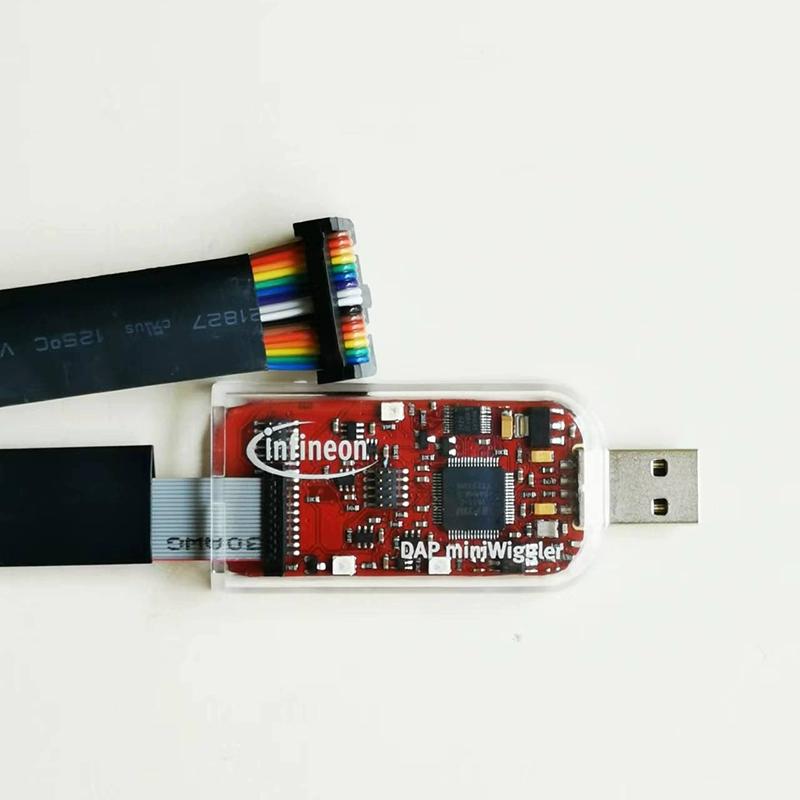

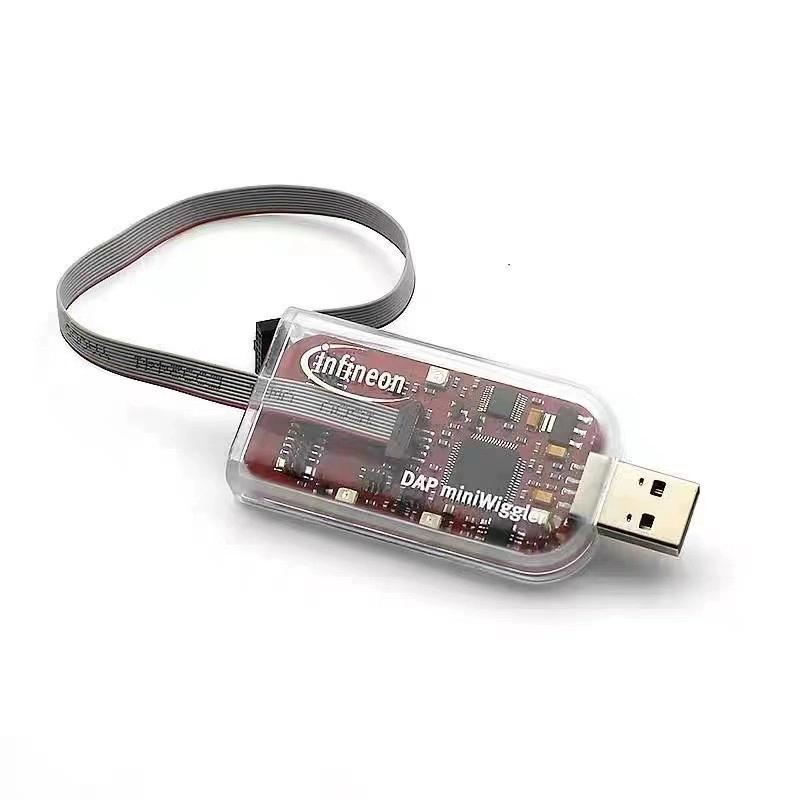

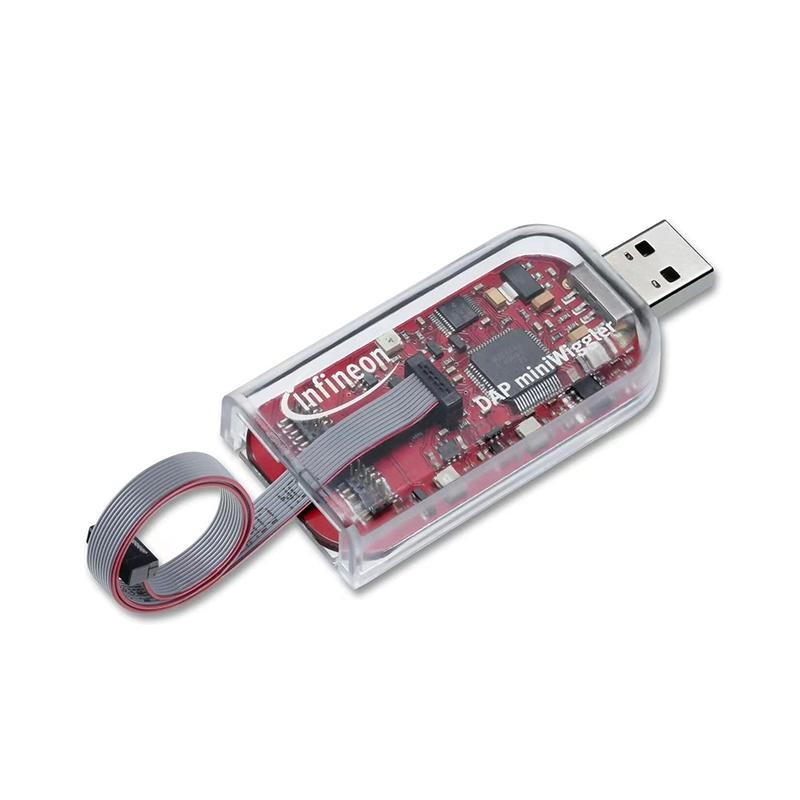

DAP Miniwiggler V3.1 USB Interface Emulator for MCU Development Programmer High Performance Debugging Tool for INFINEON
Description:
- DAP miniWigglerV3.1 is a continuation of DAP miniWiggler. It can be converted from PC/USB to a debugging interface for Infineon micro-controller devices (10 pin DAP/SPD/SWD, 20 pin automotive JTAG). The software interface of the tool is DAS (Device Access Server) DLL. The new version of DAS can be downloaded from www.Infineon.com/das
Application and Supported Tools:
- For Infineon MemTool (Tools & Software -> "Software Downloads")
- Debugging, Flash programming
- For Altium/TASKING compiler
- For Infineon DAVE Bench
- For Infineon DAVE 3 [Tools & Software ->“DAVE (Version 3) - Legacy -> xSPY Tool”]
- For Hitex HiTOP Debugger
- ARM KEIL uVision
- Supported microprocessor devices: for AURIX, for TriCore, for XMC4000, for XMC1000, for XC2000, for XE166, for XC166, for XC800.
Features:
- Clock speed up to 30MHz (programmable)
- All signals are 5.5V and can be scaled down to 1.65V
- USB 2.0 (high-speed)
- For Microsoft Windows XP, VISTA, certified drivers for 7 and 8
- USB, JTAG, and DAP/SPD hot plugging and unplugging
- 3 onboard status LEDs
- Supports car 20 pin JTAG on 10 pin DAP connectors
- Add connectors for front-end expansion (e.g. for electrical isolation)
Application:
- Debugging
- Flash programming

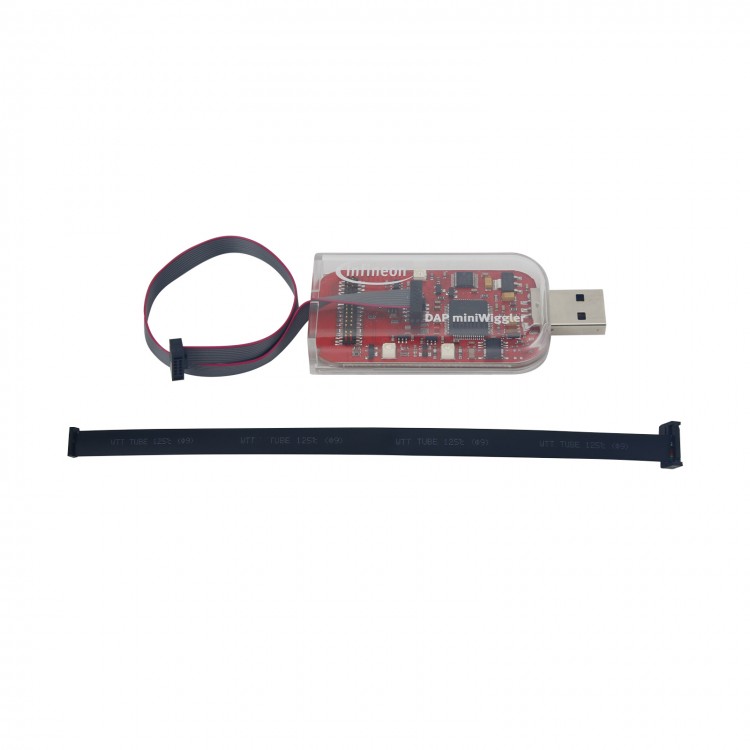

Package Included:
- 1 x Emulator

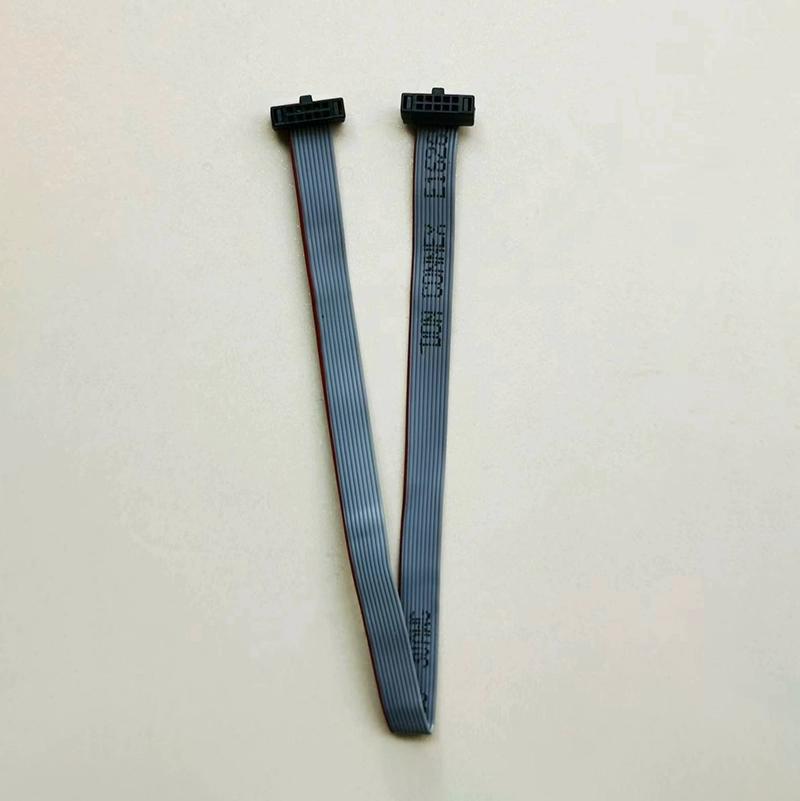

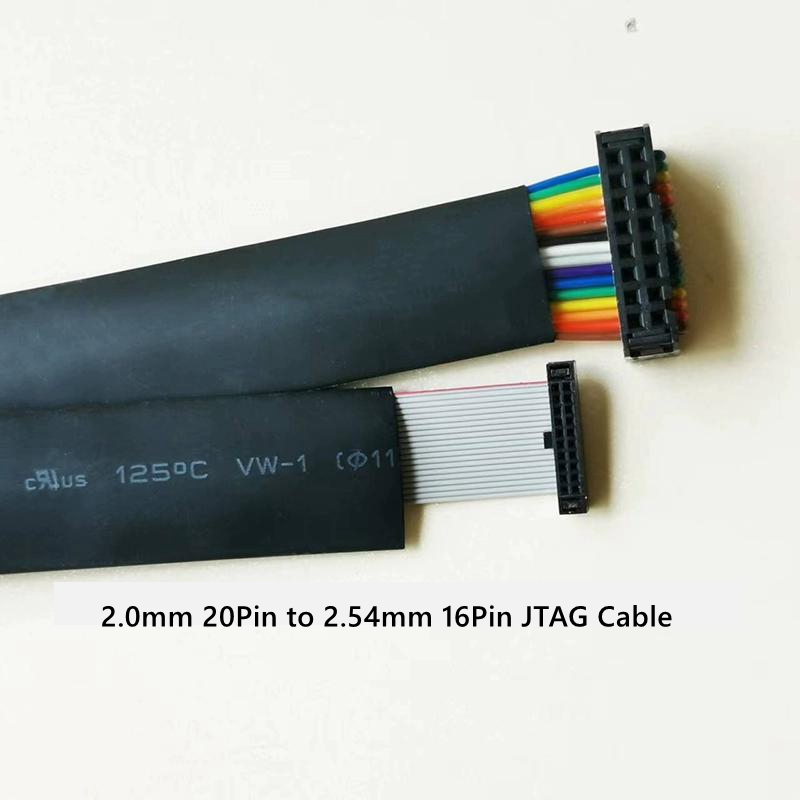

- 1 x 2.0mm 20Pin to 2.54mm 16Pin JTAG Cable
