• DAQ122 Data Acquisition Card DAQ Card Supports 8CH 16bit Synchronous 200K Real-time Sampling

DAQ122 Data Acquisition Card DAQ Card Supports 8CH 16bit Synchronous 200K Real-time Sampling

Availability: In stock, usually dispatched in 1 business day

  • Price:$77.38
  • Price in reward points: 774 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $75.83 $74.28 $71.96 $68.87 Contact US
Quantity:

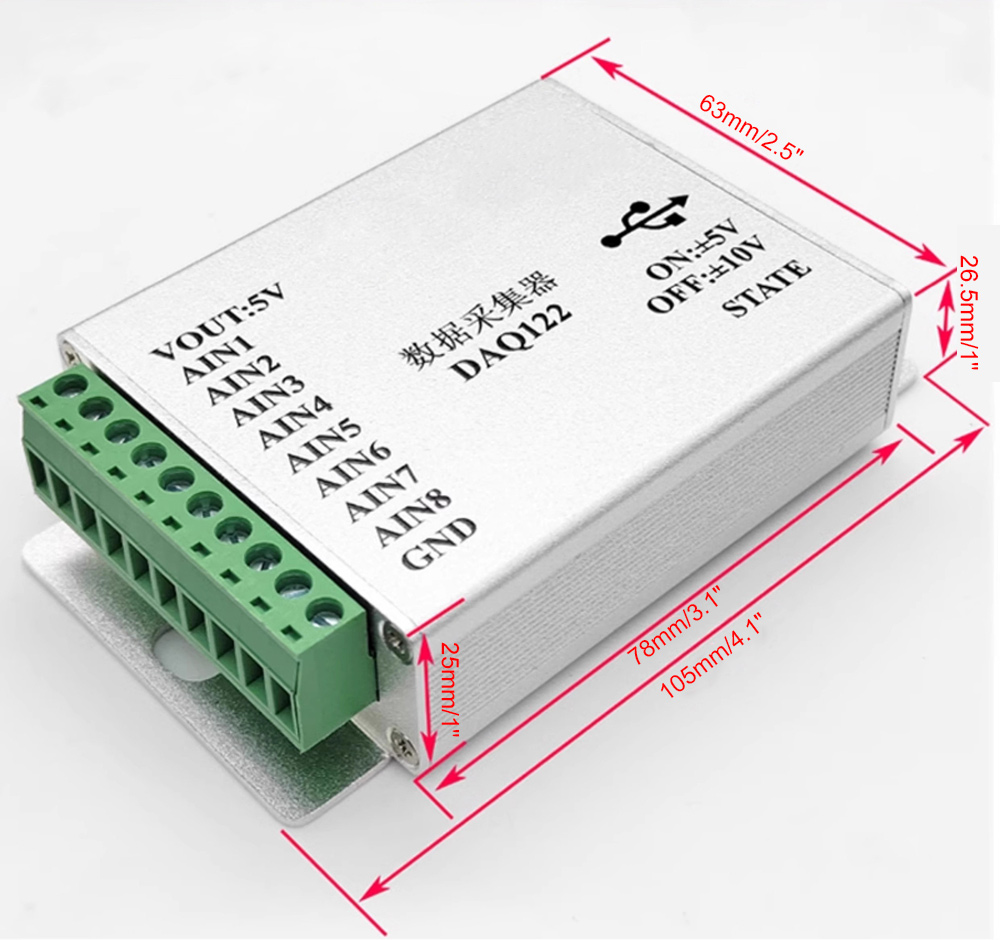

DAQ122 Data Acquisition Card DAQ Card Supports 8CH 16bit Synchronous 200K Real-time Sampling

Features:

* High-precision data acquisition card
* 8-channel 16-bit synchronous 200K real-time sampling
* USB high-speed real-time transmission
* Includes the demonstration QT tool of the upper computer
* Exports data stream: txt/bin/cvs/tdms
* Supports secondary development: Dynamic link library (DLL)/Labview case
* Supports Labview to call cases
* USB type-B reliable connection
* File saving and playback: Files can be saved in file formats such as bin/txt/csv/tdms. Users can import third-party tools such as Matlab and Labview for analysis and processing

Parameters:
* Product model: DAQ122
* Supported systems: For Windows/Linux
* Communication interface: USB2.0, Type-B
* Acquisition channel: 8 channels, single-ended input
* ADC resolution: 16bit
* Sampling and transmission: Simultaneous sampling and real-time transmission
* Acquisition rate: 200kSPS MAX., 8 adjustable steps
* Minimum sampling resolution (LSB): 152uV at ±5V; 305uV at ±10V
* Input signal range: true bipolar analog input ±5V/±10V (two levels switchable)
* -3dB bandwidth: 15kHz at ±5V; 23kHz at ±10V
* Input clamp protection: Up to ± 16.5V
* Input buffer: 1MΩ analog input impedance
* Input filter: Second-order anti-aliasing analog filter
* ESD protection: USB signal and power supply support air 15KV, contact 18KV
* Anti-short-circuit protection: output resettable fuse
* Upper computer tool: QT tool provided (source code is not provided)
* Secondary development: For Windows/Linux system; CPP dynamic library and C# dynamic library are available
* Third-party tool support: Labview to call cases

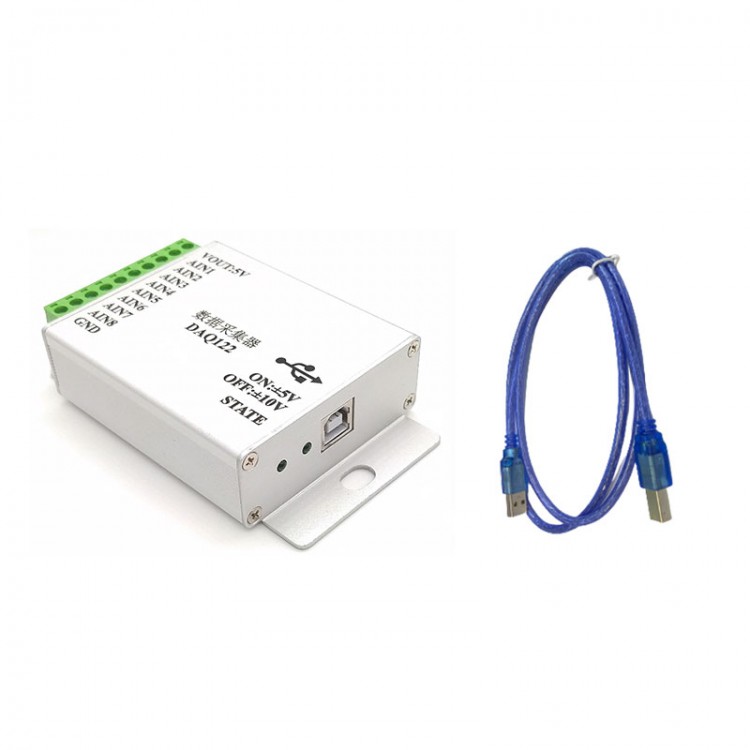

Package Included:
* 1 x DAQ card
* 1 x Data cable

Packaging Details:
* Weight: 0.5kg
