Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $11.66 | $11.42 | $11.07 | $10.59 | Contact US |

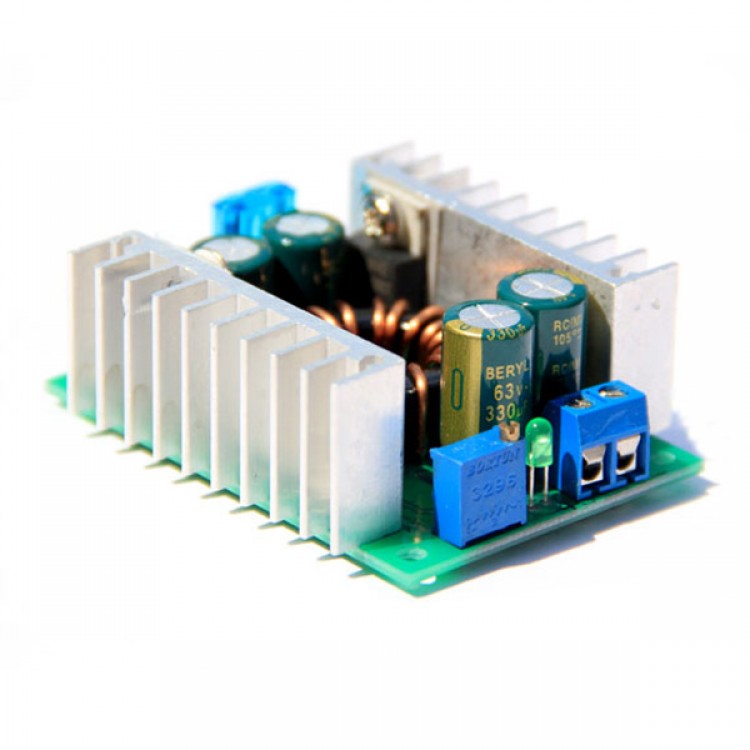

DC 10-32V to 9-60V Booster Converter 8A 300W Step-Up Regulator Module For Amplifier Computer LED Drive
Specifications:
- name:300W step up-module
- type:The isolation booster module (BOOST)
- Input voltage:10-32V input
- Input current:15A(MAX) over 8A,pls use heatsink
- stastic current:15mA
- Out put voltage:9-60V continues adjustable(Shipment test about transferred to 38 v, output voltage before use, please adjust themselves to the required voltage, potentiometer clockwise voltage increase, counterclockwise voltage decreases)
- Output current:8A MAX ,over 8A pls use heatsink
- Output power: 100W (300w if use heatsink)
- working temperature:-40~+85C
- working frequency:110KHz
- Converter efficiency:95.9% max
- short-circuit protection:Yes
- Input reverse connect protection:no
- installation method: 4pcs 3mm screw
- Connect method:Terminal welding free ,the input IN and OUT for the output
- Size:63mmx52mmx23mm
- Weight:66g
Package list:
- 1 x DC 10-32V to 9-60V Booster Converter 8A 300W Step-Up Regulator Module
