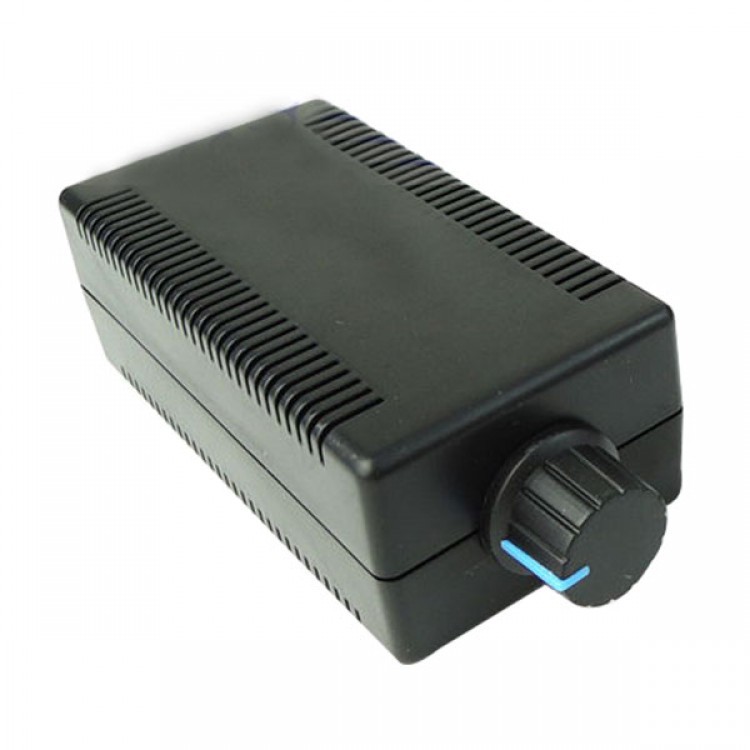

DC 10-50V 30A Motor Speed Controller PWM 2000W CCM9N 240Hz / 2.2kHz / 22kHz
Description:
- CCM9N DC Motor Speed Controller allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 5%-100%. The motor speed controller can provide a continuous current of 30A to your DC motor or other DC load.
Main technical parameters:
- Input supply voltage: 10V-50VDC
- The maximum output power: 0.01-2000W
- The maximum continuous output current :30A.
- The overload and short circuit protecting current is 40A
- PWM frequency: 240Hz. 2.2kHz. 22kHz
- Duty Cycle adjustable: 5%-100%
- The operation environment temperature:-20 Celsius-40 Celsius
Specifications:
- Item size:108*55*38mm (size of the shell)
- Net weight:90g
Package:
- 1x Motor Speed Controller
