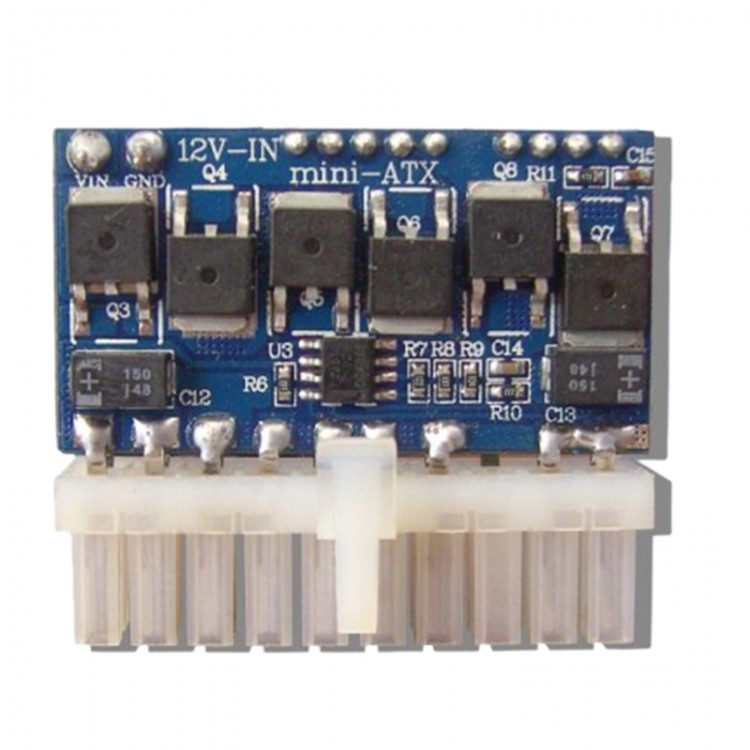

DC-ATX 12VDC 150W Power Supply Module 20PIN In-Line PPI-12-150W for Automobile Application

Availability: In stock, usually dispatched in 1 business day

  • Price:$21.73
  • Price in reward points: 217 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $21.30 $20.86 $20.21 $19.34 Contact US
Quantity:

DC-ATX 12VDC 150W Power Supply Module 20PIN In-Line PPI-12-150W for Automobile Application

Description:

Model:PPI-12-150. DC/DC ATX power supply for automobile application, 12VDC input.
+5V,+12V,+3.3V,-12V,+5VSB and PG (power good signal) outputs.

Specification:
1.The smallest 12V DC to DC power supply
2. convertor in the world.
3.Adopt industrial solid capacitor, ideal for being used in
4. harsh evironment
5.High performance with high heat-stand feature, more realiable
6.Fanless DC-DC solution for 100% mute operating .
7.Compact design, special for mini-itx and 1U case.

Parameters:
1.Dimensions(mm): L44x W32x15H
2.DC Input: 12V
3.DC Output : 150W +12V 0 6 ±5%
4.Input Current: Max. 15A +5V 0 5 ±5%
5.Efficiency: above 92% +3.3V 0 5 ±5%
6.MTPF: 90,000H -12V 0 0.1 ±15%
7.Operating Temperature: 0~75deg C +5VSB 0 2 ±5%
8.Storage Temperature: -40~ 70 deg C
9. When working under the maximum loading, tha fan is necessary. If no fan, can only work for 30s

Package included:

- 1 x Power Supply Module
