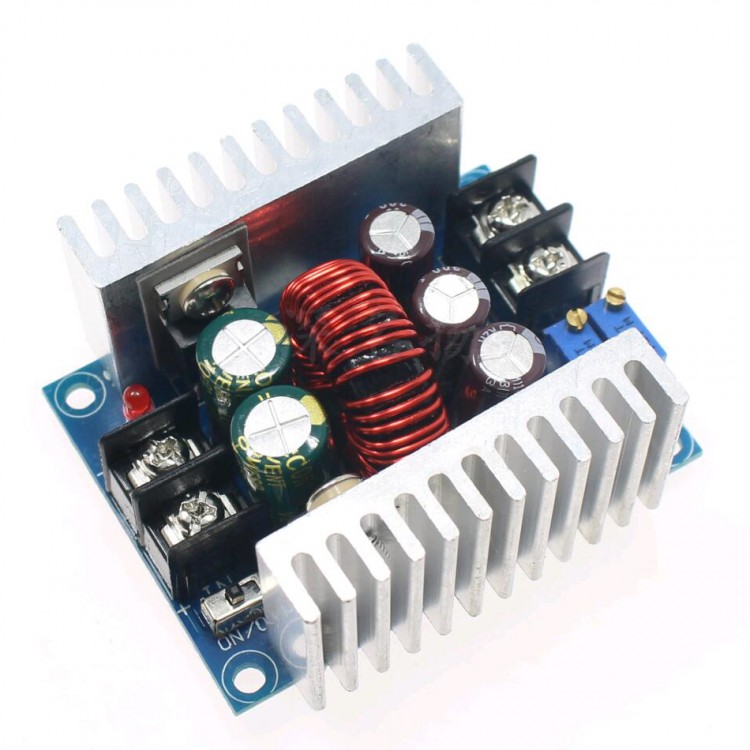

DC CC CV Buck Converter Step-down Power Supply Module 6-40V to 1.2-36V 300W 20A

Features:

• With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current.
• The efficiency can be up to 96%, measured at 20A, converting 24V to 12V.

• It is designed with 75V/80A large current dual MOS tube.
• Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output.
• Wiring is convenient with these large current 30A screw terminals.
• The buck module has 2 heat sink that could enhance heat dissipation.
• When there is a big difference between input and output voltage, please decrease power and current.


Specifications:

Input Voltage: 6V to 40V DC(10V to 40V is suggested)

Output Voltage: 1.2V to 36V DC

Output Current: 20A(max.), 15A(suggested, )

Output Ripple: ≤50mV

Wiring Method: Terminal

Short Circuit Protection: Self-recovery(cannot short circuit for long time)

Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"
