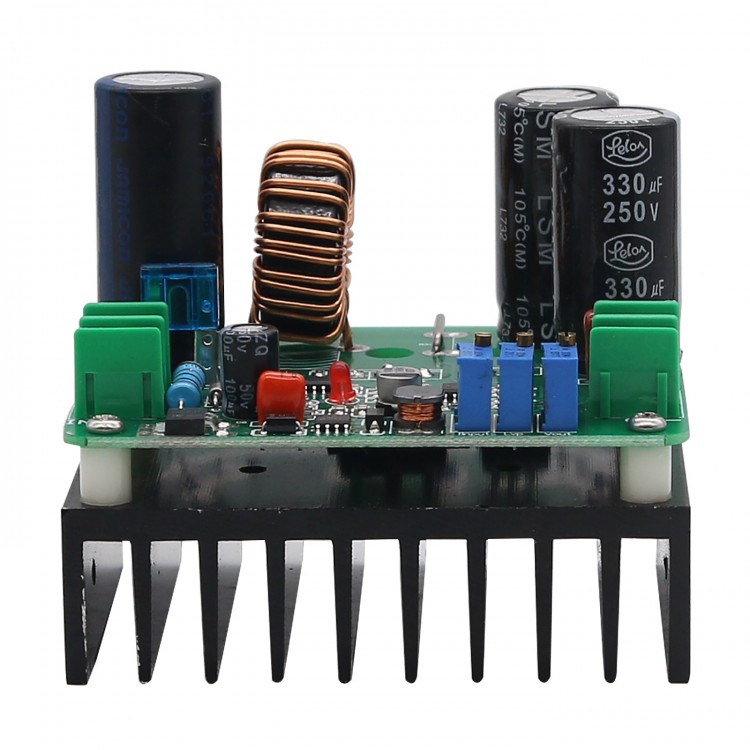

DC-DC 8-30V 30-60V to 12V-130V Boost Converter 900W CV CC Step Up Voltage Converter DC Module Board
Features:
1. Wide range of input and output voltages. Input voltage 8V~30V, 30V~60V; output voltage 12V~130V
2. Ultra low input and output pressure difference
3. U sing 1mm double wire wound inductor, high quality filter capacitor, boost output power quality is better
4. With voltage regulation, current adjustment potentiometer, you can adjust the output voltage, current at any time
5. With input under-voltage protection function is particularly suitable for batteries and solar panels, to prevent battery over-discharge and solar panel voltage being too low to start the module. (Batteries are not included)
Parameters:
- Input Voltage: 8V-30V; 30V-60V (Switchable)
- Input Current: 15A (MAX)
- Output Voltage: 12V-130V continuously adjustable
- Output Current: 15A (MAX)
- Output Power: 900W (Max)
- Output Ripple: <50mV
- Conversion Efficiency: about 85%
- Voltage/ Current Adjustment: with potentiometer
- Short-Circuit Protection: 15A Fuss
- Heat Dissipation: heat sink, natural heat dissipation
- Wiring: 8500 wiring terminal
- Product size: 85 x 69.5 x 70.7mm (L*W*H)
Package Included:
- 1 x Step Up Voltage Converter
