Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $68.48 | $67.08 | $64.99 | $62.19 | Contact US |

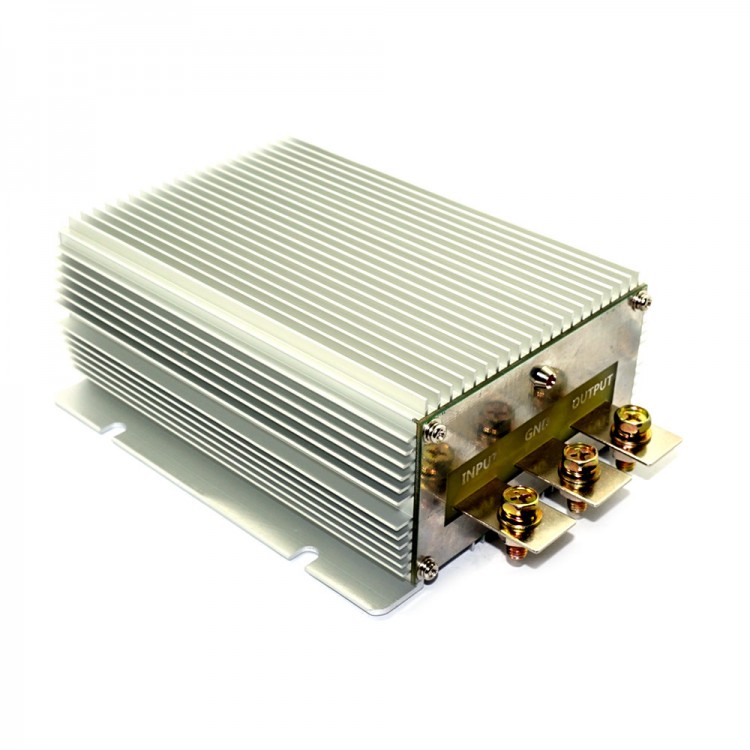

DC-DC Step-Down Buck Converter 24V to 12V 50A Voltage Regulator 600W Power Supply RCNUN
Features:
- 100% full power & stable current output
- Non isolated regulated DC power supply
- 100% Imported components
- Wide input voltage
- High efficiency up to 96%
- 100% waterproof & anti-shock protection, Ultra compact size, light weight
- Waterproof, IP68
Specification:
Brand | RCNUN |
Model | RC241250 |
Input voltage range | 18-36V DC |
Efficiency | 96% |
Output voltage | 12V |
Rated output current | 50A |
Output rated power | 600W |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple | <150mV |
Working temperature | -30~80 degree C |
Waterproof rating | IP68 |
Over-current protection | Yes |
Over-voltage protection | Yes |
Over-temperature protection | Yes |
Short-circuit protection | Yes |
Size | 150*127*63mm |
N. W. | 1.55kg |
Cooling way | Natural heat dissipation |
Package List:
- 1 x DC-DC Step-down buck Converter
