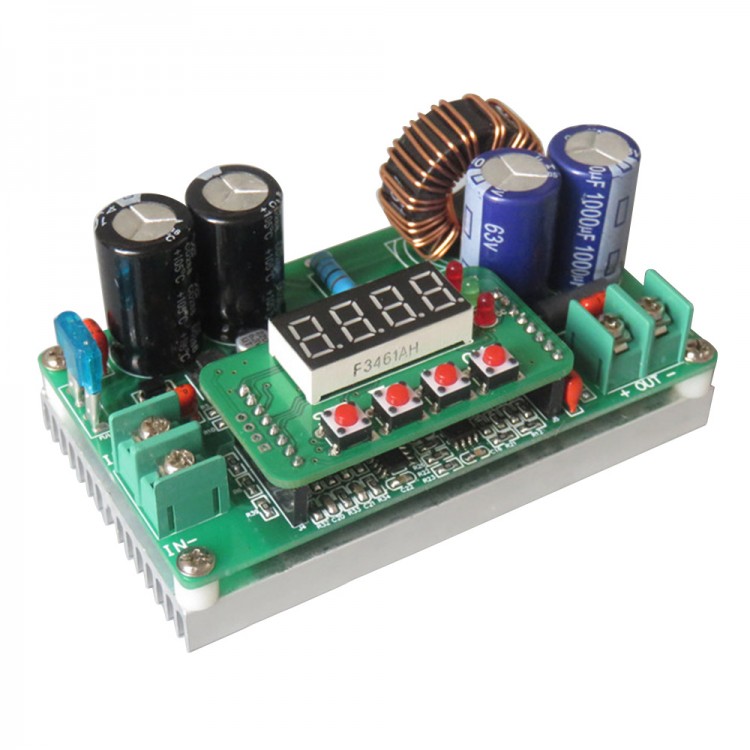

DC DC Step-Down Buck Module Adjustable Voltage Regulator Voltmeter Ammeter DKP6008

Availability: In stock, usually dispatched in 1 business day

  • Price:$21.66
  • Price in reward points: 217 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $21.23 $20.79 $20.14 $19.28 Contact US
Quantity:

DC DC Step-Down Buck Module Adjustable Voltage Regulator Voltmeter Ammeter DKP6008

Features:

- Advanced microprocessor, buttons can accurately adjust the output voltage, current;
- 4 bit high brightness digital tube, you can display real-time output voltage, current, capacity, time;
- Can set  the automatic output after power on
- Can lock the parameter adjustment button
- Through the reserved port , the microcontroller or PC communications for the second development
- 0.8mm double wire wound around the large current inductor, the input uses 2 470uF/100V electrolytic capacitors, output using 2 1000uF/63V electrolytic capacitors, with fan cooling
- Full digital display, convenient and easy to use;
- Constant voltage, constant current output;
- With a working status indicator, the output OUT, constant voltage CV, constant current CC indicator, you can view the status of the work;

Parameter:
- Input voltage range: 6-65V
- Output voltage range: 0-60V
- Output current range: 0-8A
- Output power: 0-400W
- Output voltage resolution: 10mV
- Output current resolution: 10mA
- Power supply: CV<0.5%+10mV,CC<1%+10mA
- Load:  CV<0.5%+10mV,CC<1%+10mA
- Output ripple: <40mVpp
- 100Hz Wave transmission ratio:<1/10000
- Typical efficiency: 88%
- Voltage display error:-+1%+20mV
- Current display error:-+2%+20mV
- Response time: <50ms
- Onboard heat sink
- Operating temperature: 0-40 deg C
- Storage temperature: -20~70 deg C
- Size: 104*59*46mm

Package list:
- 1 x DC Step-Down Buck Module
