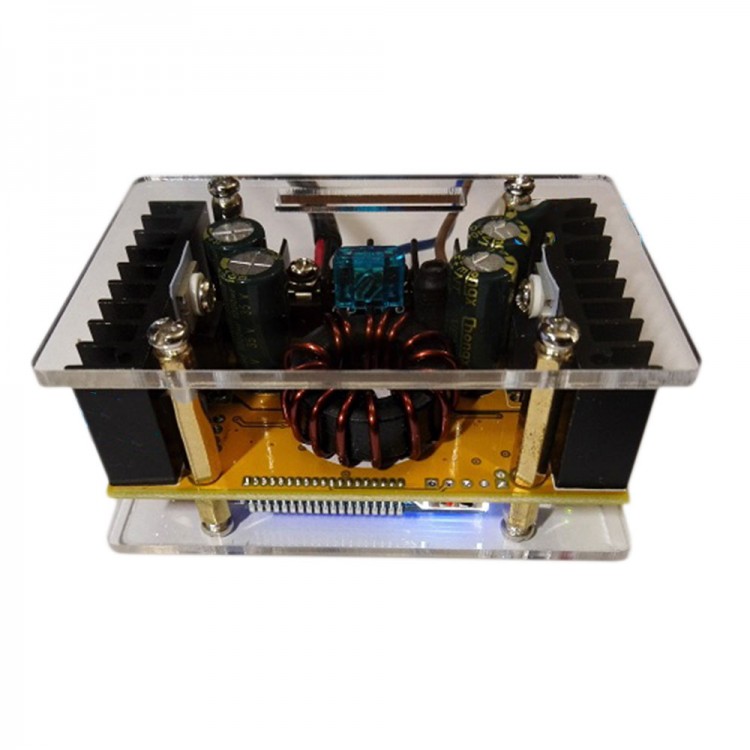

DC DC Step Up Boost Module Adjustable Module LCD Voltage Current Display with Shell Kit
Parameter:
- Input voltage: 10-32VDC input
- Output voltage: 10-60VDC continuous adjustable (only for the input voltage is less than the output voltage , can not Buck)
- Input current: maximum 16A( please make heat dissipation when over 8A )
- Output current: Maximum 8A (please make heat dissipation when over 4A )
- Output power: natural heat dissipation,maximum 90W, make heat dissipation , maximum 150W
- Module: non isolated boost module
- Output constant current range: 0.3-8A
- Working temperature: -40~+85 degrees (please strengthen the heat sink when the ambient temperature is too high).
- Operating frequency: 150KHz
- Conversion efficiency: the highest 95%
- Short circuit protection: Yes (input 15A fuse)
- Input anti-access Protection: No, please add anti - connected diode(not include) for the input end .
- Output light: with charging indication
- Output anti - reflux: Yes
- Installation: two acrylic boards, on 8 *Pillars, 8* 3mm screws*
- Connection: Wiring terminal or welding terminal, IN for the input, OUT for the output
- Module size: L 80mm W 53mm H 35mm
- Weight: 135g
- With unassembled shell kit
Package list:
- 1 x DC DC Step Up Boost Module
