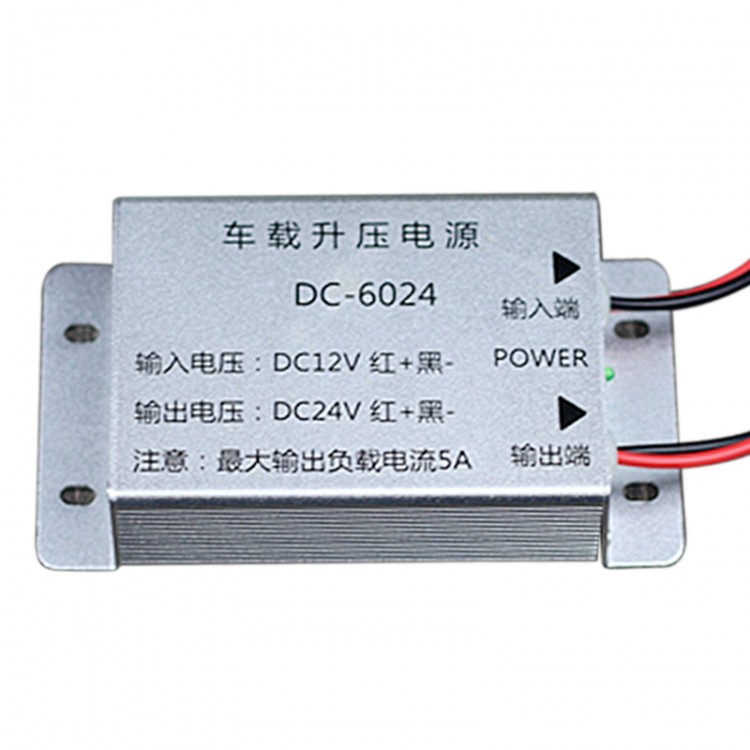

DC-DC12V to 24V 5A 120W Aluminum Case Boost Power Module Booster Power Converter for Car

DC-DC12V to 24V 5A 120W Aluminum Case Boost Power Module Booster Power Converter for Car

Description:
This product is a pulse width modulation (PWM) mode, the non isolated switching power supply. The input 12V boost to the 24V output, apply imported high power integrated switch voltage regulator module as the core, can convert 10 - 16V DC power supply to 24V DC power output. With high conversion efficiency, stable performance and other characteristics, have input voltage, output current, over temperature, output short circuit and other automatic protection function. And can recover to normal work after the fault elimination. Especially suitable for car audio, LCD TV, radio, monitoring system and mechanical equipment, etc.

Specification:
- Input voltage: DC10V-16V
- Input current: >=10A
- Output voltage: DC24V-+5%
- Output current: 5A (MAX)
- Ripple: <120mV
- Efficiency: >85%
- Stereo current: <100mA
- Leading cable: 120mm
- Size: 90*65*28 mm(L*W-H)

Note:
- Input: red cable connects to the positive pole of battery/power supply
- Output: red cable should connect to the positive pole, while the black cable should connect to the nehative pole.
- Please make sure the power cable first, then power, do not connect wrong the polarity, no short curcuit.
- Avoid the high humidity and dust; the environment temperature should not be over 60 degree C.
- The converter should be placed in the place with good ventilation, no flammable substances, no water.
- Recommend that the input terminal connect to the back of the power protective switcher so that when the switch to cut off the battery, the storage battery power  connected to power through the buck regulator, causing security risks.

Package included:
- 1 x  DC-DC12V to 24V 5A 120W Aluminum Case Boost Power Module
