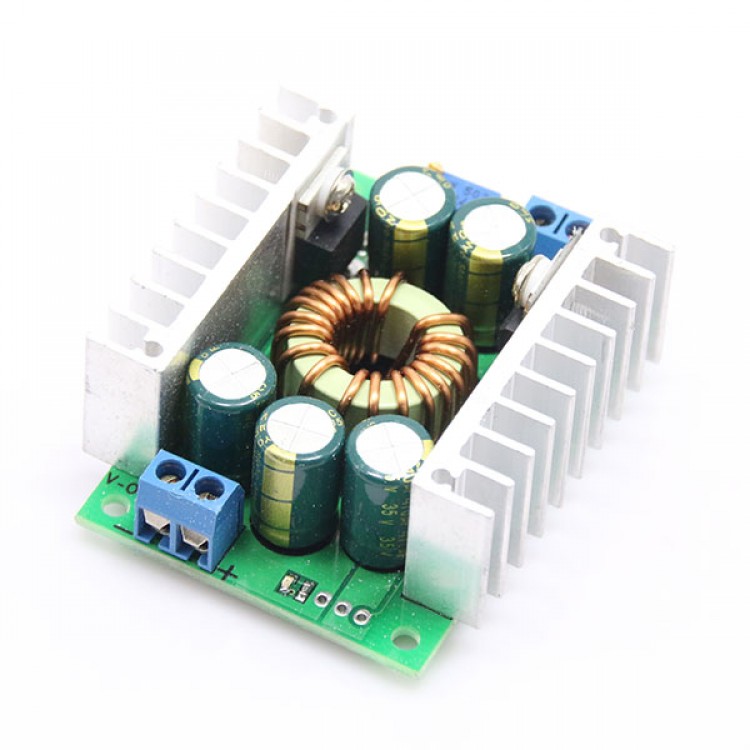

Dc to DC 4.5-30V to 0.8-30V Voltage Converter 12A 200W Step-down Regulator Module For Amplifier Computer LED Drive
Specifications:
- name:200W step up-module
- type:The isolation step down module (BUCK)
- Input voltage:4.5-30V input
- Input current:12A(MAX) over 6A,pls use heatsink
- stastic current:15mA
- Out put voltage:0.8-30V continues adjustable
- Output current:8A MAX ,over 8A pls use heatsink
- Output power: 100W (200w if use heatsink)
- working temperature:-40~+85C
- working frequency:260KHz
- Converter efficiency:95.9% max
- short-circuit protection:Yes
- Input reverse connect protection:no
- installation method: 4pcs 3mm screw
- Connect method:Terminal welding free ,the input IN and OUT for the output
- Size:63mmx52mmx23mm
- Weight:68g
Package list:
- 1 x Dc to DC 4.5-30V to 0.8-30V Voltage Converter 12A 200W Step-down Regulator Module
