Comparison of DC10G & DC10K:
Similar functions, but with different wiring.

Description:

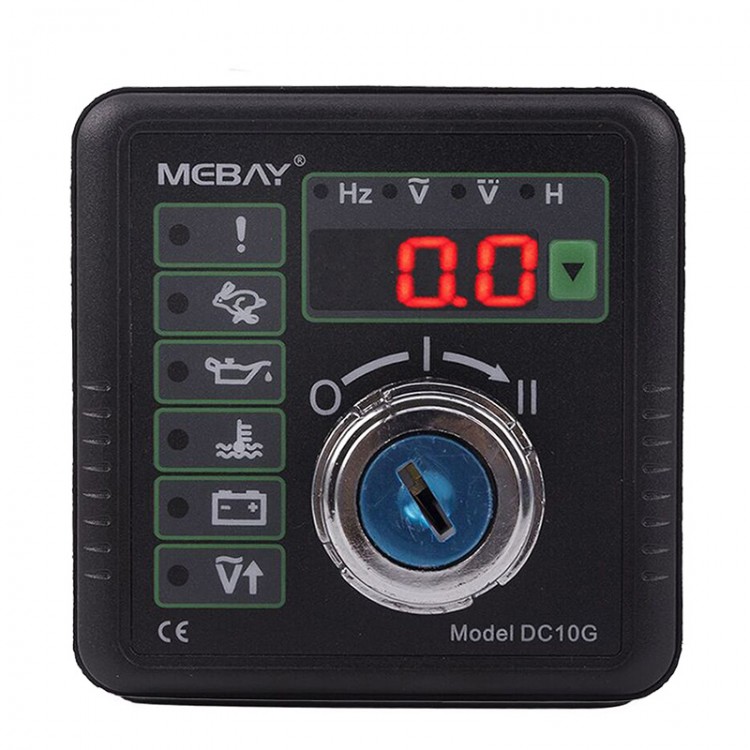

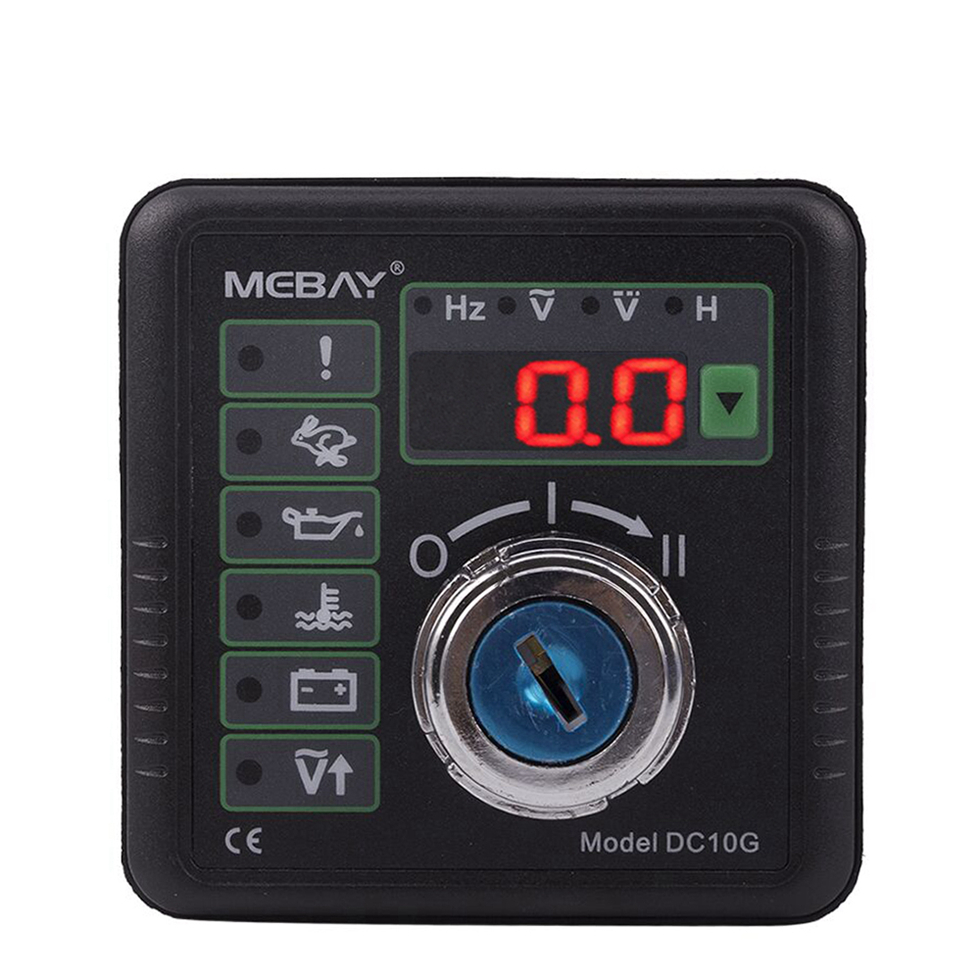

DC10G is a controller for manual start and stop of engine. 4-digit LED digital tube displays generator set frequency, voltage, battery voltage, and accumulated working time. It has various parking protections and alarm indication, which can conveniently monitor the working status of your generator set.

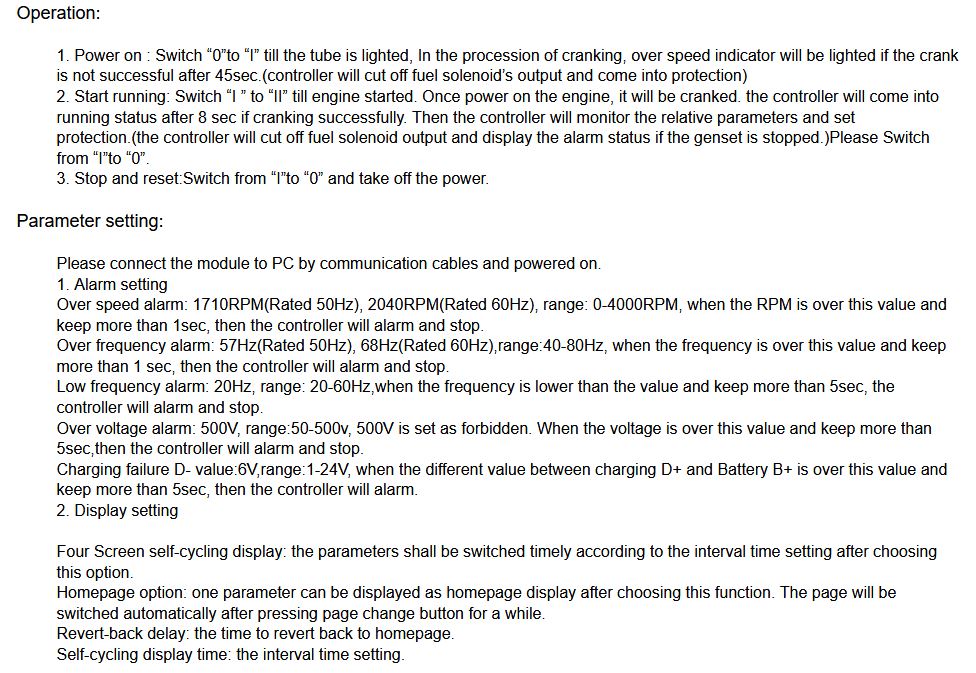

The controller can be connected to a computer through a data line, and controller parameters can be set by software to easily match generator set of more specifications.

Features:
- Use 32-bit imported high-performance single-chip control;
- 4-digit digital tube display, which can be switched automatically or manually;
- Use car start key, durable;
- Parameters can be set through computer connection;
- With multiple alarm protections;
- Designed with waterproof ring, and the panel after installation is splash-proof;

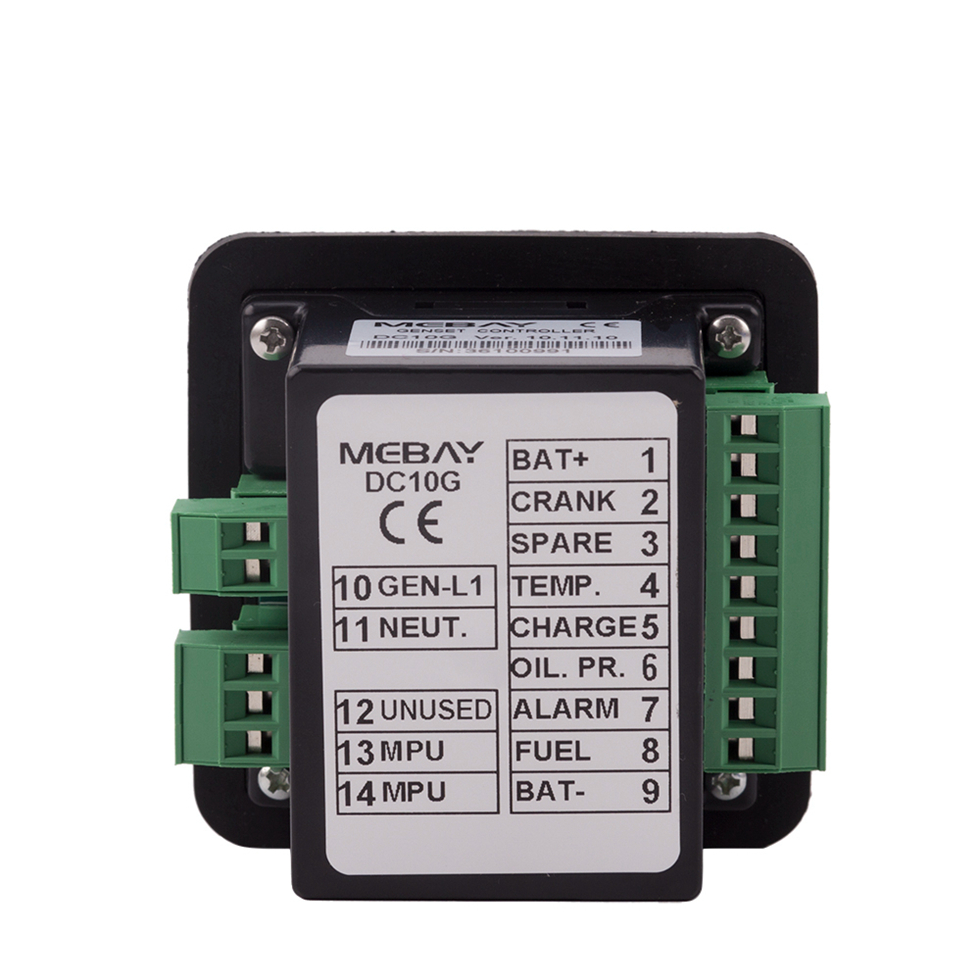

- All connections are completed through European-style terminal blocks, making it easy and convenient to assemble, connect, maintain and replace the equipment.

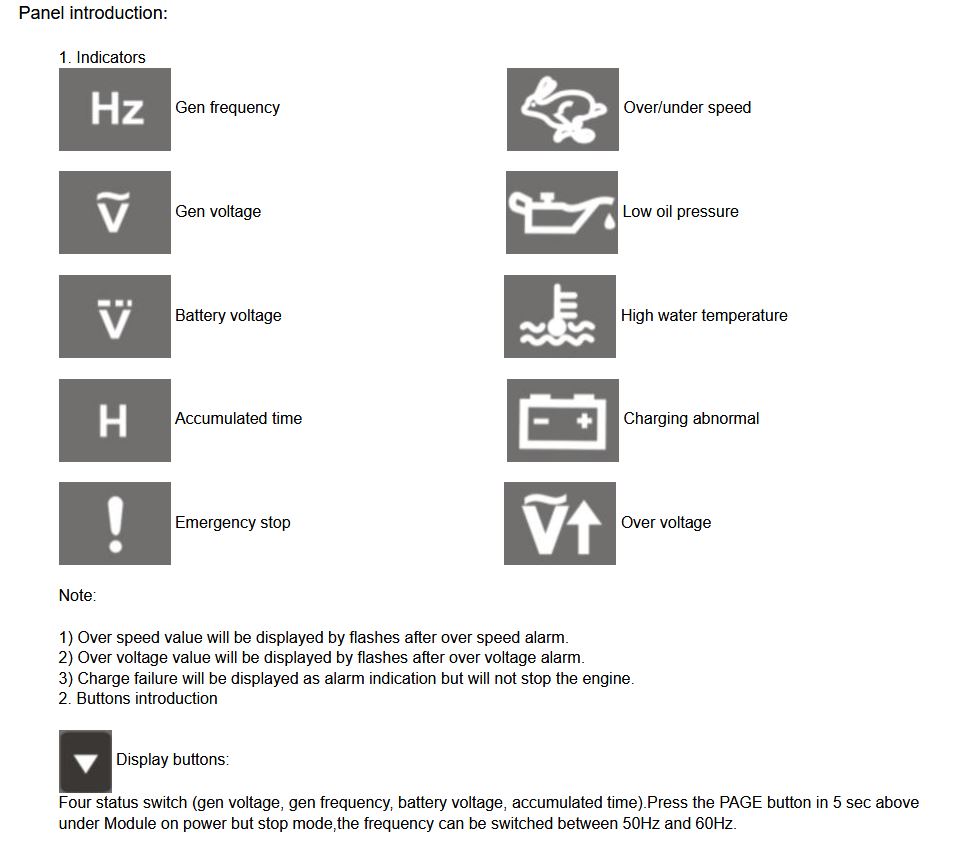

Parameter Display:
- Generator voltage V;
- Generator frequency Hz;
- Engine battery voltage V;
- Cumulative operating time H of the unit.

Alarm Protections:
- Overspeed
- Overclocking
- Low oil pressure
- High water temperature
- External immediate parking alarm
- Power generation overvoltage
- Charging failure warning

Specifications:
- Power supply input: 8-33VDC
- Power consumption: MAX. 2W
- Power generation input: 15-300VAC, 50/60Hz
- Speed input: Freq 300Hz～10kHz
- Oil valve output: MAX. 16A
- Motor output: MAX. 10A
- Excitation output: MAX. 80mA
- Alarm output: MAX. 16A
- Working temperature: -30 to 75℃/-86℉ to 167℉
- Storage temperature: -40 to 85℃/-104℉ to 185℉
- Dimensions: 78 x 78 x 72mm/3.1 x 3.1 x 2.8"
- Hole size: 67 x 67mm/2.6 x 2.6"
- Product weight: 280g/0.6LB

Package Included:
- 1 x Set of Genset Controller

Note:
- Battery is not included in the package.
