Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $43.06 | $42.18 | $40.86 | $39.11 | Contact US |

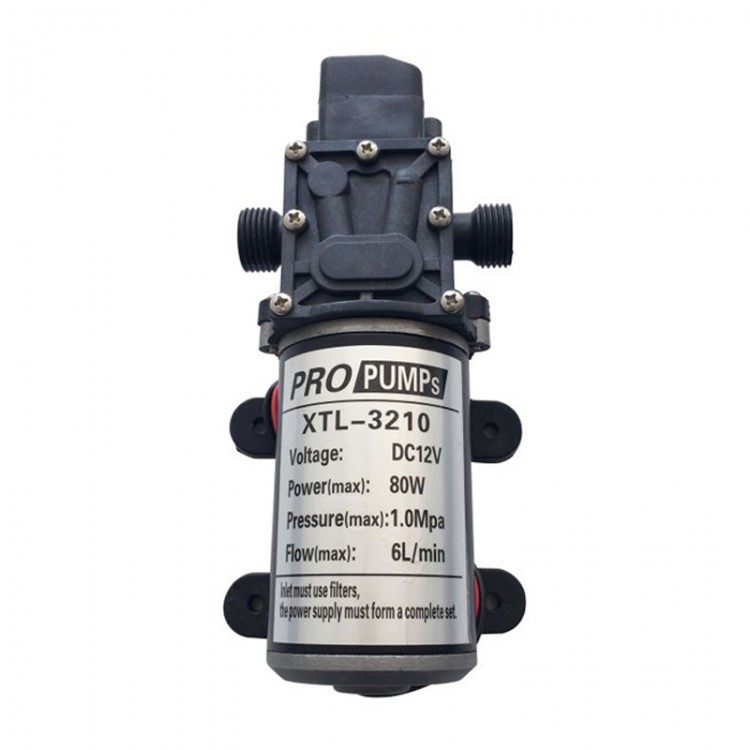

DC12V 80W 6L/min Micro Diaphragm Pump Pressure Switch for Agriculture Car Washing 3210YD-12-80
Parameters:
- Voltage: DC 12V
- Power: Max. 80W
- Maximum Pressure: 1.0Mpa
- Working Pressure: 0.6Mpa
- Max.Flow: 6L/min
- Vertical Suction Distance: 1.5M
- Lift: 60M
- Model Number: 3210YD-12-80
- Material: Plastic
- Pump Length: 182.8mm
- Hole Spacing: 73.1 x 55.5mm
Pump with Pressure Type Switch:
- When the outlet is block without leakage, it will automatically cut off the power and its motor stops working. When the outlet is open, it starts to work again. It is recommended that you test with a pressure tester to figure out an appropriate blow head for this pump.
- The maximum pressure is already set in factories. The maximum pressure is not adjustable type.
- Application: fro washing, flowering, spraying pesticides and other forms of agricultural uses.
- Inlet and outlet 6.5mm in diameter
Package Included:
- 1 x Micro Diaphragm Water Pump
Note:
- Only pump, other accessories are not included in this package.
- Your power cable for the DC motor does not need to distinguish between positive and negative.
