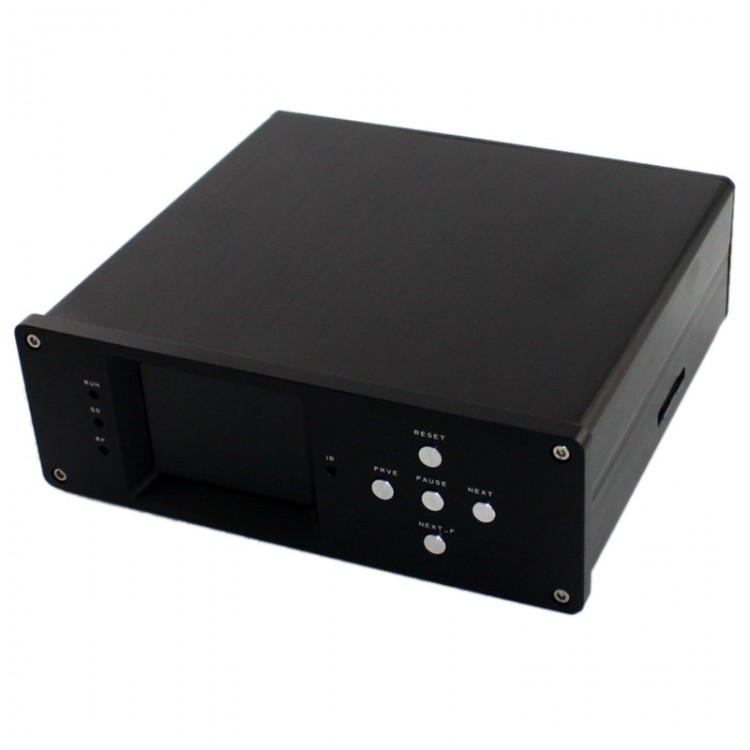

DC12V SD Digital Turntable Lossless Music Player Coaxial 2.8" TFT LCD Support MP3 APE FLAC WAVE CUE
Description:
- Original AK4118, STM32F407ZET6
- Electrolytic capacitor uses imported 1000UF/35V one, other capacitors using the famous ones, full wave bridge rectifier circuit,
- High precision chip resistor, guarantee the good signal to noise ratio
- PCB, 1.6mm thick and double side panels, 2 ounce of copper
- 2.8 inch TFT color LCD screen
- With the SD card firmware update function, the firmware we released APP.bin placed in the SD card directory, then boot update, the update time is only 1-2 seconds.
- Only support the first level sub directory, the maximum support 64GB memory card (memory card must be CLASS6 and above levels, must be HC card)
- Supports JPEG format background map, only need to be placed in the same folder, the root directory bkphoto.jpg as the default background map
- Aluminum chassis
Basic parameters:
- Voltage: DC12V (+ outside -)
- Vutput mode: coaxial
- Vupport format: WAVE:44K1-192K 16Bit-24Bit ; FLAC:44K1-96K 16Bit-24Bit ; APE:44K1 (version 3.97-3.99 16Bit, below compression ratio 3000 (not supported by the version and the compression rate can be converted to a format conversion tool, will not lose sound quality))
- MP3: full support (no sampling rate and bit rate)
- CUE: supports WAVE and FLAC songs, using method: the CUE file and the audio file in the same folder
Package included:
- 1 x Music Player
