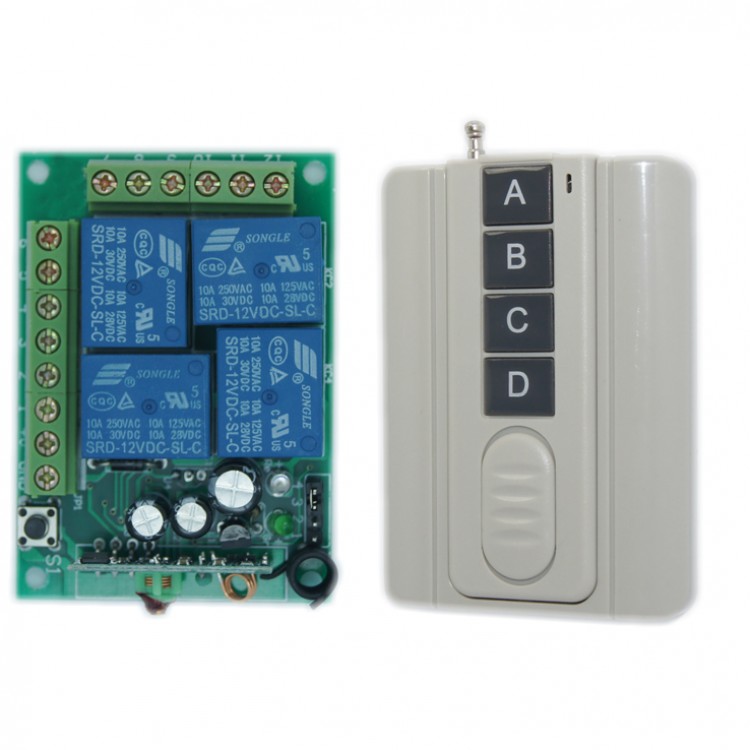

DC12V Wireless Intelligent Remote Control Switch 4CH 315MHZ Transmitter Receiver for 500m DIY

DC12V Wireless Intelligent Remote Control Switch 4CH 315MHZ Transmitter Receiver for 500m DIY

Description:
This product is for remote typrs like switch, pump, motor ,socket, LED, alarm, door, curtain, car , vehicles, MP3, lights ,car and thter security products. It is for DIY. With 12V power supply, there are 4 independent relays signal output. There are normally open end, close end and common end (no voltage). It is applied for the following conditions.One is, 12V output, two is, seriel connection to the open end and common end to other circuit to control (recommend the voltege is 3V-250V, 0.1A-10A load).

Specifications:
Transmitter:
- Operating Voltage: DC12V (12V 27Abattery)
- Operating Frequency: 315 MHz
- Shock resistance: 4.7M
- Copy range: 2264 or 1527
- Operating Temperature: -30°C ~ +70°C
- Humidity: <95%
- Size: 88*36*14mm
- Modulation: ASK
- Encoding mode: Welding/encoding
- Distance: 1000m

Receiver:
- Operating Voltage: DC12V
- Operating Frequency: 315 MHz
- Working: Self-locking, Interlock,inching
- Operating Temperature: -30°C ~ +70°C
- Humidity: <95%
- Size:69*48*18mm(inner board);75*55*29mm(with shell)
- Code mode: Smart learning
- Output: 4 channel relay signal output
- With shell
- Max. load: inductive<=3.5A,Resistive current<=6A

Package included:
- Remote Control Switch x 1
- Receiver x 1
