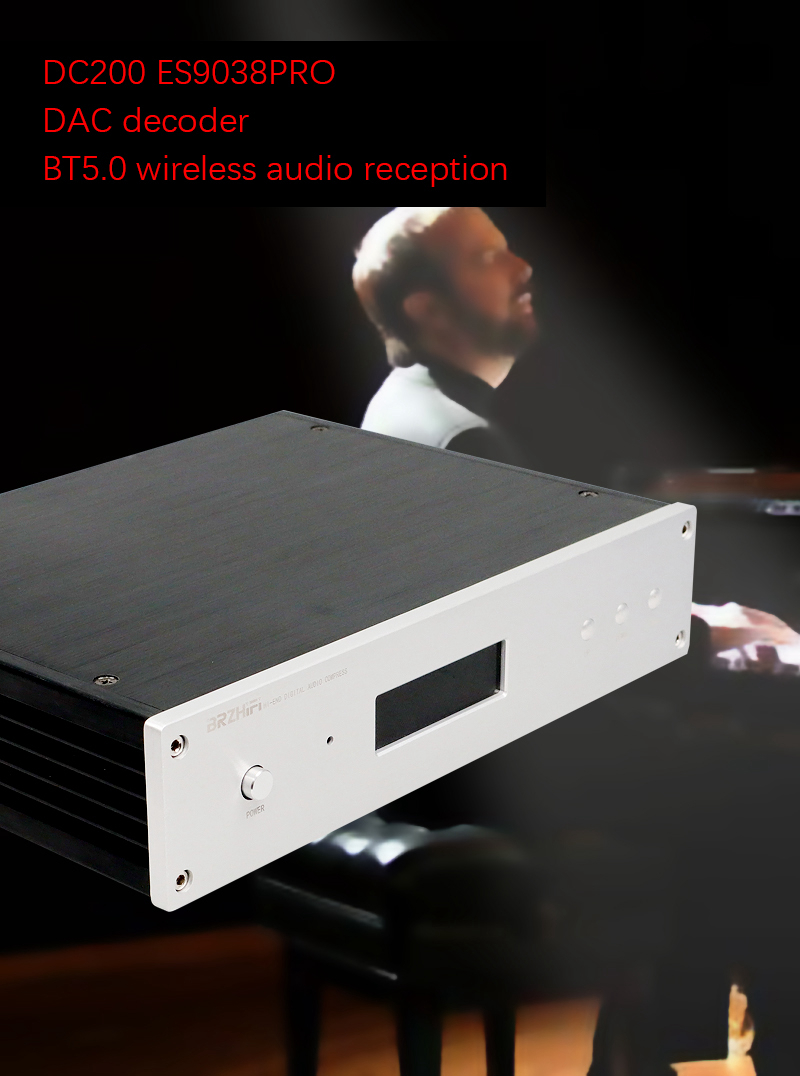

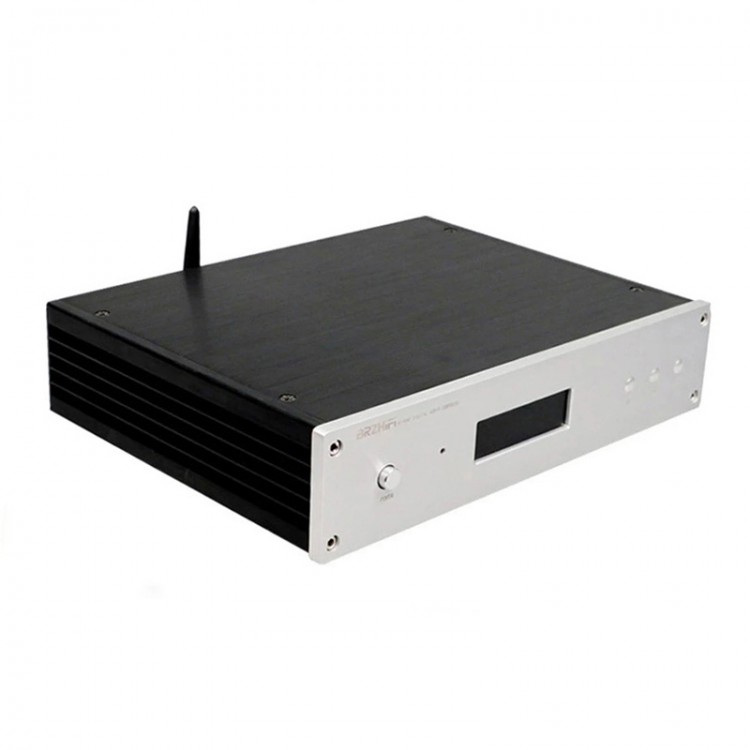

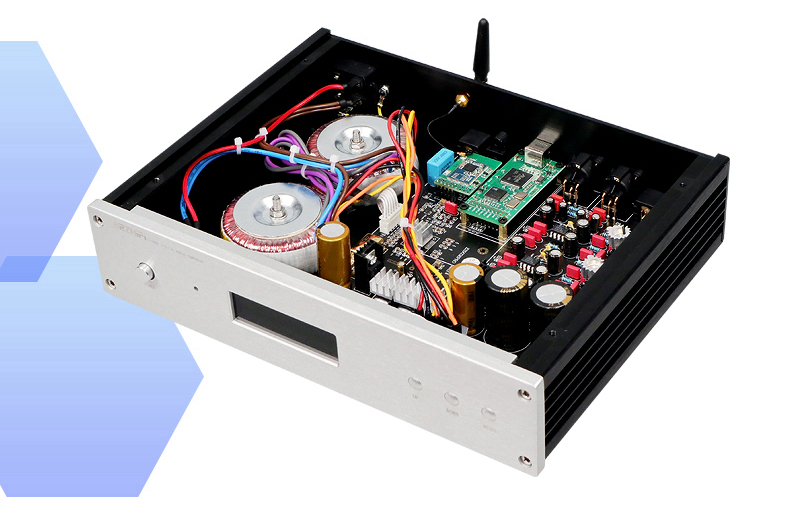

DC200 DAC Bluetooth Receiver USB Digital Interface ES9038PRO Advanced Enhanced Configuration DAC-DC200-4

DC200 DAC Bluetooth Receiver USB Digital Interface ES9038PRO Advanced Enhanced Configuration DAC-DC200-4

DC200 User Manual:
Link: https://pan.baidu.com/s/1tnD1iNuB_AfViXMXCzXxgw
Extraction code: 2333

For Amanero driver installation and FOOBAR setup tutorial:
Link: https://pan.baidu.com/s/1uUn-AAqjN9kWxfEEx-_zzw
Extraction code: 2333

Features:
- DC200 fully balanced decoder: precision casting; quality assurance
- Hard decoding restores mastering-grade sound quality

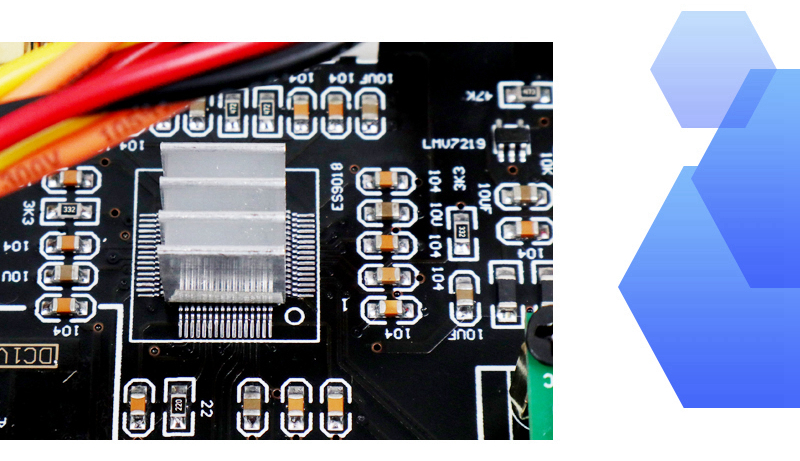

- ES9038PRO decoding chip: SNR up to 129DB. It supports 32BIT, I2S/DSD/SPDF input; DNR: 135DB/MONO, 129DB/8CH, THD: -120DB. With the highest indicators and analytical power, it can reveal the most subtle places of music
- Supports hard decoding DSD64, DSD128, DSD256, and DSD512
- USB digital interface for AMANERO, with better performance than that for XMOS. Support up to DSD512 PCM384K

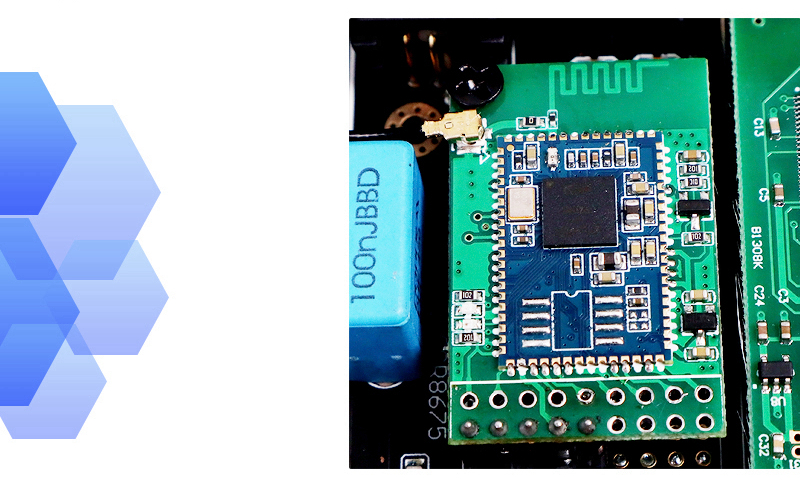

- Bluetooth 5.0 CSR8675 receiver module: BT5.0 chip makes transmission faster and more stable. Bluetooth 10M+ effective transmission distance. Support for APTX-HD, LDAC high-definition transmission protocol, APTX-LL low-latency technology. Support for APTX HD 48K and LDAC 96K HD audio transmission

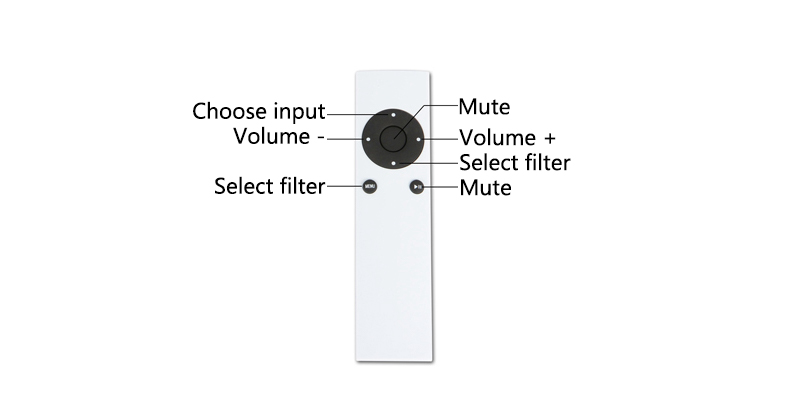

- With a remote control
- Fully linear independent power supply
- Support optical and coaxial input
- USB port supports mobile phone or tablet with OTG output

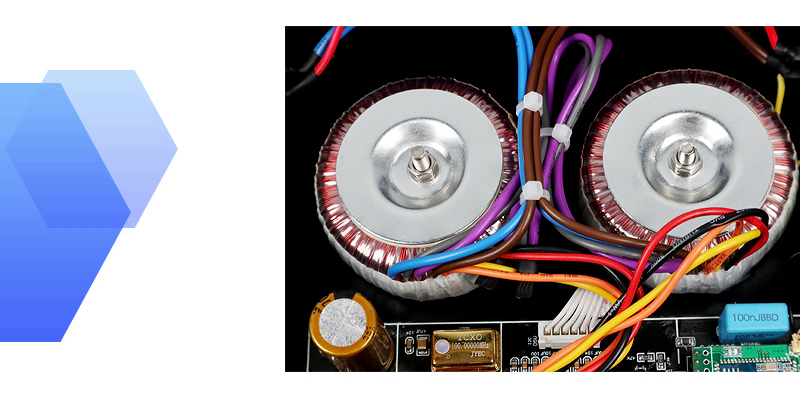

- Power Transformer: 2 imported transformers (for TALEMA) as the core, characterized by mellow tone and quietness

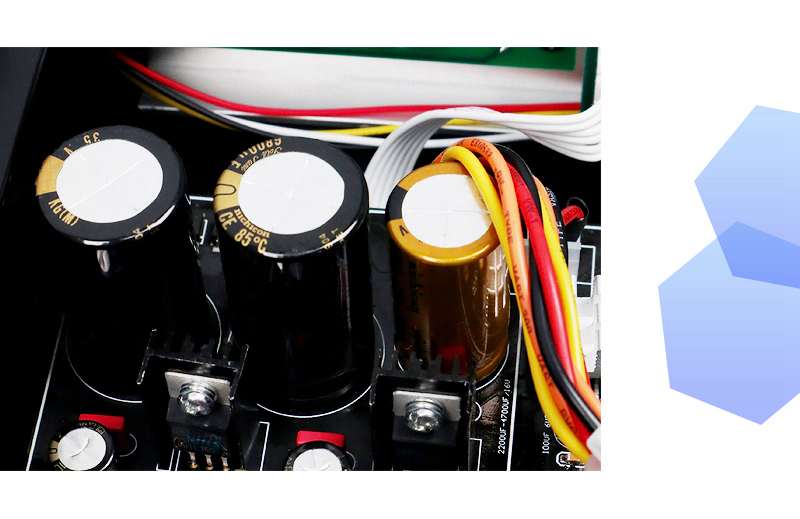

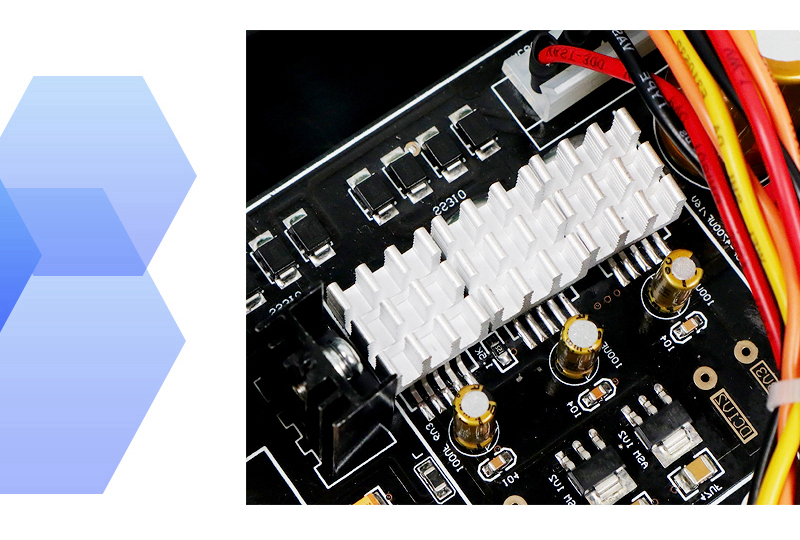

- LDO regulation: The LT1963 low dropout regulator is optimized for fast transient response. Provide 1.5A current, low noise 40MVRMS (10HZ to 100KHZ)

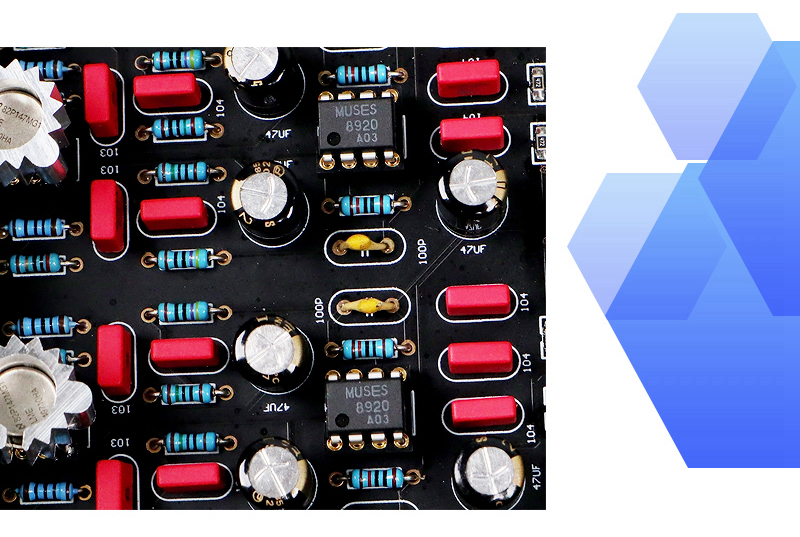

- Output circuit: The official LPF, I/V output circuit consists of 2 dual op amps and 2 single op amps, which can be upgraded according to personal preferences. The peripheral components are equipped with imported non-inductive resistors and capacitors (for WIMA), making the sound natural and better penetration

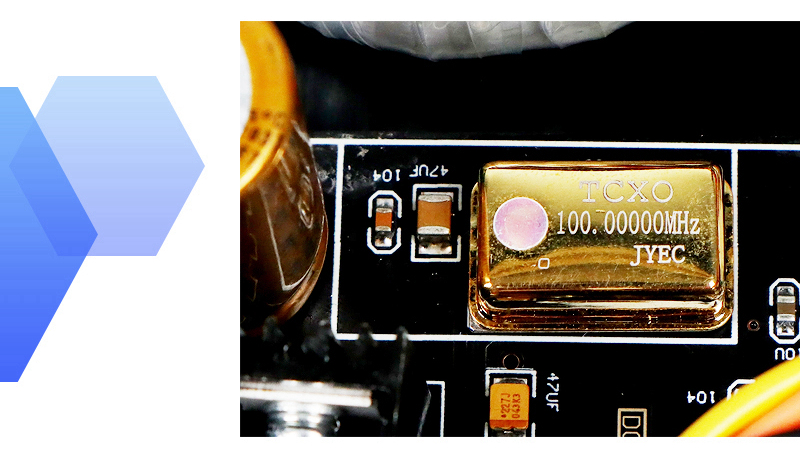

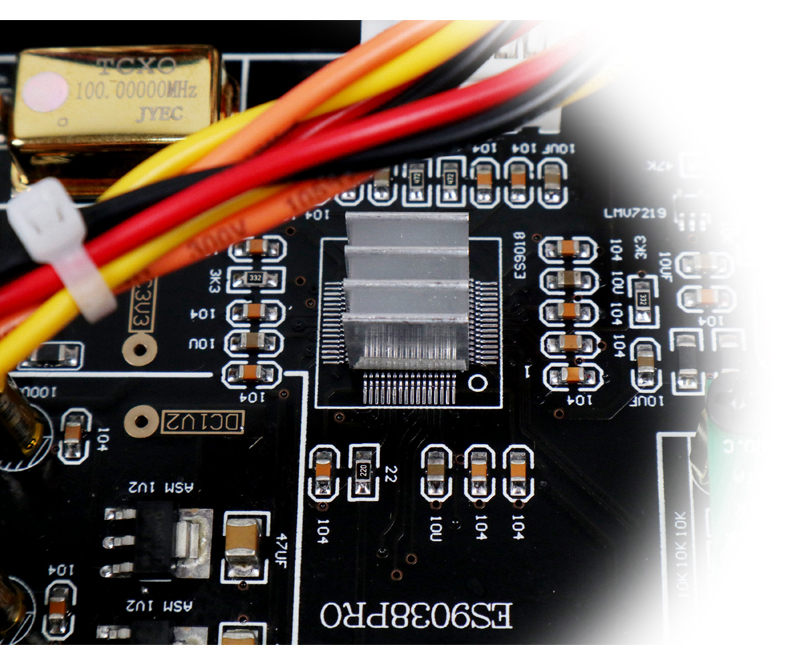

- Clock crystal oscillator: 0.1PPM high-precision low-phase noise temperature-compensated crystal oscillator is used to provide the core reference frequency for the ES9038PRO chip. The effect positioning is accurate, and no details are omitted

Specifications:
- Model: DC200
- Decoding scheme: ES9038PRO single core
- Product Dimensions: 280 x 62 x 212mm/11 x 2.4 x 8.3"
- Product weight: 3KG/6.6LB

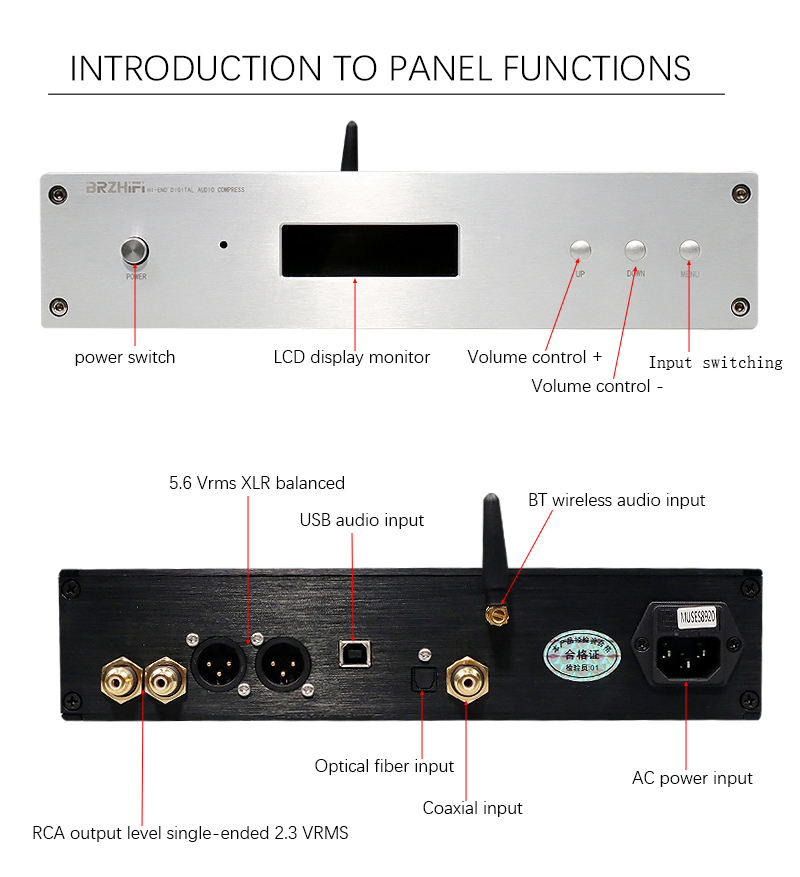

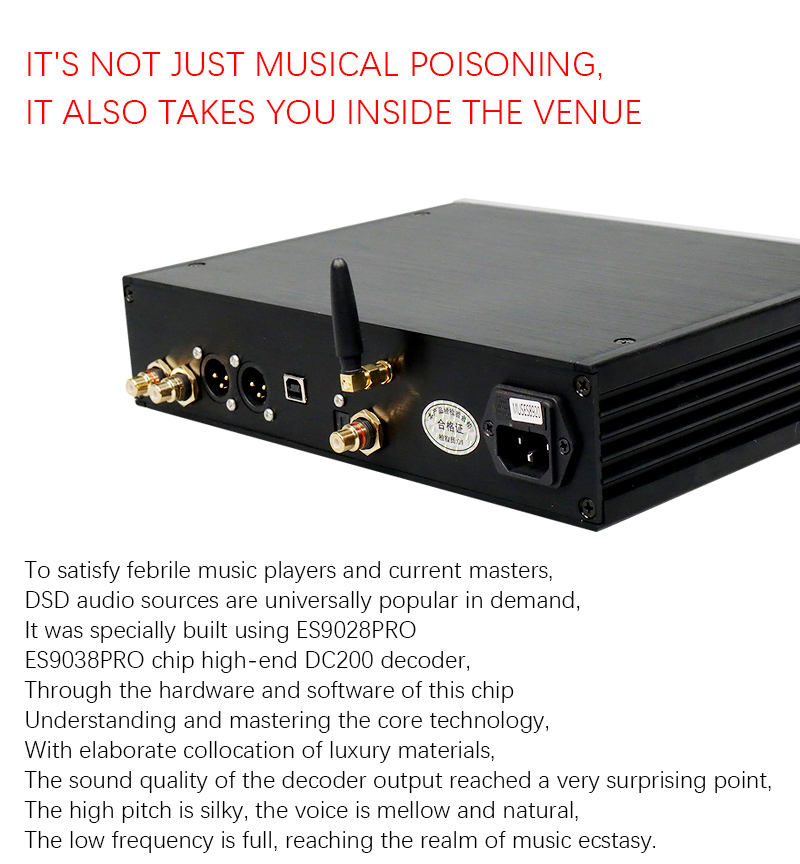

- Digital Input: USB/Mobile OTG, BLU, COAX (coaxial), OPT (optical)
- Output interface: single-ended analog signal and balanced analog signal
- USB input: PCM 44.1K~384K 24/32bit DSD64~DSD512; for Windows/Vista/Linux/Mac OSX/Daphile; driver is needed for Windows
- Coaxial and optical: PCM 44.1K~192K 16~24bit (COAX input supports DOP64)
- Bluetooth input: for AAC/SBC/APTX/APTX-LL/APTX HD/LDAC
- Dynamic range: ≥120dB, distortion rate 0.0005%
- Frequency Response: 20Hz-20kHz +/-0.08dB
- Line output: RCA output level single-ended 2.3Vrms, XLR balanced 5.6Vrms
- Rated power: 18W AC110~AC240V (AC110V needs to be customized)

Package Included:
- 1 x Main Unit
- 1 x Power Cable
- 1 x USB Cable
- 1 x Bluetooth Antenna
- 1 x Remote Control

Note:
- Its USB port does not support U disk or hard disk input.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
