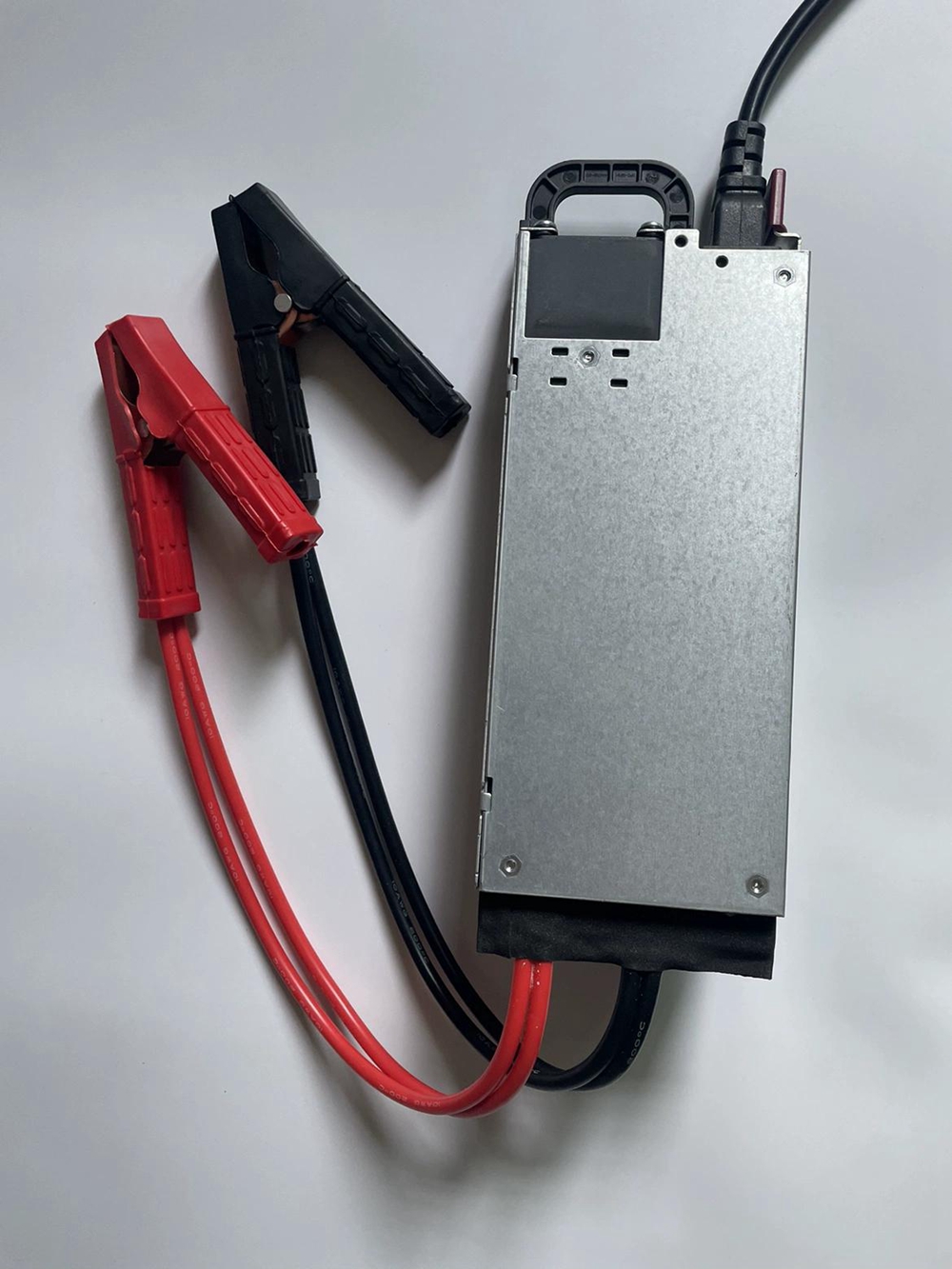

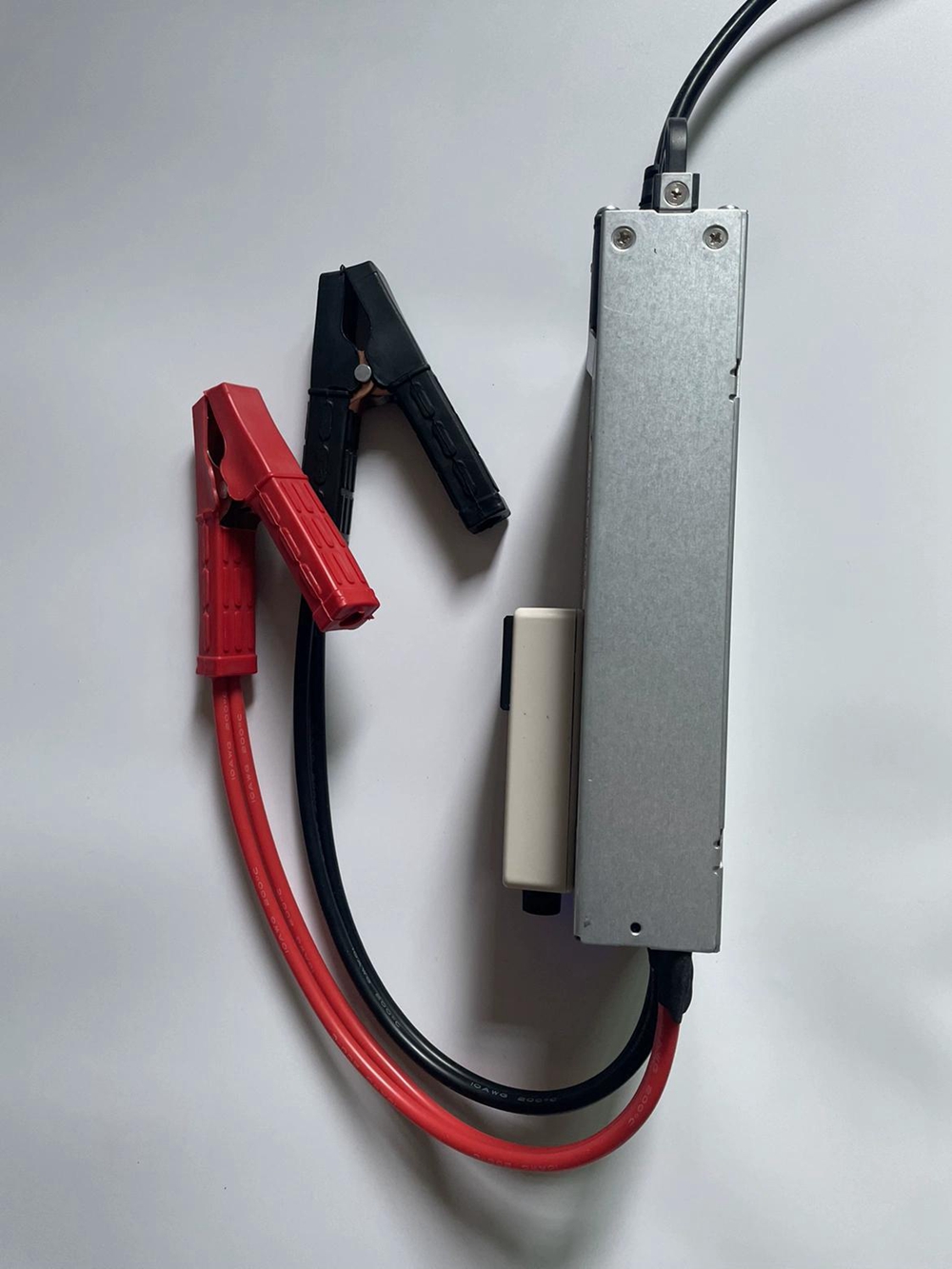

DC3-15V/2-100A Adjustable Anti-reverse Connection Iron Phosphate Ternary Lithium Battery Charger for Vehicle
Specification:
- Input voltage: AC100 - 240V, 50-60Hz
- Output voltage: DC 3 - 15V adjustable
- Output current: 2 - 100A adjustable
- Charging method: constant current first, then constant voltage, and standby after the battery is fully charged
- Heat dissipation method: smart cooling fan
- Equipped with anti reverse connection function, supporting short circuit protection and reverse connection protection. After protection, it can be shut down and restarted for normal use, with unlimited usage.
- Product size: 21 x 8.5 x 6cm
- Net weight: 1.2kg
- Packaging weight: about 1.6kg
Usage:
- First step: Firstly, Do not connect the battery to the charger, please switch on the power supply, adjust the voltage knob to adjust the voltage, refer to the voltage display on the display screen (4S LiFePo4: 3.65V *4= 14.6V, 3S Li-ion: 4.2V *3=12.6V), adjust to the voltage you needed.
- Second step: adjust the current to the minimum, after connecting the battery, adjust the current from small to large, adjust to the current you needed. (In the process of charging, do not adjust the voltage knob, otherwise there will be overcharge or undercharge).
- If it shows the voltage you set, and the current goes to zero, it's already full charged.
Note:
- Do not charge batteries above 15V.
- Lead acid batteries do not support high current charging. Please use 1/10 of capacity current charging.
- For example: 100A lead-acid battery, to use 10A current charging! The time must meet 8-10 hours, if the charging is too fast, the current will be too large to damage the battery. Lead-acid batteries can be charged at around 14.4 volts. Depending on the different brand of the battery, the voltage varies slightly, please refer to the instruction of the battery label.
Package Included:
- 1 x Charger
- 1 x Input Cable (with Clamp)
- 1 x Output Cable (with Clamp)
