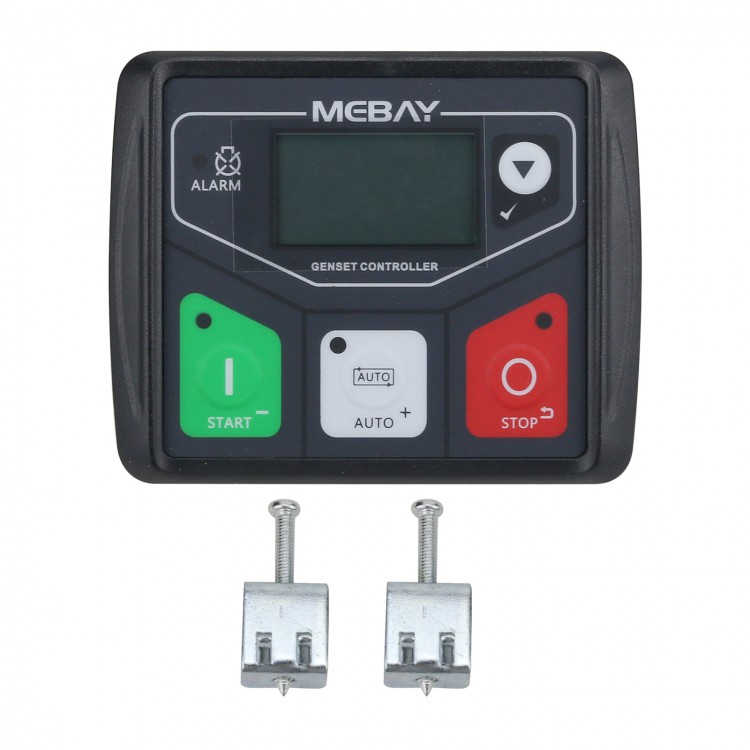

DC30D Genset Controller Generator Controller Generator Control Panel For Diesel Gasoline Gas Generators

DC30D Genset Controller Generator Controller Generator Control Panel For Diesel Gasoline Gas Generators

Description:
This controller is specially designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets. The controller has manual control and automatic control functions, and can control the automatic start and stop of generator set through a remote start signal, which is suitable for stand-alone automation;

This controller uses high-resolution dot matrix LCD to display the relevant parameters of generator set. The LCD screen can display multiple current fault states at the same time, and can effectively implement protection and shutdown when generator set is not working properly.

It has a built-in display interface such as simplified Chinese, English, etc., and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the buttons on controller panel or through USB interface using a PC, which can be widely used in various types of generator automation systems.

Performance & Features:
1. Use 32-bit imported high-performance MCU control;
2. High-resolution dot-matrix LCD screen, with switchable Chinese and English, language can be customized according to customer needs;
3. Boot interface can be customized to display your LOGO or contact information;
4. The panel is made of PC material, which is effectively waterproof, oil-proof, and UV-proof, with good operating feeling and long service life;
5. Control and protection function: Realize automatic start/stop of generator set, perfect fault display and protection function;
6. Various combinations of starting conditions (speed, frequency, oil pressure) are optional;
7. Collect and display various engine and generator parameters;
8. Setting interface adopts multi-level menu type classification design, which is convenient and quick to operate;
9. With 5-way relay outputs, 3 ways of which are configurable, each with more than ten kinds of functions for selection;
10. With 4-way configurable inputs, three of which are analog and switch values can be reused;
11. Designed with waterproof ring, the protection performance of the panel after installation reaches IP54;
12. Modular design: All connections are completed through European style terminal blocks, which makes it easy and convenient to assemble, connect, maintain and replace the equipment.

Parameter Display:
- Engine speed;
- Engine oil pressure
- Engine water temperature;
- Engine fuel level;
- Engine battery voltage;
- Generator voltage L-N;
- Generator current A;
- Generator frequency Hz;
- The cumulative number of starts of the unit;
- The current operating time of the unit;
- Controller power-on time.

Alarm Protections:
- Overspeed
- Under-speed
- Low oil pressure
- High temperature
- Low fuel level
- Battery overvoltage
- Battery low-voltage
- Overclocking
- Underfrequency
- Power generation overvoltage
- Power generation undervoltage
- Load overcurrent
- Sensor open circuit
- Loss of speed signal
- External immediate alarm
- Emergency stop
- Low water level alarm
- Start failed
- Charger failed to charge
- Downtime failed

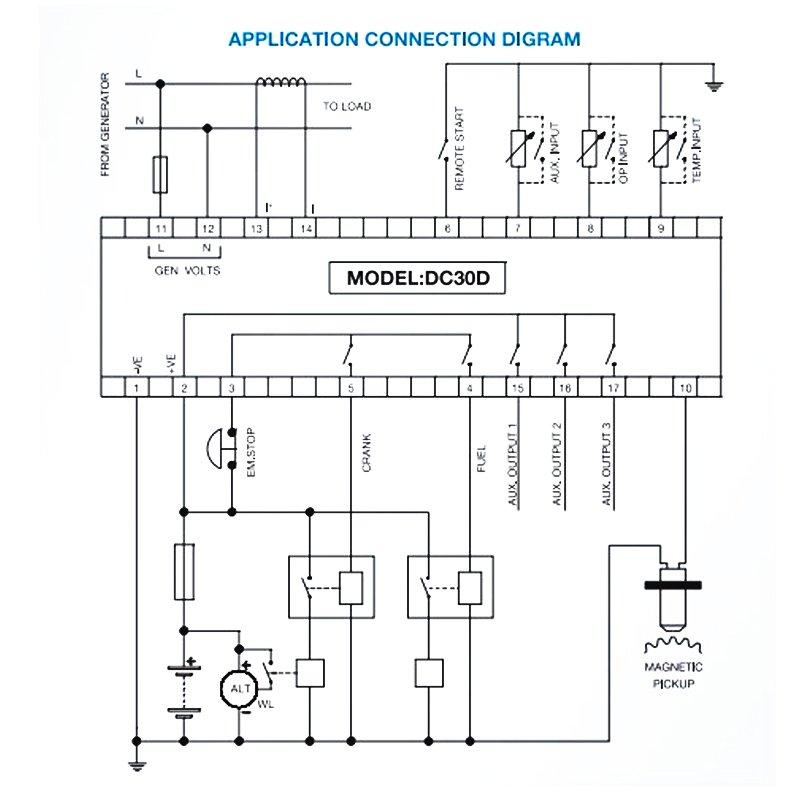

Specifications:
- Working voltage: DC8V to 36V continuous power supply
- Whole machine power consumption: Standby: 24V, MAX. 1W; Working: 24V, MAX. 2W
- AC voltage input: one-phase two-wire, 20VAC-450VAC (ph-N)
- Current transformer secondary current: rated 5A
- Engine speed signal range: 50-9000Hz
- Maximum cumulative running time: 9999.9 hours (minimum storage time 6 minutes)
- Fuel output: 1Amp DC + VE power supply voltage output
- Motor output: 1Amp DC + VE supply voltage output
- Configurable relay 1: 1Amp DC + VE supply voltage output
- Configurable relay 2: 1Amp DC + VE supply voltage output
- Configurable relay 3: 1Amp DC + VE supply voltage output
- Switch input: effective when connected to battery negative pole
- Working conditions: -20 to 65℃/-68℉ to 149℉
- Storage conditions: -40 to 85℃/-104℉ to 185℉
- Protection grade: IP54, when a waterproof ring is installed between the controller and the control panel
- Insulation strength: Apply AC1.5kV voltage between AC high-voltage terminal and low-voltage terminal, and leakage current within 1min is not more than 3mA
- Dimensions: 106 x 86 x 45mm/4.2 x 3.4 x 1.8"
- Hole spacing: 78 x 66mm/3.1 x 2.6"
- Product weight: 0.25Kg/0.6LB

Package Included:
- 1 x Set of Genset Controller

Note:
- Battery is not included in the package.
