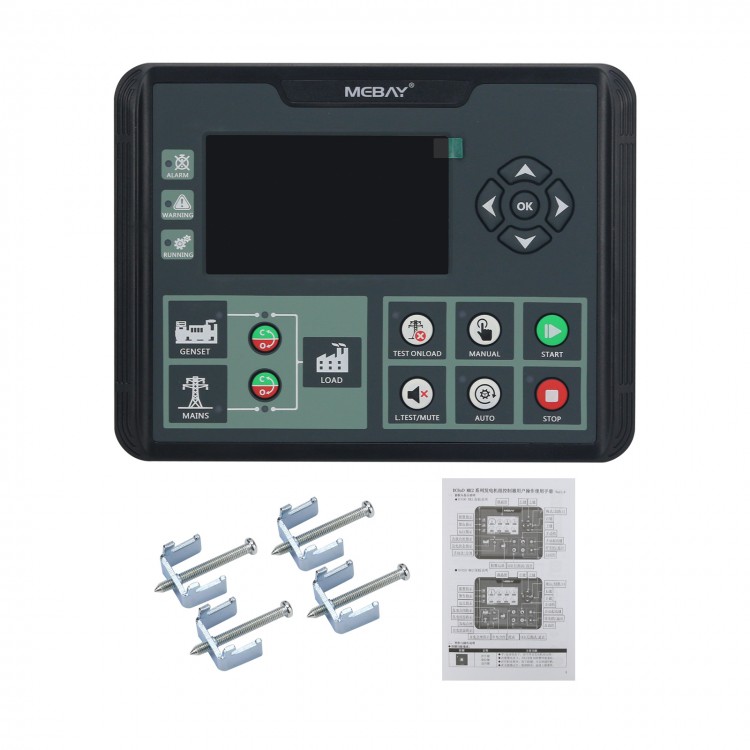

DC62D Diesel Genset Controller Generator Controller Module w/ Electric Supply Monitor AMF Function

DC62D Diesel Genset Controller Generator Controller Module w/ Electric Supply Monitor AMF Function

Version Introduction:
* DC60D: For one machine automation, control the automatic start and stop of generator set through remote start signal;
* DC62D: On the basis of DC60D, add electric supply monitoring and electric supply/generation automatic switching control (AMF) functions, which is suitable for a single-machine automation system composed of one-way electric supply and one generator set.
* DC60DR: Add RS485 interface on the basis of DC60D;
* DC62DR: Add RS485 interface on the basis of DC62D.

Description:
It is specially designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline, and gas generator sets and has parameter setting functions.

This controller uses a 4.3-inch TFT color large-screen LCD to display related parameters of generator set, a new and original UI design, and parameters are displayed by analog pointer and digital. The LCD screen can display multiple current fault states at the same time, and can effectively implement protective shutdown when the generator set is not working properly.

It has built-in simplified Chinese, English and other display interfaces to choose from, and any language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through buttons on controller panel, or adjusted and monitored through USB port or RS485 interface using a PC, which can be widely used in various types of generator set automation systems.

Main Features:
- Use 32-bit imported high-performance MCU to control;
- 4.3" TFT color large screen LCD display, with switchable Chinese and English, various languages can be customized according to customer needs;
- Pointer instrument and digital display UI interface, brand new original design, integrating dynamics and precision;
- Screen protection adopts hard-screen acrylic material, which is abrasion-resistant and scratch-resistant;
- Using silica gel panel, effective waterproof, oil-proof, anti-ultraviolet, good operation feeling and long service life;
- With a USB interface, parameters can be set and monitored in real time through USB interface, and parameters can be set when the controller is not powered;
- With RS485 interface, the function of "three remotes" can be realized by using protocol for MODBUS; (Only for DC60DR and DC62DR)
- Collect and display a variety of engine and generator parameters;
- The function and status display of input and output ports are clear at a glance;
- Setting interface adopts multi-level menu type classification design, which is convenient and quick to operate;
- Built-in real-time clock, with functions of duty planning and maintenance planning: through setting, it can realize the arrangement of monthly or weekly duty schedule of generator set, and realize the arrangement of generator monthly or weekly maintenance plan, so as to use power generation more flexibly unit;
- Maintenance countdown function, can set maintenance time or date;
- With black box function, real-time storage of unit related parameters when a fault alarm occurs, which is convenient for finding the cause of unit failure;
- Equipped with 6-way relay outputs, of which 4-way outputs are configurable, each with more than 20 functions to choose from, and 3 sets of outputs are passive contacts;
- It has 5-way configurable switch inputs, each with more than 30 functions to choose from;
- Equipped with 3-way sensor analog inputs, 6 sensor input types can be freely combined and configured, and multiple display units can be configured, which is more suitable for dual oil pressure and dual water temperature units;
- Unique battery charging control, which can control the work of the charger according to battery voltage, effectively preventing battery from overcharging and losing electricity;
- Sensor curve can be customized through the panel buttons and PC software;
- Suitable for three-phase four-wire, three-phase three-wire, single-phase two-wire, two-phase three-wire (120V/240V) 50/60HZ power supply system;
- A variety of starting conditions (speed, frequency, oil pressure, charging) combination can be selected;
- Control and protection function: realize automatic start/stop of generator set, ATS switch and perfect fault display and protection function;
- Equipped with waterproof ring, the protection performance of the panel after installation reaches IP54;
- Modular design: All connections are completed through European-style terminal blocks, making it easy and convenient to assemble, connect, maintain and replace the equipment.

Parameters Display:
- Engine speed;
- Engine oil pressure;
- Engine cooling water temperature;
- Engine oil temperature;
- Engine block temperature;
- Unit case temperature;
- Engine fuel level;
- Engine battery voltage;
- Engine charging voltage;
- Electric supply frequency (only for DC62D and DC62DR);
- Electric supply phase voltage L-N (only for DC62D and DC62DR);
- Electric supply wire voltage L-L (only for DC62D and DC62DR);
- Generator three-phase voltage L-N;
- Generator three-phase line voltage L-L;
- Generator three-phase current A;
- Generator frequency Hz;
- Generator power factor COSφ;
- Generator active power KW;
- Generator apparent power KVA;
- Generator reactive power KVar;
- Generator current load rate %;
- Generator accumulated average load rate %;
- Electric energy Kwh this time produced by generator;
- Accumulated electric energy Kwh produced by generator;
- The cumulative number of starts of the unit;
- The current operating time of the unit;
- Cumulative operating time of the unit;
- Countdown for unit maintenance;
- Current date/time.

Alarm Protections:
- Overspeed
- Under-speed
- Low oil pressure
- High water temperature
- High oil temperature
- High cylinder temperature
- High box temperature
- Low fuel level
- Low engine oil level
- External instant alarm
- D+ open circuit
- Loss of speed signal
- Sensor open circuit
- Overclocking
- Underfrequency
- Power generation overvoltage
- Power generation undervoltage
- Overcurrent
- Current imbalance
- Over power
- Power generation lack phase
- Power generation failed to switch in
- Power generation failed to switch out
- Electric supply failed to switch out
- Electric supply failed to switch in
- Maintenance due
- Low water level alarm
- Emergency stop
- Start failed
- Battery overvoltage
- Battery undervoltage
- The charger fails to charge

Specifications:
- Working voltage: DC8V to 36V continuous power supply
- Machine power consumption: Standby: 24V: MAX. 1W; Working: 24V: MAX. 5W
- AC voltage input:
* One phase and two wires, 30VAC-276VAC (ph-N)
* Two-phase three-wire, 30VAC-276VAC (ph-N)
* Three-phase four-wire, 30VAC-276VAC (ph-N)
- Engine speed signal range: 200-10000Hz
- Maximum cumulative running time: 99999.9 hours (minimum storage time 6 minutes)
- Fuel output: 16Amp DC + VE supply voltage output
- Motor output: 16Amp DC + VE supply voltage output
- Configurable relay 1: 5Amp DC + VE supply voltage output
- Configurable relay 2: 5Amp passive contact, one normally open and one normally closed output
- Configurable relay 3: 5Amp passive contact normally open output
- Configurable relay 4: 5Amp passive contact normally open output
- Excitation output: Maximum 1Amp DC + VE supply voltage output
- Switch input: Effective when connected to battery negative
- Working conditions: -20 to 65℃/-68℉ to 149℉
- Storage conditions: -40 to 85℃/-104℉ to 185℉
- Protection level: IP54, when a waterproof ring is installed before the controller and the control panel
- Dimensions: 210 x 160 x 50mm/8.3 x 6.3 x 2"
- Hole spacing: 186 x 142mm/7.3 x 5.6"
- Product weight: 0.85Kg/1.9LB

Package Included:
- 1 x Set of Genset Controller

Note:
- Battery is not included in the package.
