Description:
- This series controller is specialized for Diesel / Gasoline / Gas
Genset Start, Stop, Parameters monitoring, faults-checking as well as
data setting.

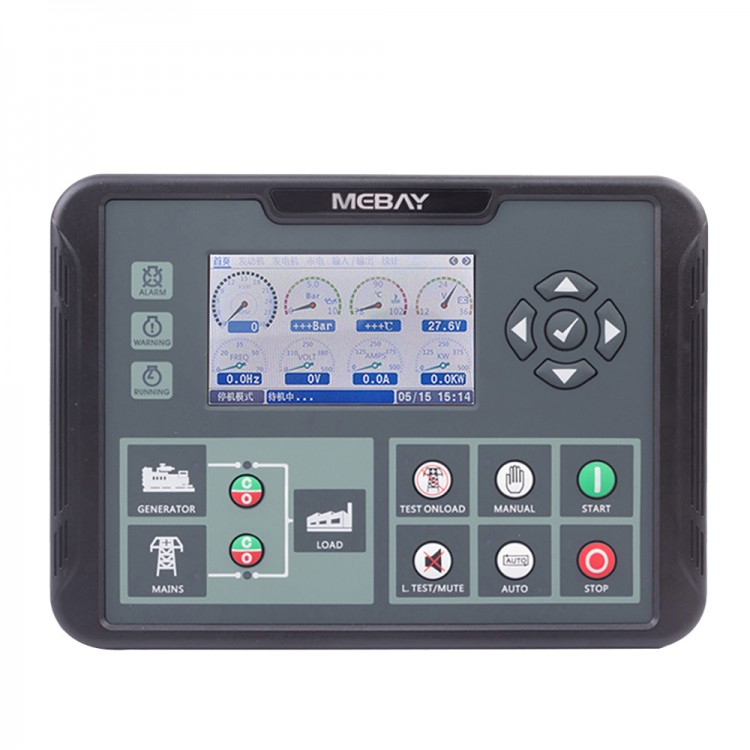

4.3inch colorful LCD screen display with brand new UI
design is adapted in this controller that the relative failures can be
displayed directly. All the parameters can be displayed by simulated
indicators and words. Besides, LCD screen can display variousfaults in
the same time that the genset will be stopped once it can’t work
smoothly.
- There are Simplified Chinese, Traditional Chinese,
English, Spanish, Russian interface options, more language can be set
according to user’s request. All the parameters can be configured
through the front face buttons or use programmable interface by RS485 or
USB to adjust via PC. It can be widely applied for all kinds of auto
control system of gensets.
DC8XD SeriesDifference:
DC80D MK II: used for single machine automation. Start/Stop through remote start signal.
DC82D MK II: Based on DC80D MK II, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset.
DC80DR MK II: Based on DC80D MK II, it adds RS485 port.
DC82DR MK II: Based on DC82D MK II, it adds RS485 port.
Specification:
- Working voltage
- DC8V----36V Continuous
- Power consumption
- Standby：24V：MAX 1W
- Working：24V：MAX 5W
- AC Voltage Input:1P2W 30VAC-276VAC(ph-N), 2P3W 30VAC-276VAC(ph-N), 3P4W 30VAC-276VAC(ph-N)
- Rotate speed sensor Frequency
- 200-10000Hz
- MAX Accumulating Time
- 99999.9Hours（Min Store time:6min）
- Working condition:-20-65℃
- Storage condition:-40-85℃
- Protection Level: IP54：when waterproof rubber gasket is added between controller and its panel
- Overall dimension:241mm*177mm*45mm
- Panel cutout: 220mm*160mm
AC voltage input:
1 phase 2 wire: 20VAC-276VAC(ph-N)
2 phase 3 wire: 20VAC-276VAC(ph-N)
3Phase 4 wire: 20VAC-276VAC(ph-N)
