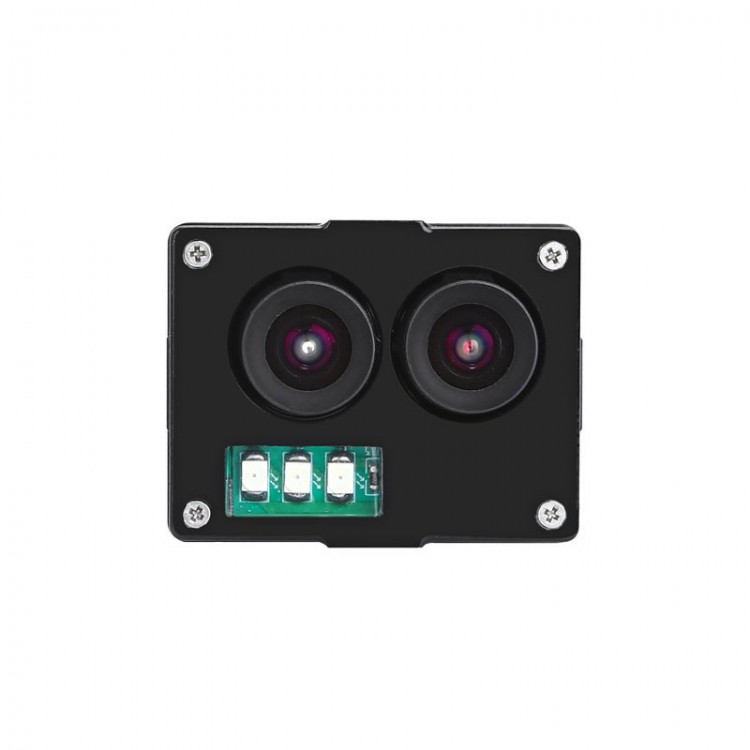

DCAM-S01 2MP Binocular Camera Module USB WDR HD Infrared Camera 1080P For Face Recognition Bio-assay

DCAM-S01 2MP Binocular Camera Module USB WDR HD Infrared Camera 1080P For Face Recognition Bio-assay

Attention:
According to application scenarios and functional goals of the camera, it is necessary to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate DSP chip, sensor and lens. Therefore, the camera usually needs to be customized. This product is only for customer testing DEMO. Please tell us what product do you want the camera to be used for? What function does it achieve? What are the special requirements? We will help you choose the DPS+sensor+ lens solution according to the cost target and other comprehensive factors, and then design the product PCBA according to the structural requirements.

Features:
1. Using Micron AR0230 + OV2710 sensor, suitable for shooting in multiple environments
2. Imported 850 infrared LEDs are used, and the infrared effect has passed the banking system certification

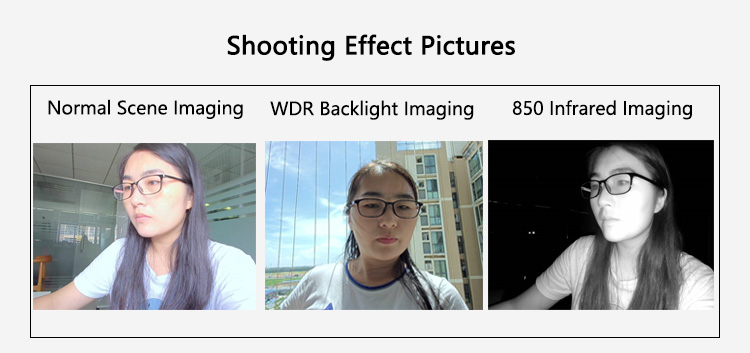

3. WDR image is clear, the noise is small, and the face recognition is high
4. This version is a stable version for mass production, which can be customized according to your needs

Advantages:
- Strong adaptability: Infrared night vision. Can catch dynamic expressions, recognize face and makeup changes
- Strong anti-counterfeiting: for bio-assay, completely eliminate photo and video attacks
- Wide applicability: widely used in the fields of face payment, security inspection, etc.

Specifications:
- Model: DCAM-S01

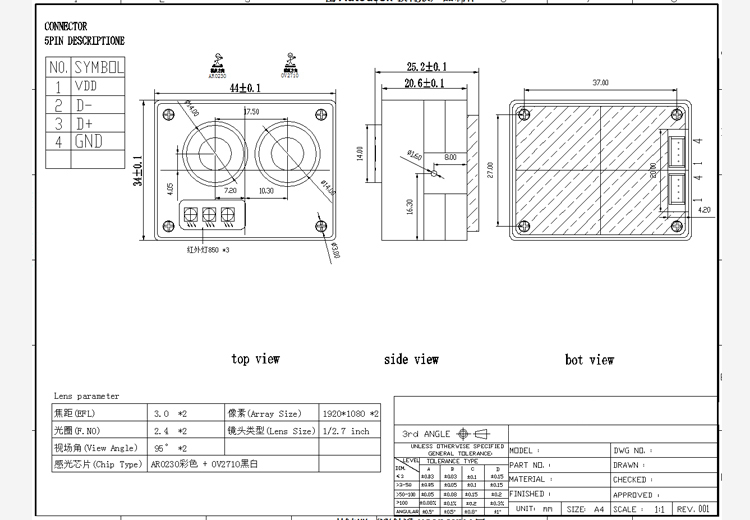

- Module Size: 44 x 34 x 26mm/1.7 x 1.3 x 1"
- Operation Temperature: -20℃ to 70℃
- Temperature (Stable Image): -10℃ to 60℃
- Object distance: 10CM-Infinity/3.9"-Infinity
- Resolution: 1100LW/PH (Center)
- Interface: USB2.0 and 1.1
- Operating system: for Win 2000, Win XP, Win 7, Win 8, Win 10, Linux, Android
- Package: Anti-electrostatic tray
- Working current: <450mA
- Sleep model current: <50mA
- Sensor Type: AR0230 + OV2710
- Active Array Size: 1920*1080
- Dark Current: 896mV/s at 60℃
- Sensitivity: 4.0V/(lux·s)
- Pixel size: 3.0um*3.0um
- Maximum Image Transfer Rate: 1920*1080, 1280*720, 800*600, 640*480 and lower: 30fps
- S/N Ratio (maximum): 41db
- Dynamic range: Up to 105db at 8X gain
- Output Format: YUY2 MJPG
- Fixed Pattern Noise: <0.03%

Package Included:
- 1 x 95-Degree Lens Camera Module
- 2 x 5PIN USB Data Cables 1.5M/4.9FT

Note:
- It can be matched with desktop stand, special case needs to be customized in advance, please contact customer service for details.
- The camera only has the image acquisition function and does not have the recognition function itself. It needs to cooperate with face recognition algorithm to realize the face recognition function! We only provide the camera, and does not provide the face recognition algorithm.
- If you want to change the lens or the cables' length, please contact customer service.
