DCDZ NCB00 Carrier Board Kit Base Board Self-Developed Small Size For Jetson NANO DIY Robots
Description:
It is a self-made carrier board for Jetson NANO.
New original function. USB-OTG and MicroUSB can not only connect to PC to flash, but also connect keyboard and mouse and other devices through OTG cable. This function is not even supported by the development board.
Performance:
- Compatible with development board for Jetson NANO (above version B01). The system can be used directly without modification
- Default setting: automatic power-on (optional power-on via button, please contact customer service or leave a message when purchasing), power-on sequence control, support automatic shutdown and sleep functions
- 5pcs CSI2 interfaces, all CSI signals. When used with NCB-6CAM board, it supports up to 6pcs cameras. The interfaces are compatible with XCB-Lite at the bottom of TX2. Theoretically all CSI2 video collection modules of XCB-lite can be used
- One USB type C interface. Can be converted to standard USB3.0
- One USB2.0 lead out seat
- One MicroUSB interface, supporting USB-OTG (exclusive function)
- Onboard IMU. Compatible with official ISAAC intelligent robot platform for NV (optional)
- PCIe expansion interface, used to connect miniPCIe and M.2 expansion board
- Onboard 2k bits EEPROM
- Fan interface
- 3pcs physical buttons, switch button, reset button, and refresh button
- 3pcs UART interfaces
- FPC network port socket compatible with XCB-Lite at the bottom of TX2
- One MicroHDMI interface
- One programmable red LED and one green LEDs
- 6pcs GPIO interfaces
- One SPI expansion interface
- One TF/MircoSD card socket
- Onboard core board fixing screws
- Size: 87 x 50 x 15mm/3.4 x 2 x 0.6"
- Net Weight: 30g/0.07 lb
- Working temperature: industrial grade -40℃ to 85℃

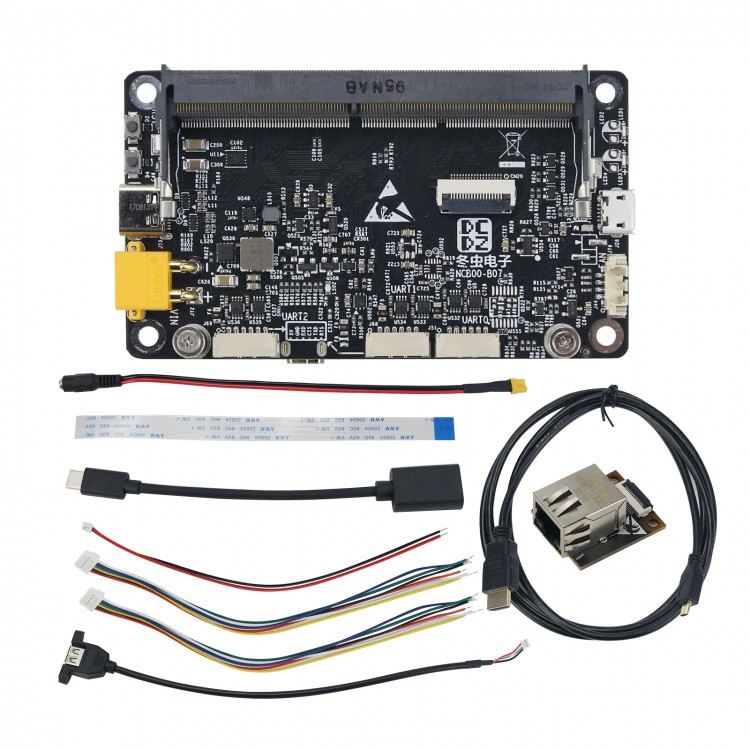

Package Included:
- 1 x Carrier board for NCB00 NANO
- 1 x Ethernet port expansion board
- 1 x DC5.5X2.1 to XT30 power cord
- 1 x USB type C to USB 3.0 type A cable
- 1 x NCB00 USB 2.0 leading out cable
- 1 x NCB00 UART cable
- 1 x MicroHDMI to standard HDMI cable
Note:
- Battery is not included in the package. It is designed with standard XT30 battery interface, with power supply range 6~26V, supporting 2S~6S batteries. It can also be powered through MicroUSB interface (optional).
