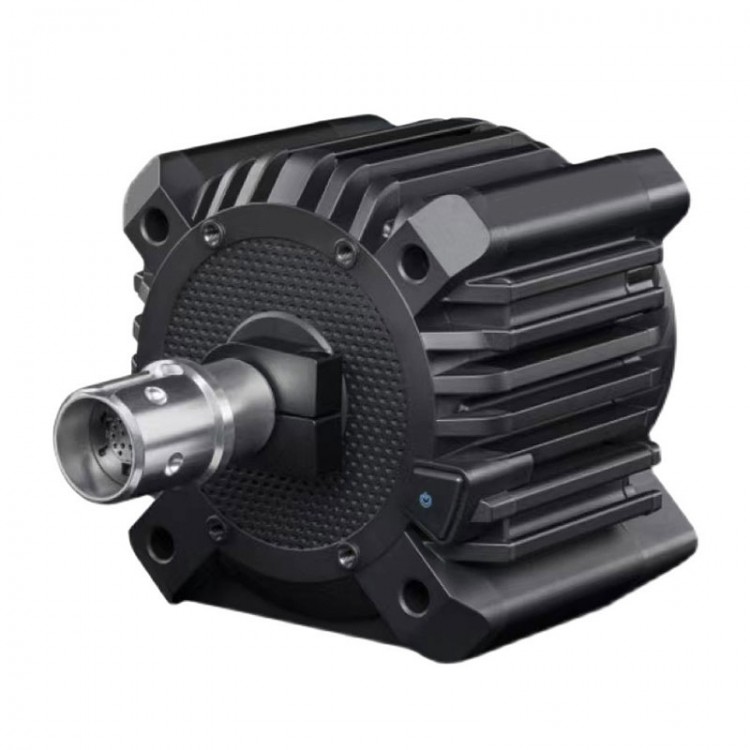

DD Pro 8NM Wheel Base SIM Racing Direct Drive Wheel Base for FANATEC Gran Truismo

DD Pro 8NM Wheel Base SIM Racing Direct Drive Wheel Base for FANATEC Gran Truismo

Description:
Feel everything.
Introducing the official Direct Drive Wheel Base for Gran Turismo. Combining console performance (for PlayStation 5) with Direct Drive technology (for FANATEC) for the smoothest and most dynamic force feedback sensations.

Technology revolution.
In 2001, breakthrough force feedback technology was introduced to that for PlayStation. Developed simultaneously with the CSL DD, it is once again a wheel base for Gran Turismo which introduces next-generation force-feedback technology to the mass market: Direct Drive.

Once you feel it, there's no going back.
When the steering wheel is directly mounted to the motor shaft, there's no belt or gear drive to dilute the force feedback effects. Direct Drive is the clear choice of all professional drivers and enthusiast sim racers, and it's now available to a broader audience.

Maximum strength.
The DD Pro Wheel Base package includes the Boost Kit 180, a powerful 180W power supply that unlocks the full performance of the direct drive motor.

8Nm peak torque.
Using the included Boost Kit 180, the DD Pro Wheel Base operates in its 8Nm mode. This provides much stronger feedback, and as a result, you’ll feel the subtle cues more clearly too.

Small size. Huge performance.
This high level of torque can be sustained without the need for active cooling, with the extruded and CNC-machined aluminium casing acting as the structural chassis as well as the heat-sink.

Torque to the hands.
The 100% custom motor was developed in Germany specifically for sim racing. It delivers sensational performance thanks to patented technology for FluxBarrier, communicating the nuances of force feedback detail to your hands with remarkable clarity.

Efficient and responsive.
Patented technology for FluxBarrier means incredible force-feedback performance is contained in a small footprint. Low rotational mass of the internal components, including a carbon fibre-reinforced steering axis, results in optimal responsiveness and acceleration.

Advanced filters.
Enjoy balanced force feedback with the Standard Tuning Menu without worrying about settings. The Advanced Tuning Menu unlocks all the filters, so you can fine-tune the strength, smoothness, and mechanical feel of the force feedback, even while driving.

Features:
- The official Direct Drive Wheel Base for Gran Turismo
- Boost Kit 180 (included) unlocks maximum strength (8Nm peak torque)
- Officially licensed for PlayStation 5 consoles and PlayStation 4 consoles
- Direct-Drive system delivers instant, detailed force feedback
- Linear, consistent performance
- Patented, exclusive technology for FluxBarrier optimizes motor efficiency and smoothness
- Full SDK for Fanatec support ensures compatibility out of the box for all major racing games
- Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
- Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
- High-resolution (contactless) Hall-position-sensor, same as Podium Series
- Steering axis made from carbon fibre-enhanced composite
- Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
- Rotation: 2520 degrees (electronically limited, adjustable)
- Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between steering wheel and wheel base
- Automotive-grade quick release, exchangeable
- Compatible with entire ecosystem for Fanatec (see Compatibility section for details)
- T-nut rail system on sides and bottom for easily adjustable hard-mounting
- Optional table clamp (sold separately), supports 5-60mm/0.2-2.4" table thickness
- Ports: Power supply; USB-C to console / PC; Shifter 1; Shifter 2 (Sequential only); Pedals; Handbrake
- Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit

Compatibility:
1. Peripherals
The DD Pro Wheel Base is compatible with:
- For All Fanatec Podium Steering Wheels
- For All Fanatec ClubSport Steering Wheels
- For All Fanatec CSL Steering Wheels
- For All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
- For All Fanatec Shifters
- For Fanatec ClubSport Handbrake
- Boost Kit 180
- For All Fanatec Cockpits
- CSL DD Table Clamp
- ClubSport Table Clamp V2
- Podium Mounting Brackets (the DD Pro Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)

Attention:
Please note: Compatibility with all peripherals is tested by the company for Fanatec.

2. Platforms:
- This product is compatible with all consoles for PlayStation 4 and PlayStation 5.
- This product is compatible with PC on all major racing games.
- Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.

Attention:
Please note: PC and other platform compatibility is tested by the company for Fanatec.

Special Note:
- Not suitable for children. A Direct Drive Wheel Base is not a toy! The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.

Package Included:
- 1 x DD Pro direct drive wheel base
- 1 x Boost Kit 180 power supply (regional)
- 4 x T-nuts for rail mount system
- 1 x Set of button caps for PlayStation
- 1 x USB cable (Type-C to Type-A)
- 1 x Quick Guide
