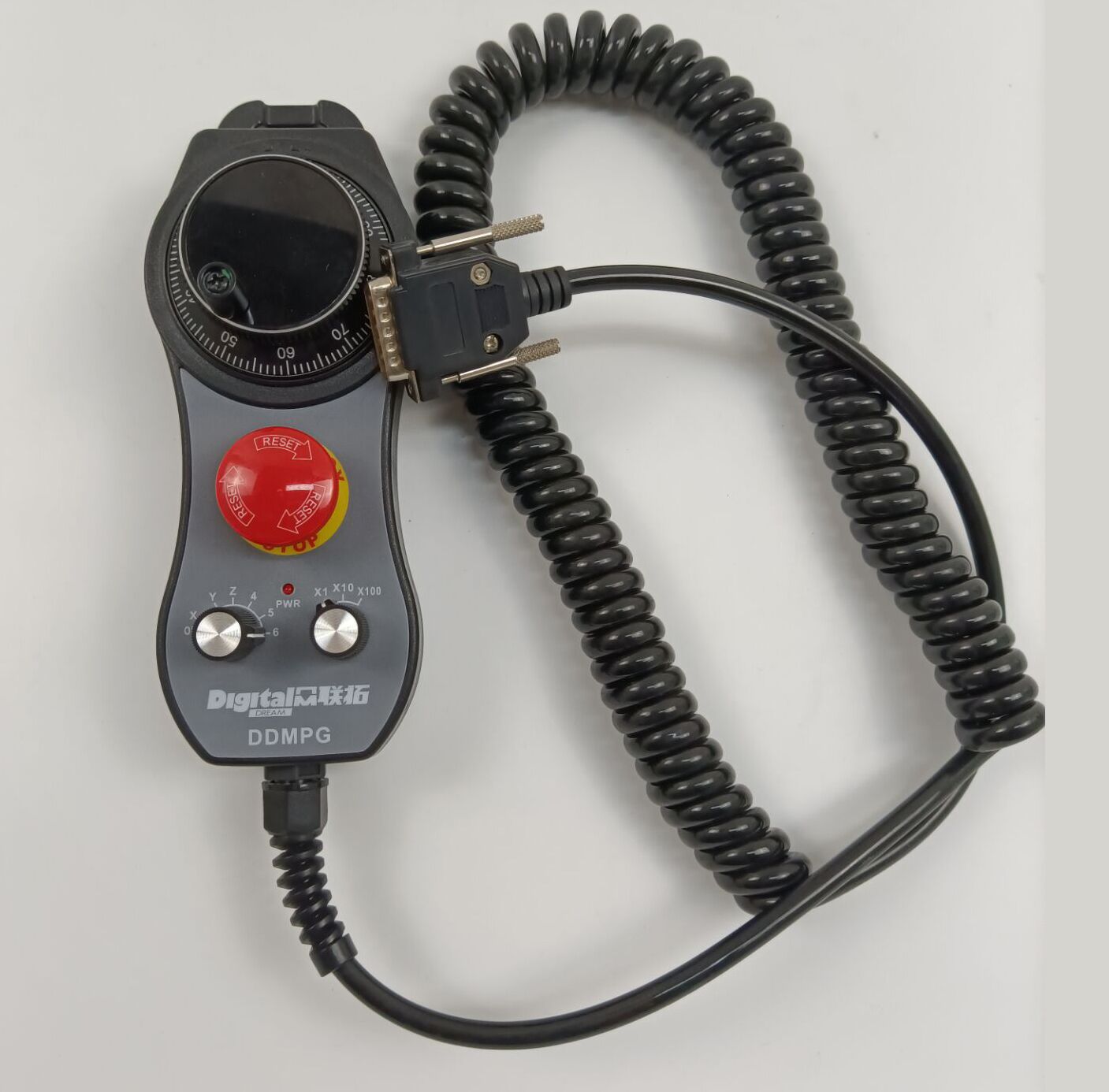

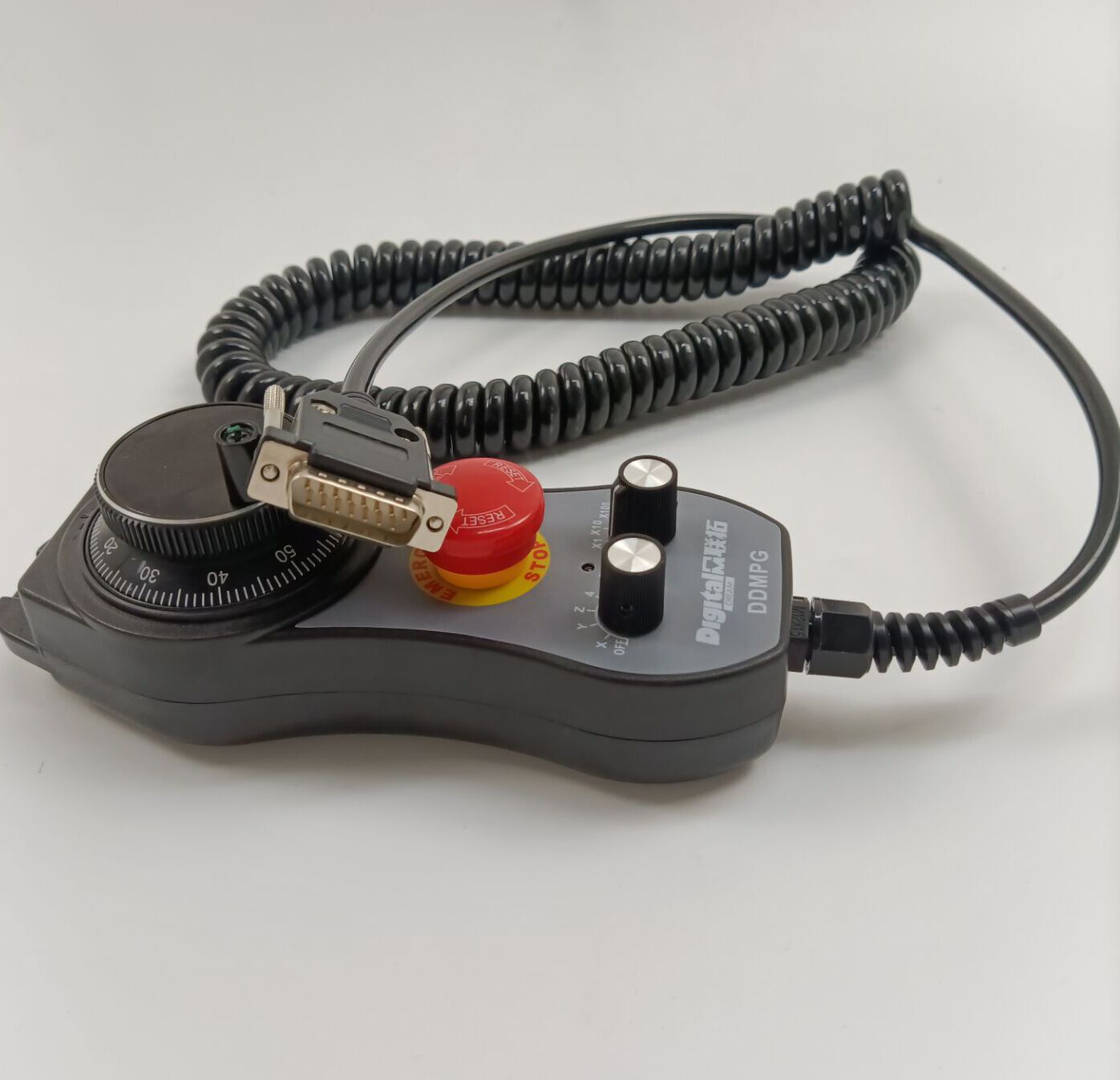

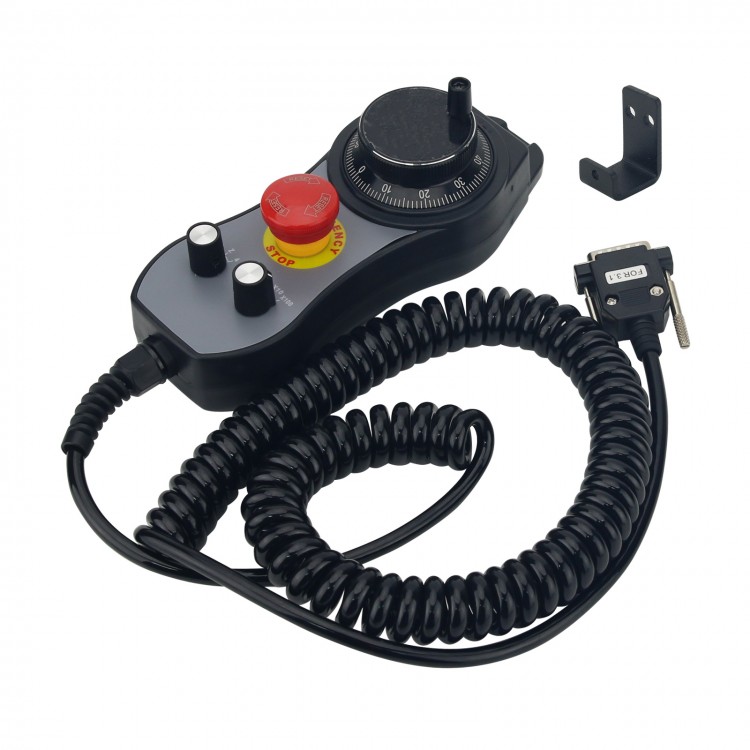

DDCS 3.1Version Rotary Encoder Handwheel CNC Manual Pulse Generator DDMPG support MPG
Specification:
- Model Number: DDMPG
- Place of Origin: China
- Application: MILLING MACHINE
- Usage: position sensor
- Theory: Resistance Sensor
- Output: Digital Sensor
- Dimension (L x W x H): 11 x 11 x 26 (cm)
- Weight:1kg
Parameter:
- 16 optocoupler isolated digital input interfaces, 3 optocoupler isolated digital input outlets.
- The new version strengthens the algorithm, supports flexible circular interpolation, and corrects the shortcomings of circular interpolation commands in the old version.
- 1 channel 0-10V spindle speed regulation analog output interface (can be modified to PWM output).
- 3-4 axis pulse direction adopts differential output with maximum interpolation pulse output frequency of 500hz.
- ARM9 main control chip FPGA core algorithm chip.
- 5inches Tt screen resolution: 480x272, 17 operation keys.
- The main control equipment is 24VDC power input, and the current capacity is required to be no less than 0.5A.
- Io port power input is also 24VDC, and the current capacity is required to be no less than 0.5A; All I ports do not need to be configured with external power supply, such as relay connection.
- Support U disk to read G instructions, and there is no requirement for G instruction file size;
- Support standard MPG.
- Support panel keys single axis manual inching, linkage and fixed distance operation.
- Support the operation of quickly specifying the running position.
- Support multi coordinate system (automatic saving in case of power failure).
- It has breakpoint memory and power failure automatic protection function.
- Support the function of saving breakpoints (press the Pause key during operation to save automatically when power is off).
- The controller only supports NPN limit switch.
- The new version adopts a sheet metal shell, which has an atmospheric appearance and better anti-interference ability.
Package Included:
- 1 x DDMPG Manual Pulse Generator
