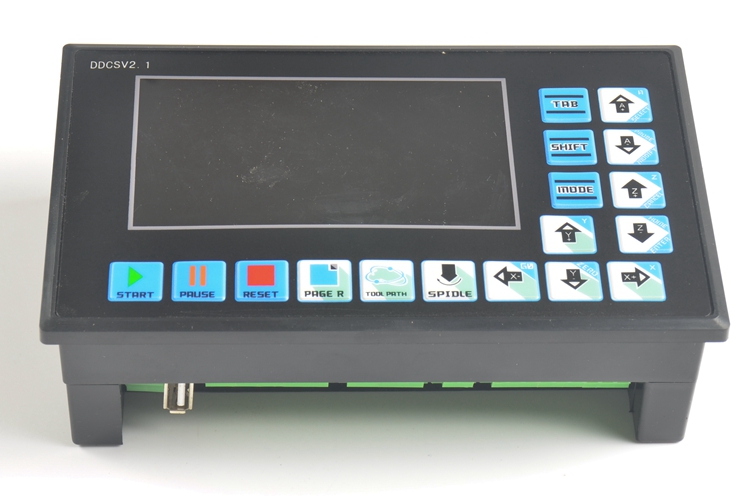

DDCSV2.1 CNC 4-Axis Motion Controller Stepper Motor Driver + Standard Handwheel MPG Emergency Stop

DDCSV2.1 CNC 4-Axis Motion Controller Stepper Motor Driver + Standard Handwheel MPG Emergency Stop

Description:
- DDCSV1 is the 4 axis 4 linkage motion controller which is developed through 4 years of research and development; each position control cycle 4 ms, high control precision. The highest single output pulse is 500KHz, and the pulse width is adjustable. Support common stepper motor and servo motor.

- DDCSV1 numerical control system uses ARM+FPGA design framework, ARM to complete the man-machine interface and code analysis, FPGA complete the underlying algorithm and control pulse generation part. Reasonable design, reliable control, convenient operation.

- DDCSV1 panel layout is reasonable, the 17 key to complete common offline operation, support for the general purpose of FANUC G compatible.

- This manual introduces the operation method of the DDCSV1, the machine tool and the operation procedure of the machine tool. Through a large number of illustrations and examples of the use of the DDCSV1 can learn to use the faster the CNC system.

Features:
- 1. Offline system, no computer, no other control equipment
- 2. Simultaneously control the operation of 4 stepping motors

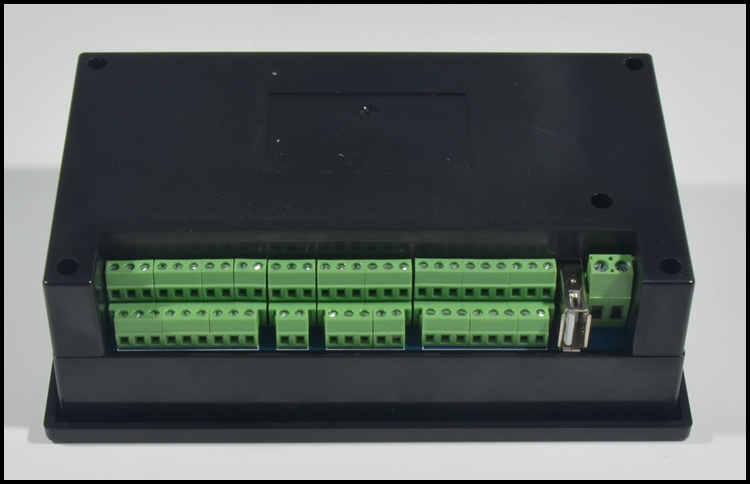

- 3. With 15 input interfaces, including limit emergency stop and other functions.
- 4. With 4 programmable output interfaces, including water cooled, fog cooled and other controlled peripherals.
- 5. Spindle speed adjustment VSO mode (0-10V) dual mode.
- 6. Independent design system software.
- 7. USB interface, support for common U disk system.
- 8. DCDC electrical isolation
- 9. Power supply requirements: 18-32VDC1A DC power supply
- 10. Up to 500K stepper motor control pulse output, suitable for most machine system needs.
- 11. Support for standard MPG.
- 12. Support standard G code system.
- 13. Embedded housing design for easy installation on any cabinet panel.
- 14. Integrated power supply stabilization system can resist electromagnetic interference of general spindle motor.
- 15. High-speed output interface chip that provides sufficient current and pulse frequency signal output.
- 16. Industrial-grade master chip to improve system stability.
- 17. Support breakpoint saving. Save power at any time. It can save the breakpoint, can continue processing after restarting
- 18. Support automatic tool setting, convenient and fast
- 19. Online reading technology, support for large-capacity U disk, support for large G code files, files of any size, can be read in seconds.

The revision is as follows:
- 1: The input signal is modified to support the NPN type proximity switch;
- 2: Support limit and common input (HOME) input port;
- 3: Replaced the more stable FLASH to ensure that there is no program loss problem;
- 4: Upgrade algorithm, support soft interpolation, and fix the circular interpolation bug in V1.1 version;
- 5: The power module is upgraded and the system runs more stably.

Application:
- It is used to process various patterns and colorful molds such as embossing board, sole mold, button mold, zipper mold, pattern text stamping and bronzing mold, instrument mold, glass mold and so on.

- Used in advertising industry such as: brand, signage, architectural model, badge, badge, nameplate, display board, monogram, house number, signage, craft decoration, furniture decoration, etc.

- It is used for portraits, portraits, calligraphy, seals and other art-like plane sculptures, inscriptions, embossed outlines, relief sculptures, etc. With CNC controller, it is suitable for all kinds of small and medium-sized automation equipment and instruments.

Package Included:
- 1 x 4-Axis CNC Motion controller

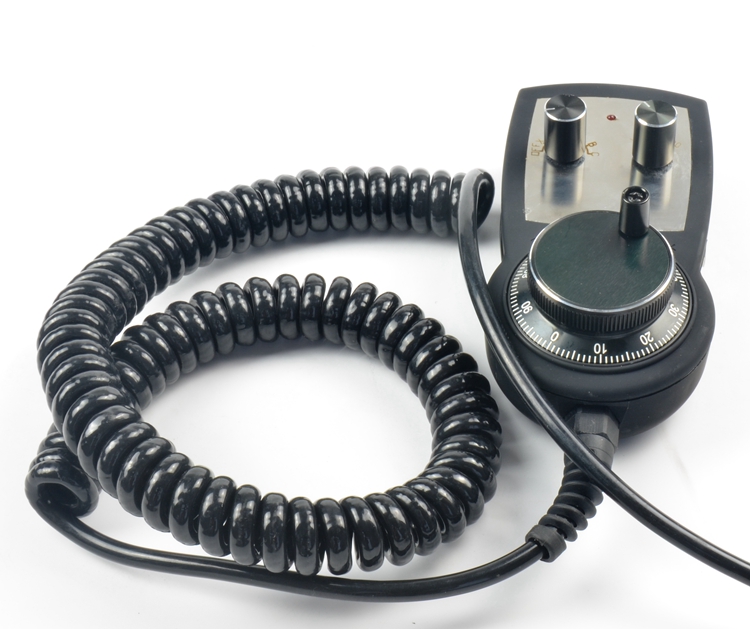

- 1 x Electronic CNC Handwheel
- 1 x 8GB USB Flash drive
- 1 x USB Extension Cable
