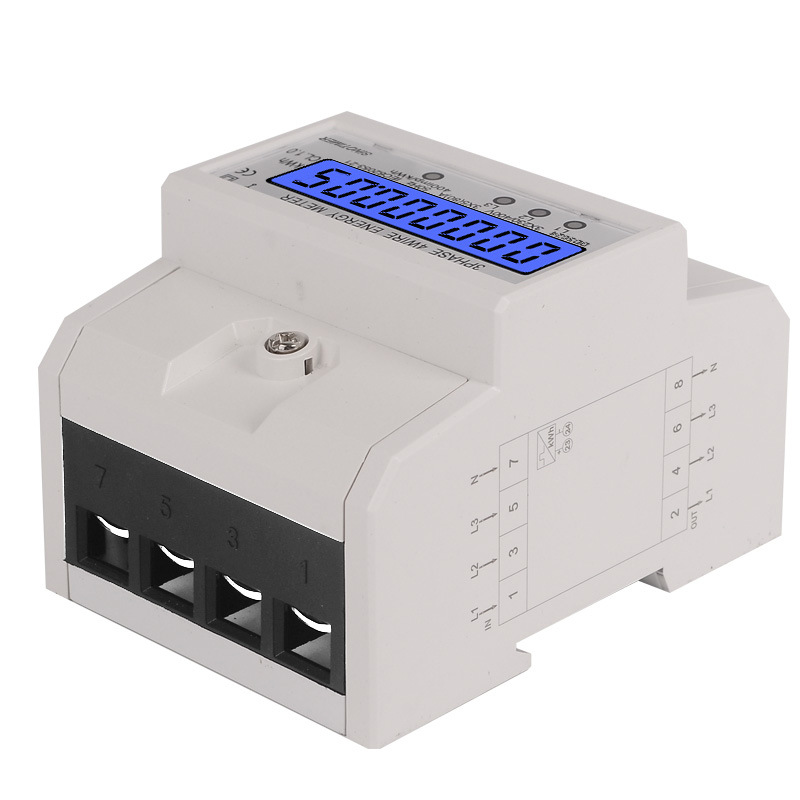

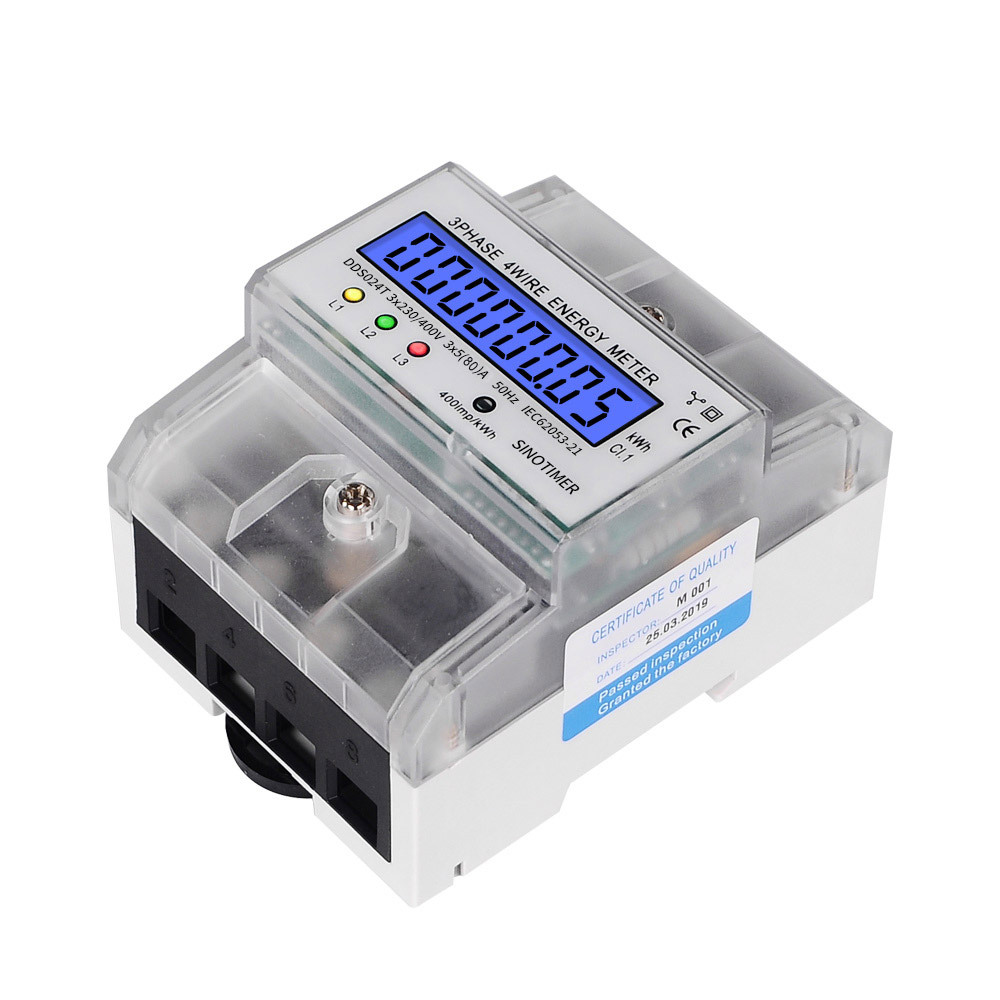

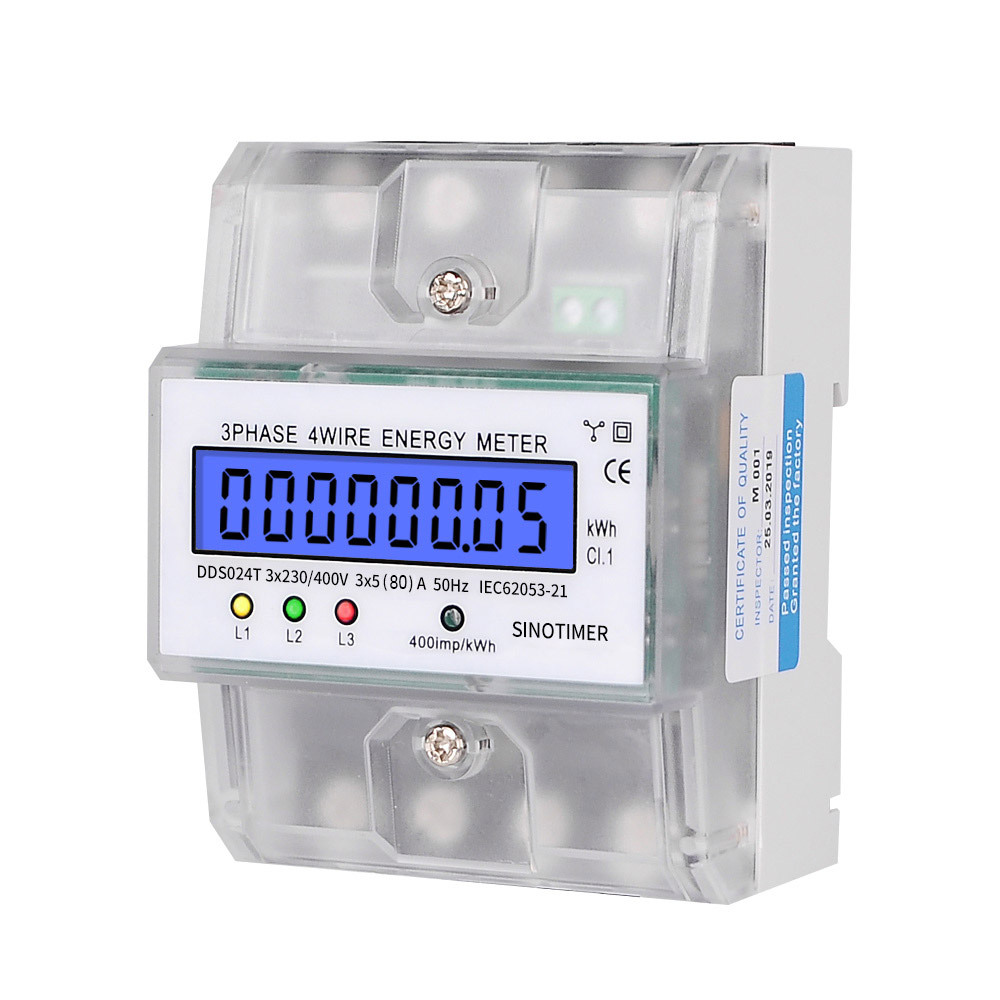

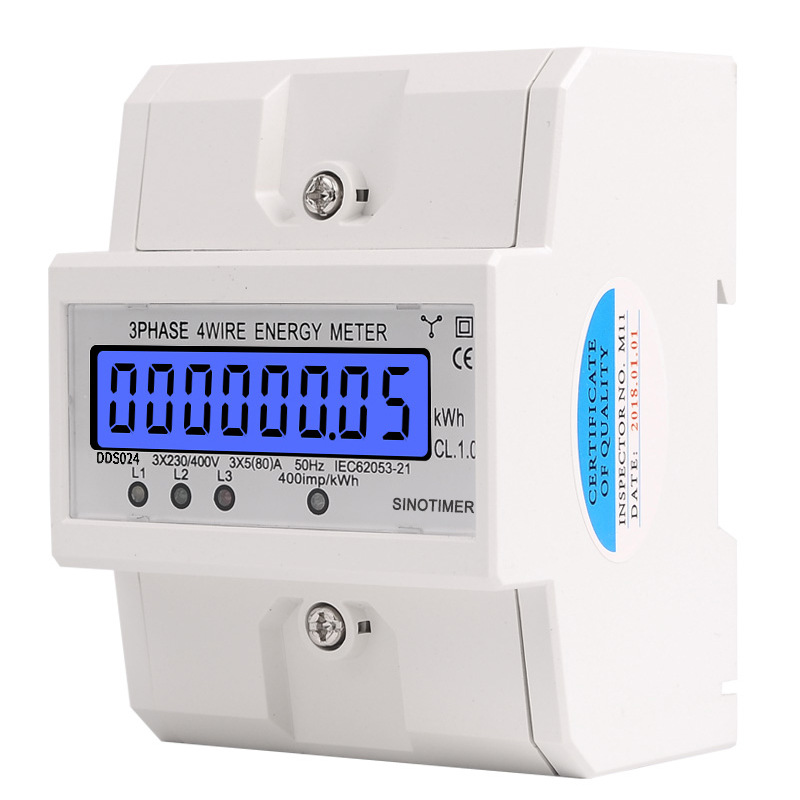

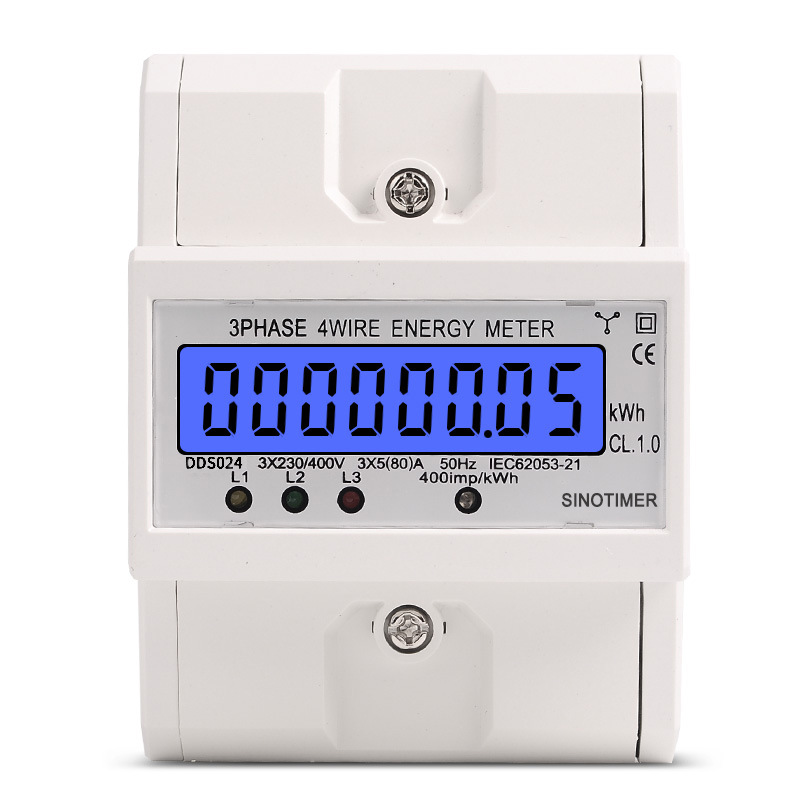

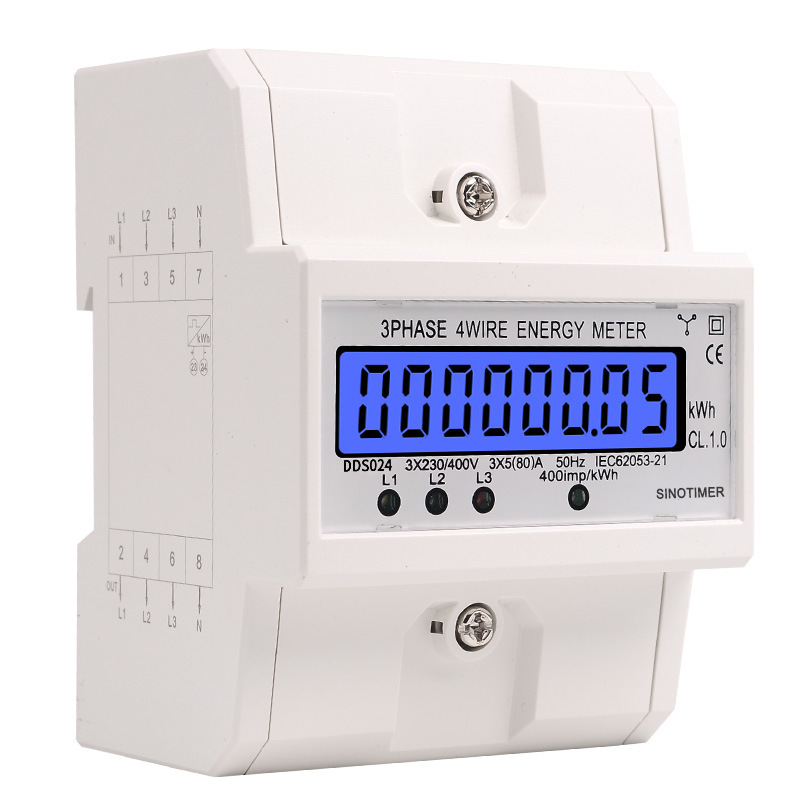

DDS024 Din Rail 3 Phase 4 Wire Electronic Power Consumption Energy Meter Wattmeter LCD Backlight Display

DDS024 Din Rail 3 Phase 4 Wire Electronic Power Consumption Energy Meter Wattmeter LCD Backlight Display

Features:

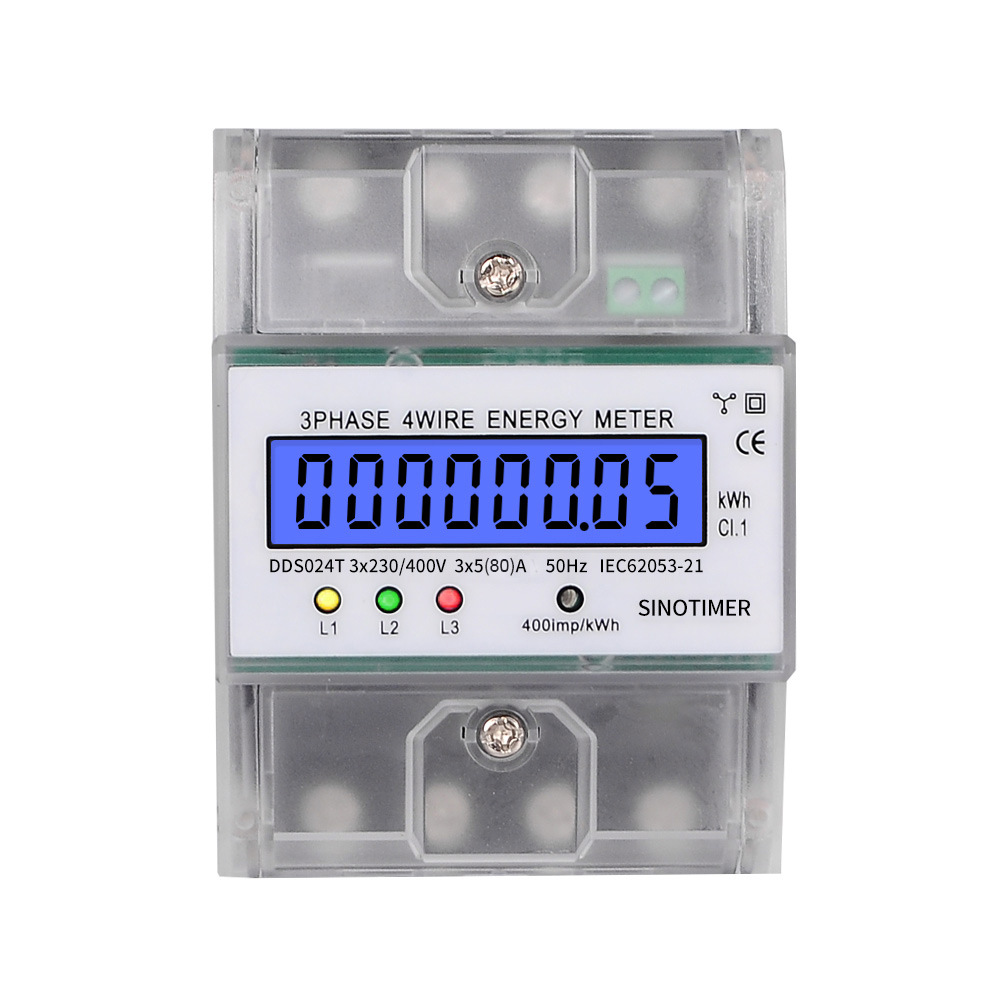

- 6+2 digits LCD display shows the total power consumption.

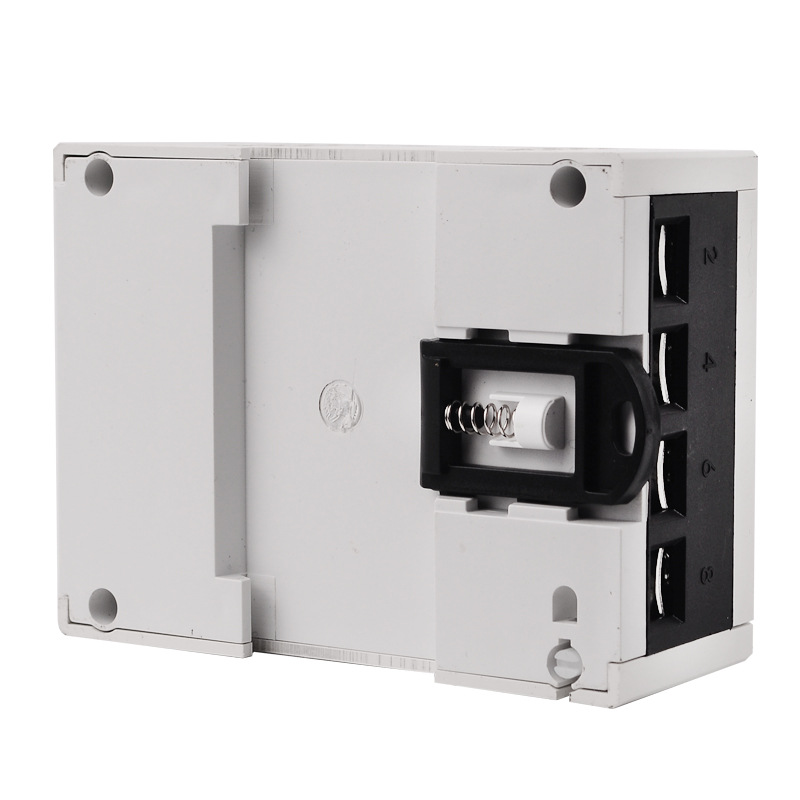

- It features high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mmDIN standard guide rail installation, etc.
- It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti-electricity-stolen and long life.
- This table is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase ac active electricity, used for fixed installation indoors, apply to the environment temperature is -25 °C ~ 55 °C, relative humidity is ≤ 95%, and in the air does not contain corrosive gases and avoid dust, mold, salt fog, condensation, insects, etc.

Parameters:
- Materiel: Metal + ABS
- Reference Voltage: 3 X 220/380(V), 3 X 230/400(V)
- Reference Current: 3 X 5(80A)
- Accuracy Level: 1.0
- Rated Frequency: 50Hz
- Constant Pulse: 400imp / kWh
- Display: LCD 6 + 2
- Power Consumption: ≤2W, 10VA
- Starting Current: 0.004Ib
- Operating Temperature: -20 ~ 55°
- Storage Temperature: 25 ~ 70°
- Operating Voltage: 0.9-1.1 Rated Voltage
- Utmost Voltage: 0.8-1.15 Rated Voltage
- Average Humidity Value of Year: ≤75%

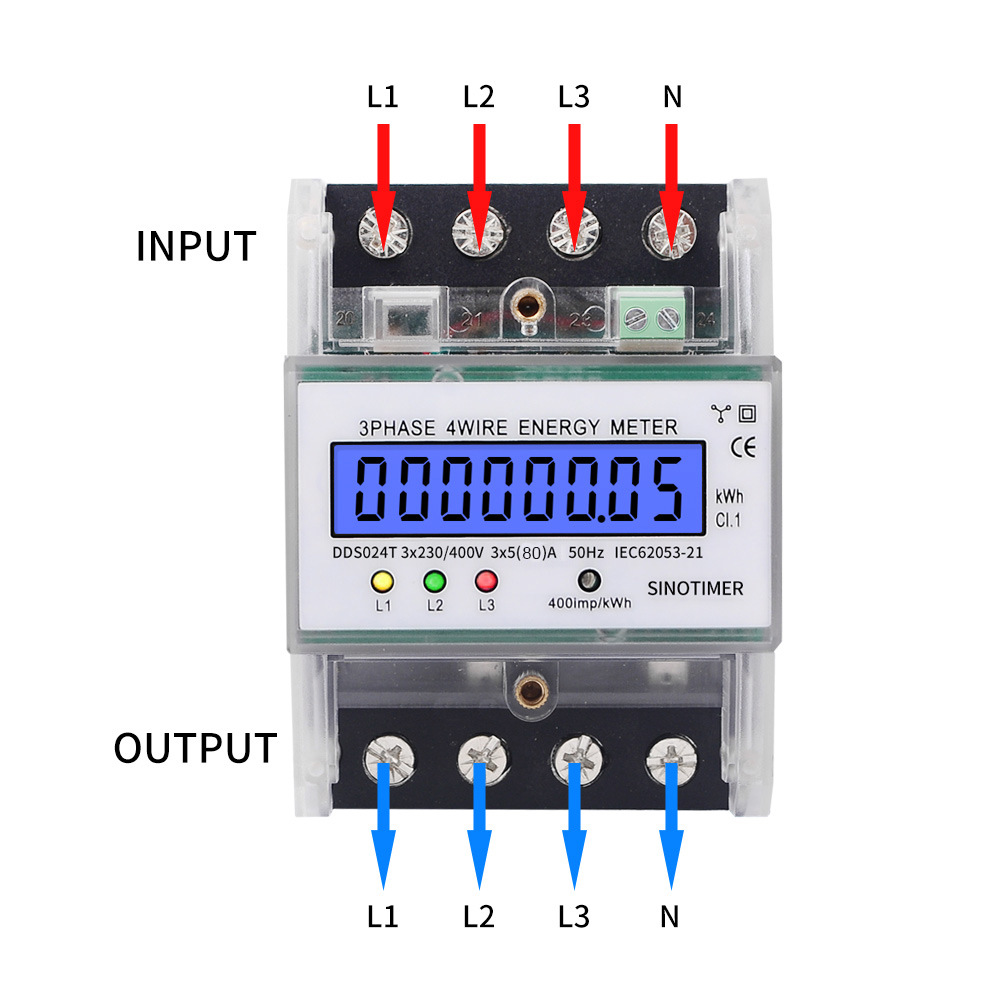

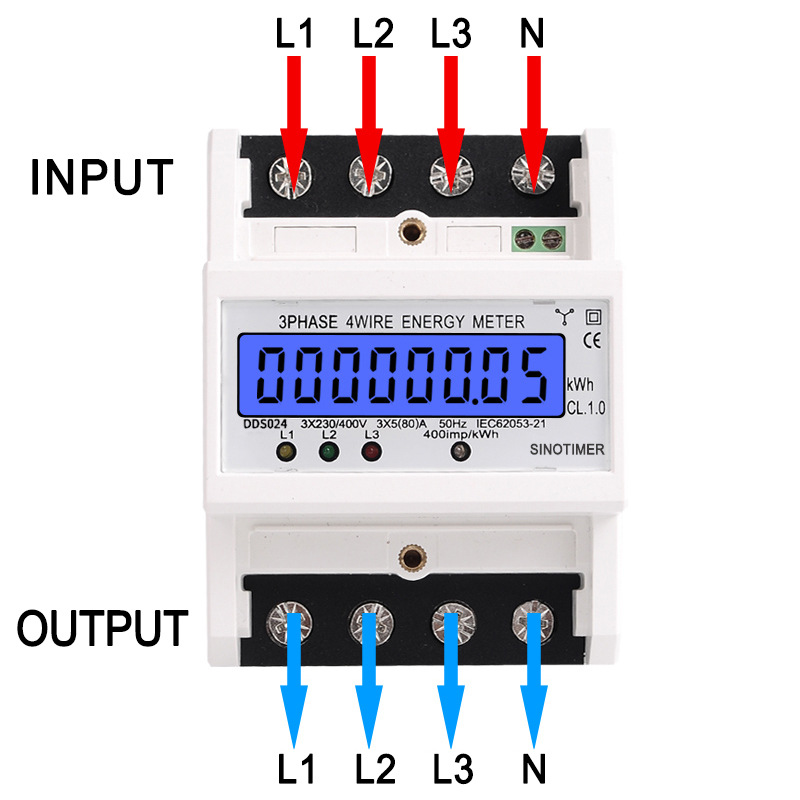

- Type: Three Phase Four Wire Electronic Type
- Size: Approx. 10.1 X 7.6 X 6.5cm / 3.97 X 2.99 X 2.55in
- Weight: 400g
- Model Number: DDS024
- Accuracy Class: 1

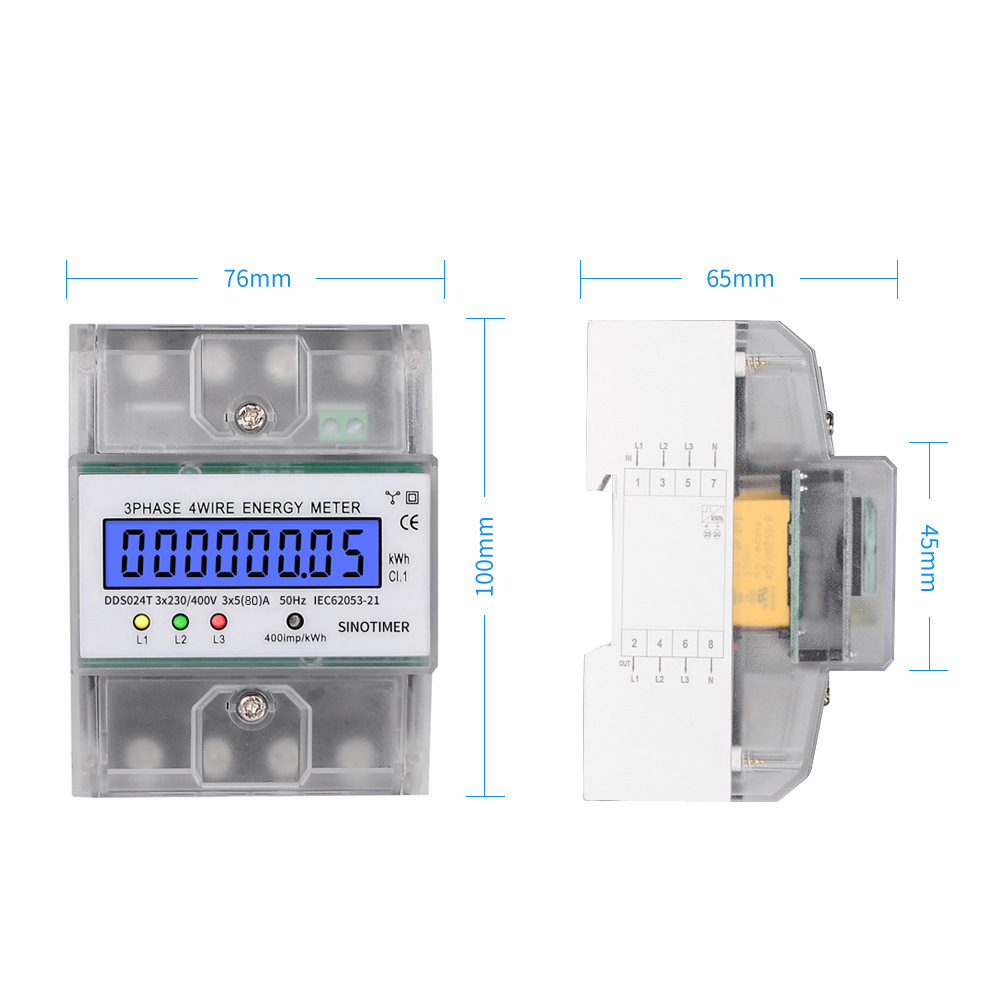

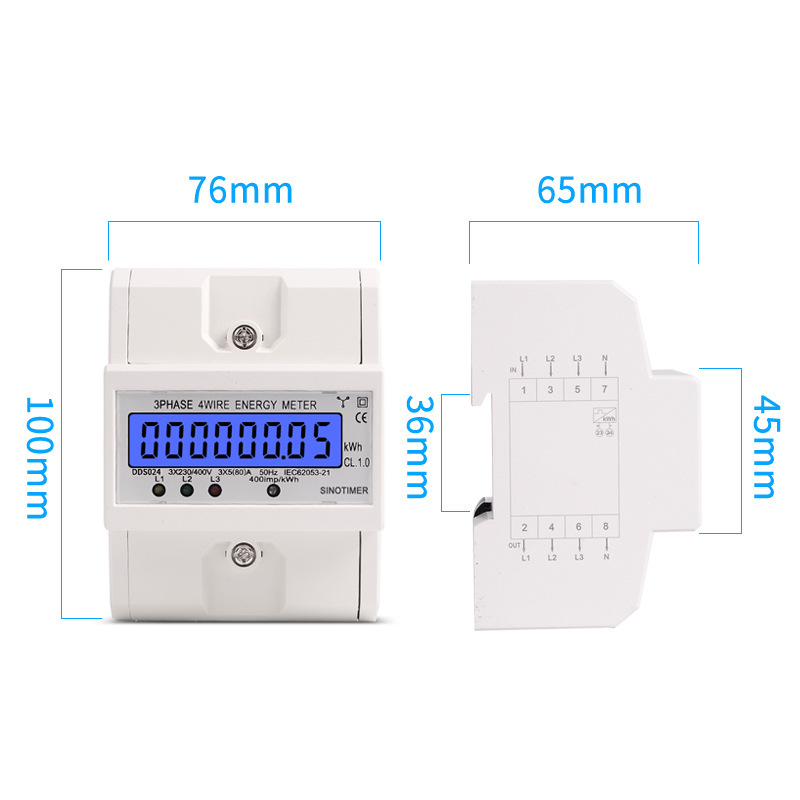

- Dimensions: 100mm x 76 x 65mm
- Display Type: LCD
- Max Operating Current: 80A
- Measuring Energy Range:0.0-999999.9kwh
- Operating Temperature: normal
- Power Supply: ac
- Output Voltage:380v ac
- Rated Voltage:380v ac
- Phase: Three phase

Package included:
- 1 x Energy meter DDS024
