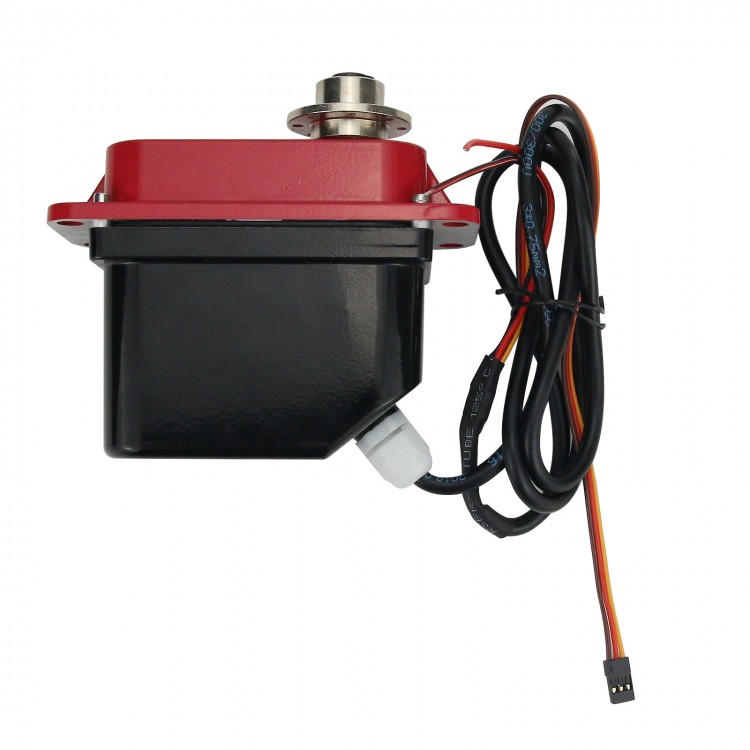

DDTS380 400KG/CM Large Servo 24V Power Supply Precision Servo High Torque For Industrial Area FPV

DDTS380 400KG/CM Large Servo 24V Power Supply Precision Servo High Torque For Industrial Area FPV

Attention:
- Before loading, please adjust angle without load first, mechanical jam will cause gear damage.
- Please test various application scenarios by yourself, and use them after passing the tests. For various dangerous application scenarios, we are not responsible for accidents in various application scenarios!
- Battery is not included.

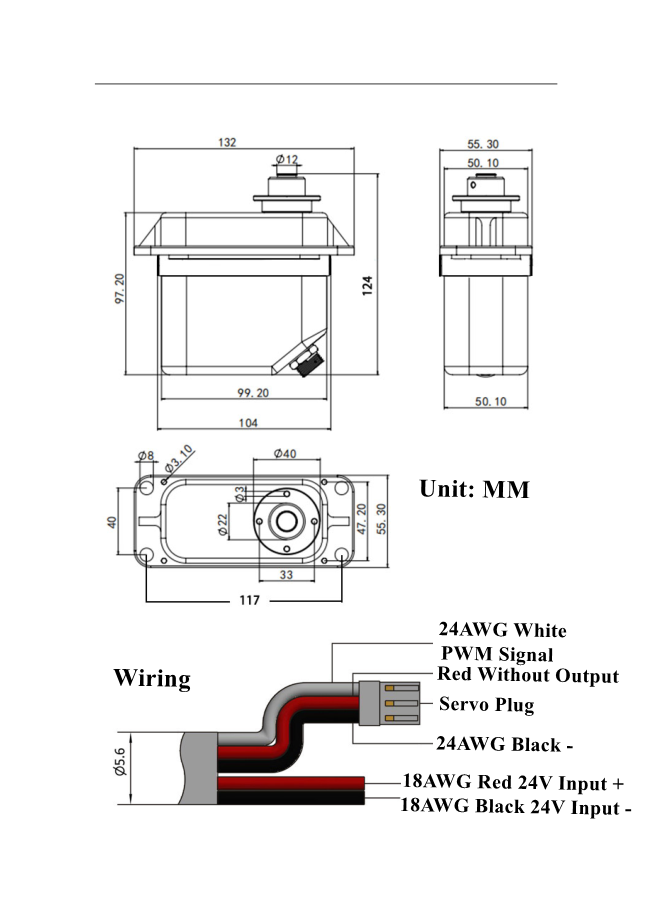

Wiring Video:
https://v.youku.com/v_show/id_XNDg1NzA3MDEwOA==.html

Video For Demo:
https://v.youku.com/v_show/id_XNDUyNjE3OTE4NA==.html?spm=a2h3j.8428770.3416059.1

Description:
1. The size of this servo is exactly the same as that for Seiko servo, and the weight is slightly heavier because all gears are steel ones (while servo for Seiko uses plastic gears, so it is a little lighter). Users using servo for Seiko can directly replace and use our servo. We have improved the internal structure.
2. For the control and drive circuit hardware of servo, we use current mainstream components, with faster calculation speed and smaller size. Increased the reliability when the servo is locked.
3. The driving and control software of servo was written by our own engineers in half a year, and PID algorithm was added.
4. The mechanical part of servo is also different from servo for Japan's Seiko, the gear of servo for Seiko is a composite structure of copper and plastic. We use steel gears, so the weight is slightly heavier, 880g.
5. In response to the slow speed of servo for Seiko that users have been criticizing, we have found a professional motor factory to support the production, using high-temperature enameled wire, imported electric brushes and commutators to improve motor's anti-overload ability and after many times experiments, we have optimized the efficiency and speed of the motor to make it react faster.
6. IP67, and the low temperature resistance of lubricating oil used in the gearbox reaches -30℃.

Features:
* Applicable to servo controllers, model airplane remote controllers
* Alloy gear high torque motor
* Ultra-lightweight aluminum alloy gearbox
* Easy to install, durable, reliable, stable and practical to use

Applications:
* Large robots, mechanical arm power joints
* Industrial robot automation
* Precise control of valve angle
* Large camera PTZ
* Large remote-control car models, remote control ship models

Technical Parameters:
- Rated voltage: DC 24V (12V-24V can work, 12V torque and speed are halved)
- No-load current: <500MA (load current 5-10A, it is recommended to use 10A or more than 10A switching power supply or battery, the greater the power supply current output capacity, the better)
- Limit angle: 1200-1700US: about 90 degrees; 500-2500US: about 288 degrees (Pulse width determines the angle. If you need other angles, please increase or decrease pulse width by yourself, the maximum is about 288 degrees)
- Control mode: 1.0-2.0 MS pulse: suitable for model airplane remote control receiver control; 0.5-2.5 MS pulse: suitable for multi-channel steering gear controller control (pulse frequency: 50-333HZ)
- Materials: * Gears and shafts: alloy steel, hardened steel, aluminum alloy; * Shell: aluminum alloy
- Servo weight: about 880g
- Speed: 0.5S/60° (equivalent to 20RPM)
- Mechanical life: >300,000 times (370 hours)/(30KG/CM)
- Torque limit: 400KG/CM (Broken gear load, it is not recommended to work at this torque)
- Starting torque: 380KG/CM (short-time work)
- Conventional torque: 140KG/CM (can work for a long time)

Package Included:
- 1 x Set of Servo

Note: Only servo is included. Other items mentioned above are not included, for demonstration purposes only. Thank you for your understanding!
