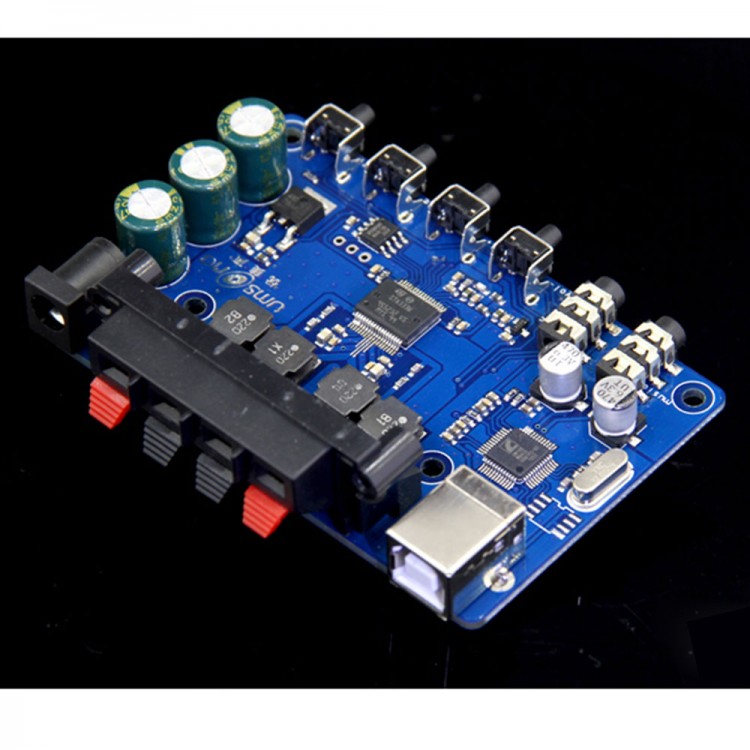

DDX-220 DC5-18V USB Digital HIFI Amplifier Board with USB Sound Card DAC for Audio DIY

Availability: Out Of Stock

  • Price:$24.04
  • Price in reward points: 240 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.56 $23.08 $22.36 $21.40 Contact US
Quantity:

DDX-220 DC5-18V USB Digital HIFI Amplifier Board with USB Sound Card DAC for Audio DIY


Description:

- Adopt CM108 USB decoding output I2S to STA333W for  amplifying. During this process, no OP or coupling capacitance.
- Support 44.1Khz CD quality and 48Khz DVD quality. Can output 2*20W when DC 18V.
- Not support analog audio signal input, but computer USB digital audio inpue.,USB to computer, install CM108 drive is ok.
- For the best audio effect, please use APE lossless audio format.

Specification:
- Supply voltage: DC5-18V (recommended 16V or 2A 18V above power adapter)
- USB audio input: support for CD 48KHz sound quality; 44.1KHz sound quality of DVD
- Output power: 2*20W stereo
- Speaker: 4-8 Europe
- Signal to noise ratio: 100dB

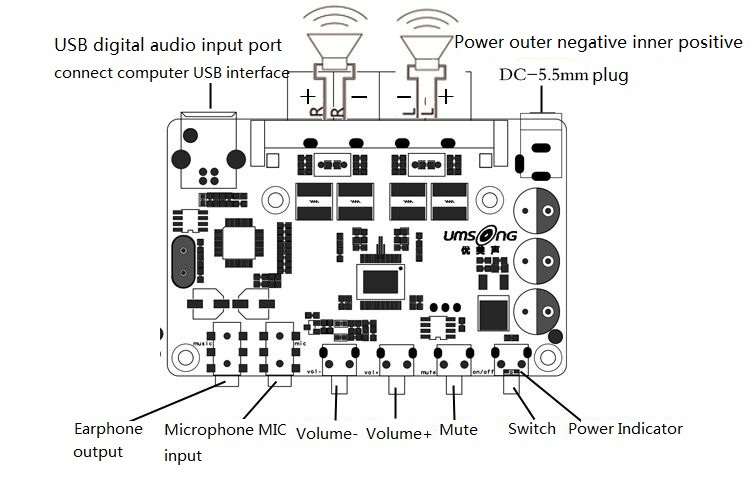

- Audio input output: support for headphone output, microphone MIC input
- Board size: LxWxH: 87x56x22mm
- Board weight: 46g

Package included:
- 1 x Amplifier Board
