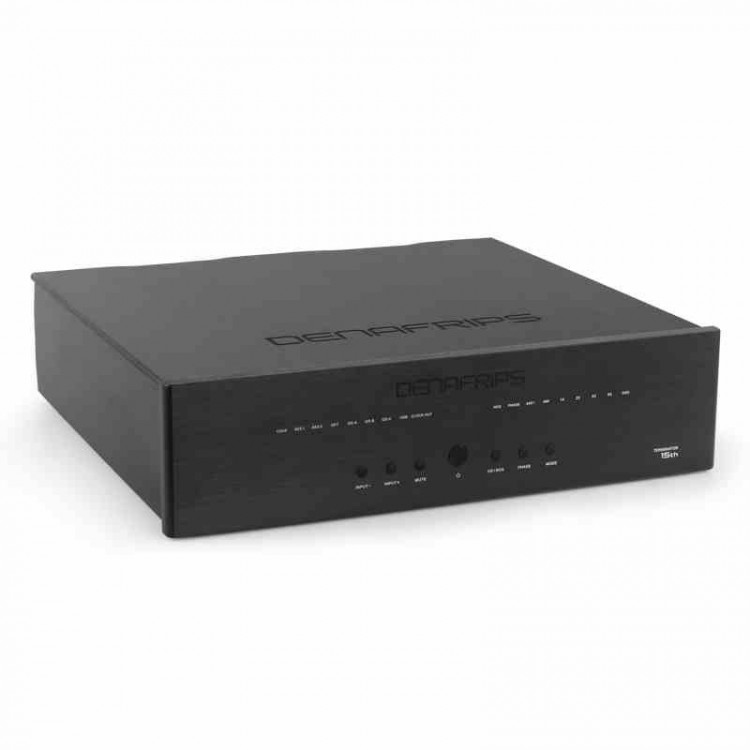

DEAFRIPS Black TERMINATOR 15th Digital Audio Decoder Balanced R2R DAC Support High Precision OCXO Clock Output

Description:

- TERMINATOR 15th is a balanced R2R DAC, equipped with independent high-speed FPGAs for each channel, using 4 sets of 0.005% R2R arrays for D/A conversion. It adopts high-end OCXO and isolated dual power supply system to reduce high-frequency noise and electromagnetic interference, ensuring pure and stable audio signal processing.

Technical Highlights:
- Proprietary R2R + DSD architecture
- True balanced 26bit R2R + 6bit DSD (32 steps FIR filters)
- Matched precision thin film 0.005% R-2R network arrays
- Encapsulated flagship ultra low noise power supply
- High purity gold + silver + copper alloy AC transformers
- High-end oven controlled crystals OCXO
- Adaptive FIFO buffer re-clocking
- Direct digital signal processing FPGA
- DSD1024, PCM1536 supports on USB & I²S input
- Proprietary USB audio solution via STM32F446 advanced AMR based MCU
- Licensed Thesycon USB driver for Windows platform
- Driverless on systems for Mac & Linux
- Dual AES/EBU input supports
- Sharp/slow filters option
- I²S Pin-out configuration
- I²S DSD channel swap configuration

Specification:
DSD:
- DSD64 (DoP) on Coax/AES/Opt input
- DSD1024* on USB & I²S input only

PCM:
- 24bits / 44.1, 48, 88.2, 96, 176.4, 192kHz on all input
- 1536kHz* on USB & I²S input

Sampling Mode: Non-oversampling NOS / oversampling OS

Digital Input:
- Coax via RCA
- TOSLink x 1
- AES/EBU x 2
- USB2.0 Type B
- I²S via HDMI-compatible LVDS
- I²S via RJ45 LVDS
- I²S via RJ45 LVCMOS

Analog Output:
- RCA at 2.0Vrms, 625Ω
- XLR at 4.0Vrms, 1250Ω

Clock Output BNC 75Ω:

- 44.1KHz, 48KHz
- 22.5774MHz, 24.576MHz
- 45.1548MHz, 49.152MHz

General Parameters:
- Frequency Response: 20-40KHz -0.2dB
- THD: 0.05% (RCA), 0.002% (XLR)
- S/N ratio: 110dB (RCA), 120dB (XLR)
- Dynamic range: >132dB
- Stereo crosstalk: ≥-110dB
- AC power requirement: 115V/60Hz, 230V/50Hz (worldwide voltage)
- Power consumption: ≤20W
- Dimension: 433W x 386D x 109H mm (Includes Footers)
- Weight: 16.95kg

I²S FAQ:
- I²S has no industry standard. If you would like to use the I²S connection, the I²S pin-out matching with the source (DDC/Transport/Streamer) has to be configured correctly. Mismatch of I²S pin-out may result in static/noise output. The excessive noise output level may damage the loudspeakers/headphone drivers.

Suggestion of I²S matching with the source, i.e. DDC/Transport/Streamer
1. Connect the I²S cable (good quality HDMI-compatible cable <3ft/1m)
2. Turn down the volume (audible, minimal)
3. Play a familiar music (PCM first, followed by DSD)
4. Run through the I²S setting of the DAC, 000-111
5. One of the modes should match with the source for both PCM and DSD playback.
6. It's recommended to go through the Audio Tone Test to make sure the L/R channel, in phase/out of phase correctness.

Warning:
- Please note that the RJ45/HDMI-compatible ports of DENAFRIPS DAC are not typical network/multimedia RJ45/HDMI-compatible ports. They are purpose-built I²S ports. Please do not connect it to the typical multimedia HDMI-compatible port (i.e. Blu-ray player/TV etc) / Ethernet network.

Package Included:
- 1 x Host
