DEGEN DE1103 PLL Digital AM/FM/LW SSB Shortwave Digital Radio

DEGEN DE1103 PLL Digital AM/FM/LW SSB Shortwave Digital Radio


Features:
- FM band frequency coverage: 76.0MHz to 108.0MHz.
- AM mode (SW, MW, & LW band) frequency coverage: 100KHz to 29999KHz with the 1KHz tuning step.
- SSB reception on the shortwave band with the dedicated fine tuning knob.
- Dual conversion technology used on the AM mode (SW, MW, & LW band) to improve the sensitivity and signal mirror image suppression capability (1st IF = 55.845MHz).
- Noise limited sensitivity: FM band < 10uV, MW band < 1mV/m, SW band < 20uV.
- AM mode (SW, MW, & LW band) narrow / wide bandwidth selectable. AM mode 2nd IF bandwidth: wide < 6KHz, narrow < 4KHz.
- SW band selectivity: > 40dB with wide bandwidth, > 50dB with narrow bandwidth.
- SW meter band definition: 90m (3.160 - 3.455 MHz), 75m (3.860 - 4.055 MHz), 60m (4.710 - 5.105 MHz), 49m (5.910 - 6.255 MHz),41m (7.010 - 7.405 MHz), 31m (9.170 - 9.995 MHz), 25m (11.510 - 12.155 MHz), 22m (13.510 - 13.905 MHz), 19m (15.010 - 15.705 MHz),16m (17.260 - 18.105 MHz), 13m (21.410 - 21.955 MHz), 11m (25.610 - 26.100 MHz).
- Pre-setting 268 stations in the built-in memory.

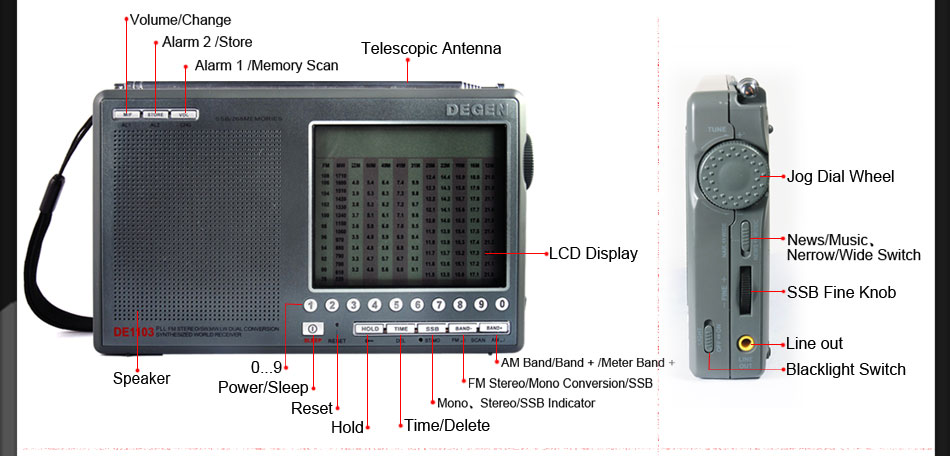

- Multiple tuning mode selectable: jog dial manual tuning, auto scan tuning, memory scan tuning, frequency direct entry tuning.
- FM band tuning step: 25KHz by jog dial manual tuning mode, 100KHz by frequency direct entry tuning mode, and 100KHz by auto scan tuning mode.
- AM mode (SW, MW, & LW band) tuning step: 1KHz by jog dial manual tuning mode, 1KHz by frequency direct entry tuning mode, 1KHz for MW band auto scan tuning mode, and 5KHz for SW band auto scan tuning mode.
- 64 level digital volume control and indication on the LCD.
- Super large size LCD display the frequency, clock time, signal strength, battery level and the volume level.
- Orange color backlight for the LCD illumination, three backlight mode selectable.
- FM-MONO and FM-STEREO selectable.
- Multiple tone mode selectable: news and music.
- Alarm auto power on the radio by the timer pre-setting.
- Sleep auto power off the radio by timer pre-setting from 1 to 99 minutes.

Specifications:

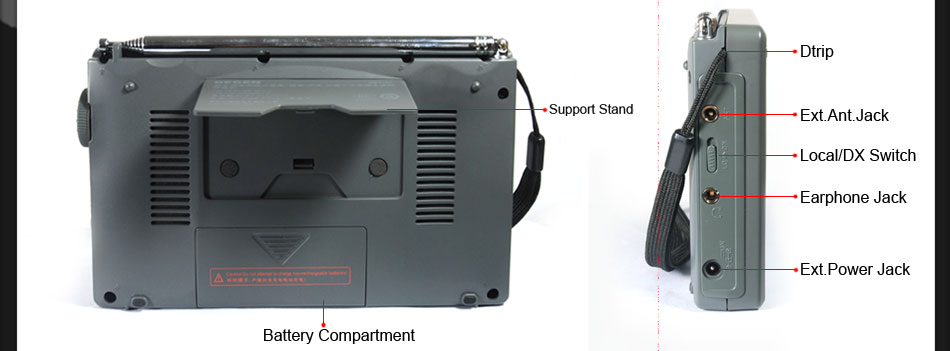

- Keypad lock/unlock function support
- Built-in smart recharge circuit to recharge the Ni-MH rechargeable battery
- Built-in Local/DX switch for the reception in the different signal strength conditions
- Built-in 3.5mm input socket
- Built-in 3.5mm stereo output socket
- Built-in 3.5mm stereo output socket
- Built-in speaker diameter: 77mm
- Power supply: 4pcs AA size 1.2V Ni-MH rechargeable batteries, or 4pcs AA size 1.5V Alkaline batteries, or +8V/300mA DC (center positive)
- Size: 165 x 105 x 29 mm / 6.5 x 4.2 x 1.2 inch
- Weight:300g

Package included:
- 1 x DE1103 Radio
- 1 x Wall AC power adapter (120V/AC input or 230V/AC input)
- 1 x Long wire antenna
- 1 x Velvet carrying pouch
- 1 x Stereo earphone
- 4 x AA size 1.2V Ni-MH rechargeable batteries
- 1 x Wrist carrying strip
- 1 x English User manual
